Power tool safety system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2023
Grant Date -
N/A
app pub date -
Nov 18, 2021
filing date -
Aug 29, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

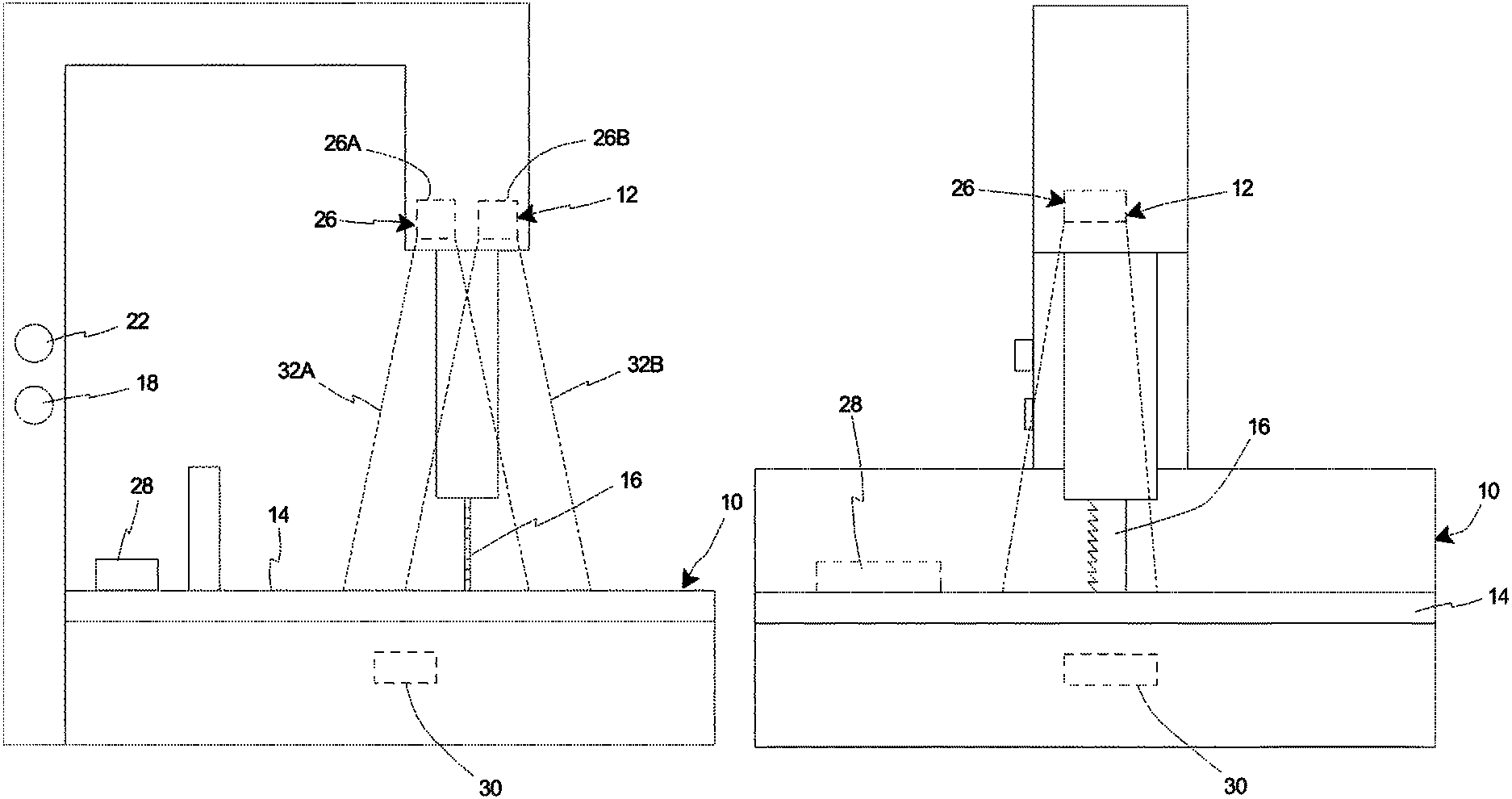

A safety system for use with a power tool that is usable by a user, the power tool including a base and a moving component that is movable relative to the base, includes a sensor assembly and a controller. The sensor assembly monitors a predetermined danger zone that is adjacent to the moving component of the power tool. The sensor assembly is configured to generate data relating to the predetermined danger zone. The controller receives the data from the sensor assembly and analyzes the data from the sensor assembly to determine if at least a portion of a hand of the user is present within the predetermined danger zone. The safety system can further include a wearable component including infrared only reflective material that is coupled to the hand of the user. The controller analyzes the data from the sensor assembly to determine if the wearable component is present within the predetermined danger zone.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B23Q Class
- 536 Applications Filed
- 208 Patents Issued To-Date
- 38.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23Q Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 30, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 30, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2034 |
