Vortex hybrid rocket motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2023
Grant Date -
Apr 16, 2020
app pub date -
Oct 11, 2018
filing date -
Oct 11, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

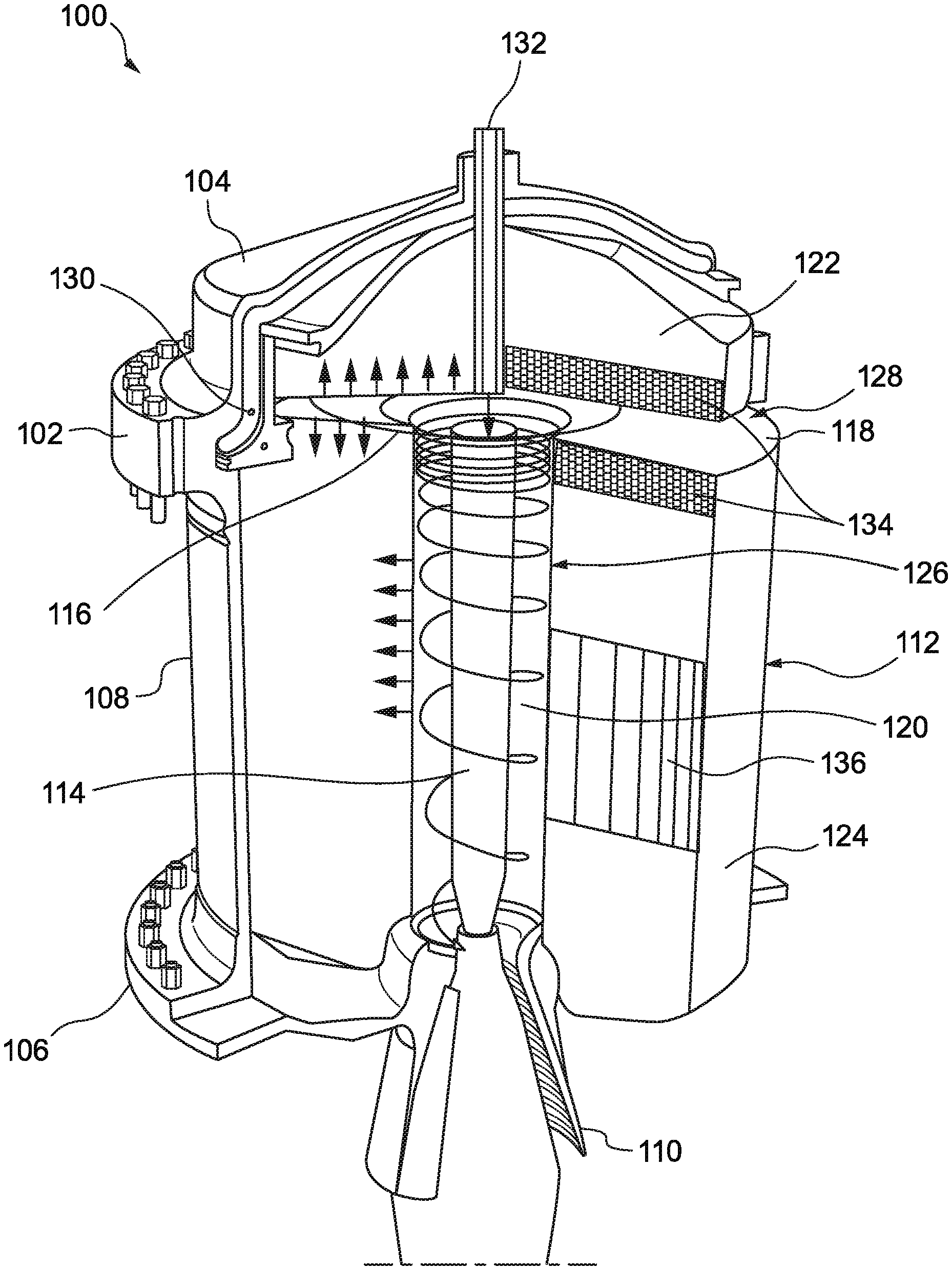

Various embodiments of a vortex hybrid motor are described herein. In some embodiments, the vortex hybrid motor may include a combustion zone defined by a fuel core and/or motor housing. The combustion zone may include an upper zone and a central zone that each contribute to thrust created by the vortex hybrid motor. In some embodiments, an injection port configuration is described that includes a proximal injection port that may be controlled for modulating a delivery of an amount of oxidizer for adjusting an oxidizer-to-fuel ratio. In some embodiments, a fuel core configuration is described that provides radially varying gradients of fuel in order to achieve desired thrust profiles. In some embodiments, the fuel core may include a support structure and/or a proximal end of a nozzle of the vortex hybrid motor may extend into the fuel core.
