Processes, systems, and apparatus for cyclotron production of technetium-99m
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2023
Grant Date -
Oct 28, 2021
app pub date -
Jun 11, 2021
filing date -
Apr 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

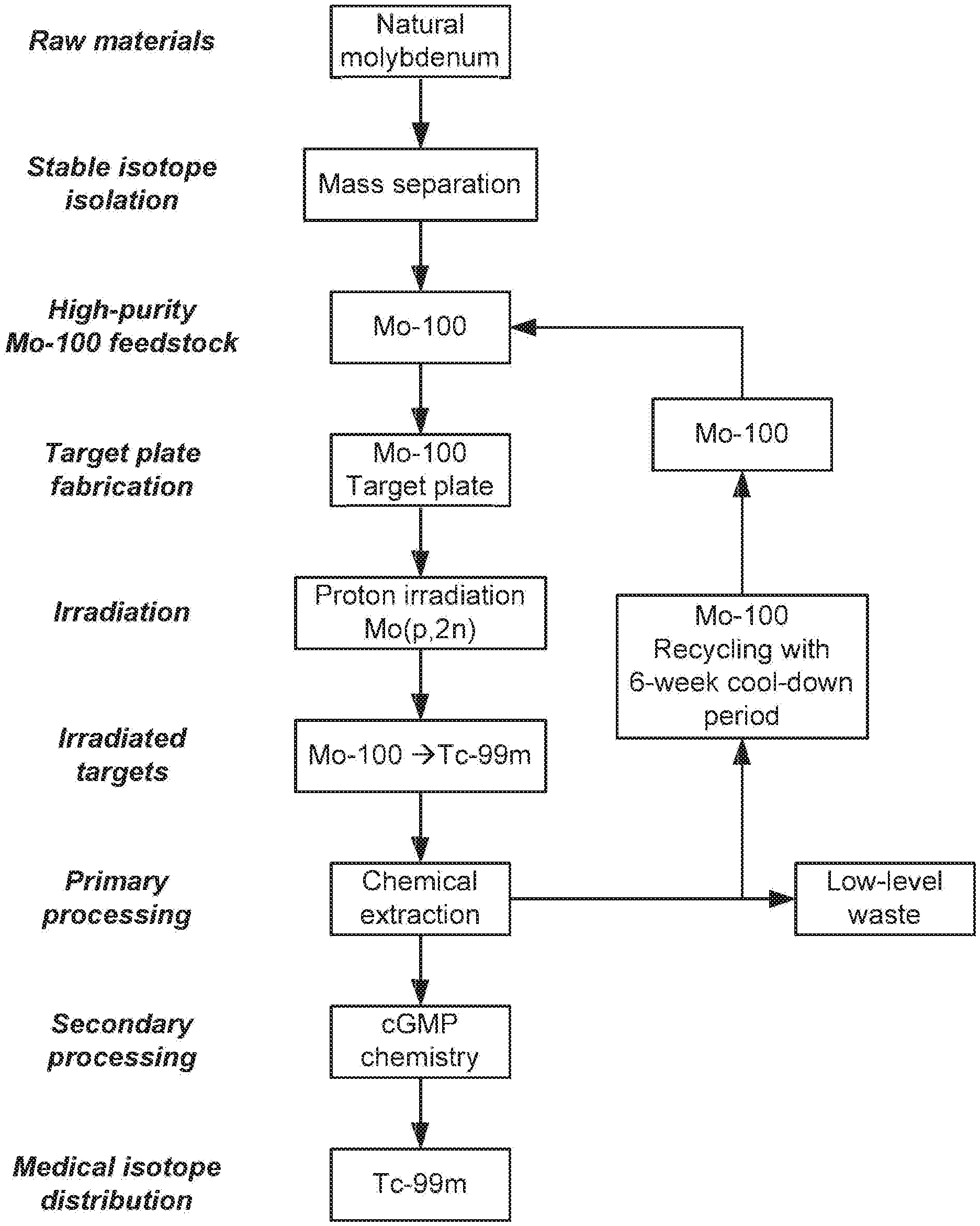

A system for producing technetium-99m from molybdate-100. The system comprises: a target capsule apparatus for housing a Mo-100-coated target plate; a target capsule pickup apparatus for engaging, and delivering the target cell apparatus into a target station apparatus; target station apparatus for receiving and mounting therein the target capsule apparatus. The target station apparatus is engaged with a cyclotron for irradiating the Mo-100-coated target plate with protons. The irradiated target capsule apparatus is transferred to a receiving cell apparatus comprising a dissolution/purification module for receiving therein a proton-irradiated Mo-100-coated target plate. A conveyance conduit infrastructure interconnects: (i) the target capsule pickup apparatus with the target station apparatus, (ii) the target station apparatus and the receiving cell apparatus; and (iii) the receiving cell apparatus and the dissolution/purification module.
First Claim
Other Claims data not available
Family
International Classification(s)
- G21G:CONVERSION OF CHEMICAL ELEMENTS; RADIOACTIVE SOURC....
- C25D:PROCESSES FOR THE ELECTROLYTIC OR ELECTROPHORETIC ....
- G21F:PROTECTION AGAINST X-RADIATION, GAMMA RADIATION, C....
- G21K:TECHNIQUES FOR HANDLING PARTICLES OR ELECTROMAGNET....
- B22F:WORKING METALLIC POWDER; MANUFACTURE OF ARTICLES F....
- H05H:PLASMA TECHNIQUE
- 2021 Application Filing Year
- G21G Class
- 56 Applications Filed
- 25 Patents Issued To-Date
- 44.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G21G Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 30, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 30, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2034 |
