Door lock bolt plate pivot system, and associated structures and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2023
Grant Date -
Aug 20, 2020
app pub date -
May 5, 2020
filing date -
Sep 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

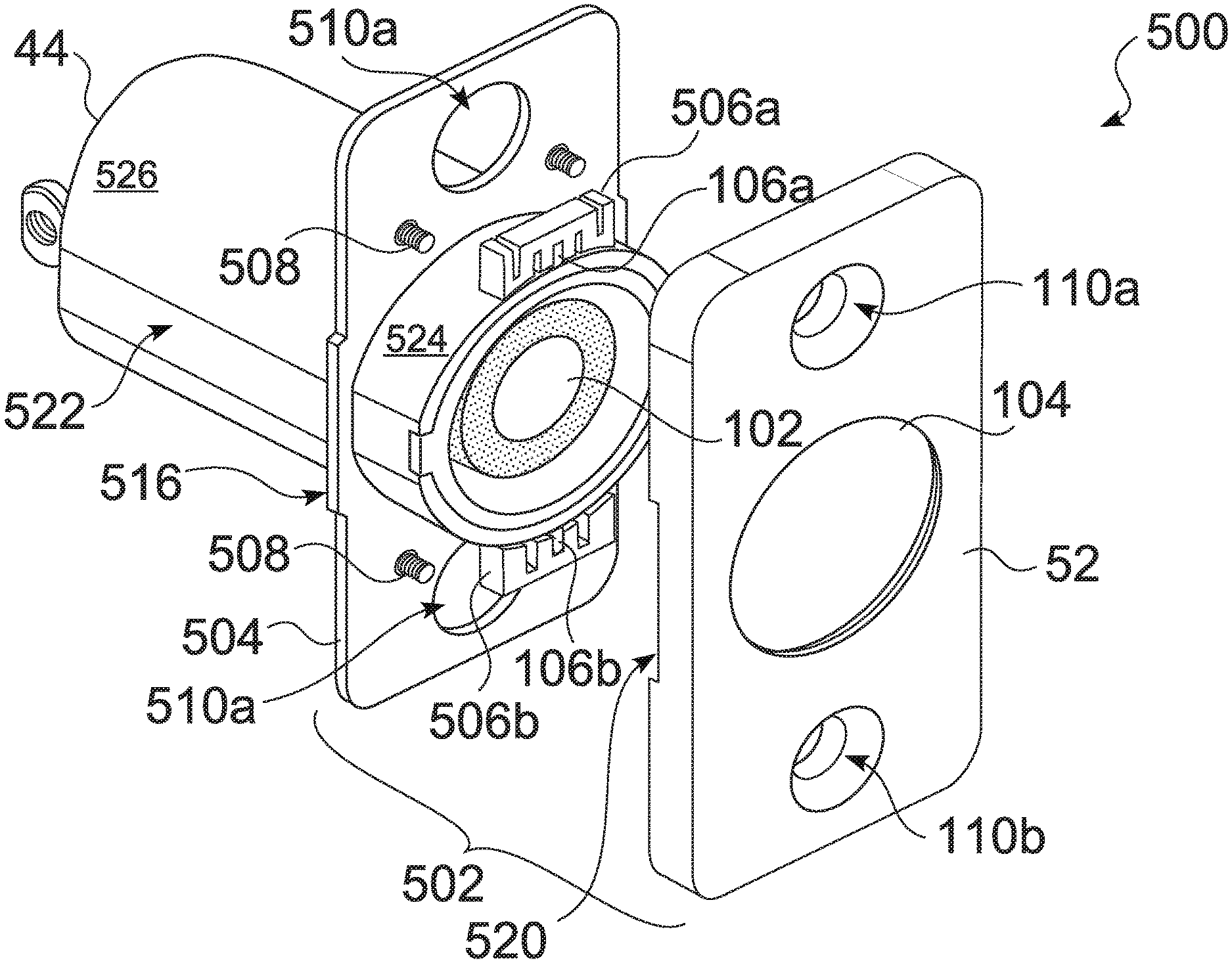

Disclosed are embodiments of a tapered bolt receiver for a door lock to accommodate misalignment, between a deadbolt mounted to a door, and an opposing jamb. The tapered bolt receiver can be configured to accommodate misalignment for a deadbolt having a non-tapered bolt, such as for an electromechanical smart lock having a battery stored within a battery compartment that is integrated with an enhanced bolt. Also disclosed are embodiments of a deadbolt plate pivot assembly that is pivotably mountable to a corresponding deadbolt assembly to define a plate pivot system, to accommodate a beveled door edge. An illustrative embodiment of the deadbolt plate pivot assembly includes opposing plate that captures a hinge assembly, which can include plastic plate hinges, which serve to locate the deadbolt plate pivot assembly with respect to a corresponding bolt housing, and can provide a spring force and/or constant torque when mounted to a beveled door.
