Abstract

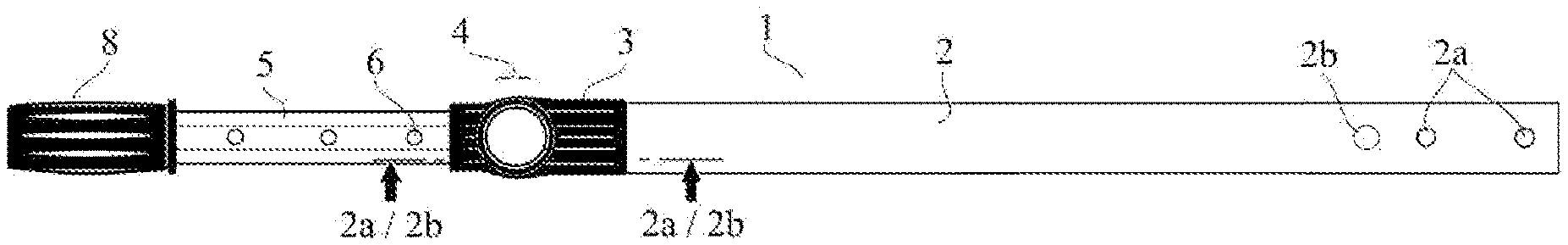

An improved telepole device having attachment means for attaching swimming pool cleaning, and other tools. The improved telepole device preferably includes an inner tube which freely slides within an outer tube, and a locking device to temporarily secure the inner tube in a desired position within the outer tube. A preferred lightweight design may be at least partially hollow along the length of the tube(s), and durability may be provided by inner/reinforcement wall(s) that extend across the hollow portion(s) of one or both of the tubes. On the end of the outer tube through which the inner tube slides/extends is a collar element attached thereto and comprised of a locking device having a detent mechanism for “locking” the inner tube in place within the outer tube. Preferably, the collar's opening and the profile of the inner tube have one or more sides that, due to their relative position with respect to each other, can prevent the inner tube from rotating within the collar. Further, the inner tube preferably has a series of holes along its length which are positioned to receive a pin element of the detent mechanism. Further, the end of the outer tube opposite the collar preferably has attachment holes configured to receive attachable and detachable swimming pool cleaning tools, and an additional set of holes that allow water to drain from the outer tube while a tool is attached.

First Claim
