Systems and methods for output current regulation in power conversion systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2023
Grant Date -
Nov 19, 2020
app pub date -
Jul 20, 2020
filing date -
Apr 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

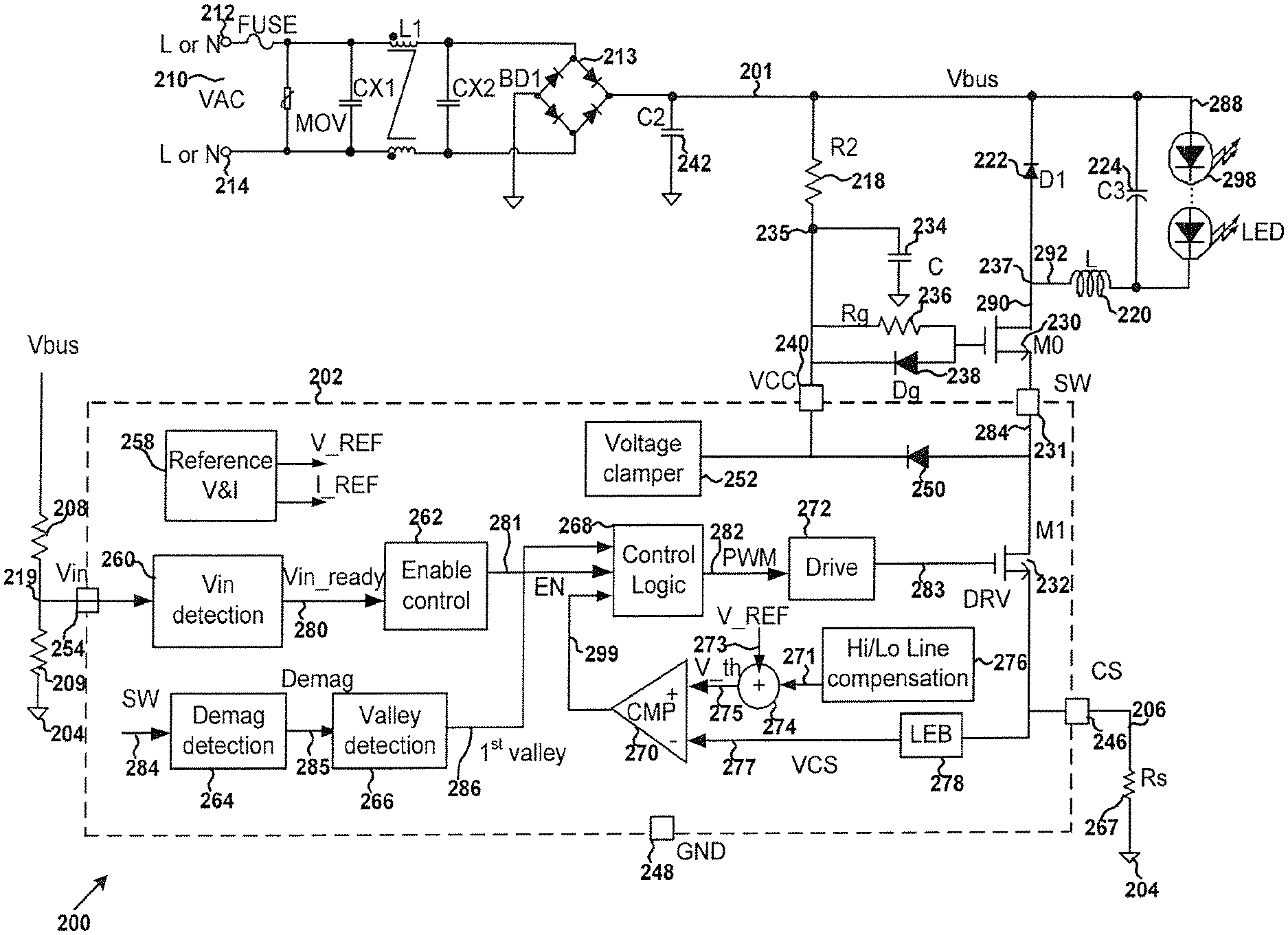

Systems and methods are provided for regulating a power conversion system. An example system controller includes: a detection component configured to receive an input voltage related to a diode connected to an inductor and output a first signal at a first logic level in response to the input voltage being larger than a predetermined threshold, a control logic component configured to receive the first signal, process information associated with the first signal, and output a modulation signal related to a modulation frequency in response to the first signal being at the first logic level, and a driving component configured to receive the modulation signal and output a drive signal to open and close a first switch at the modulation frequency.
