Helical spring for a pump having an adjustable delivery volume
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2023
Grant Date -
N/A
app pub date -
Aug 27, 2021
filing date -
Aug 28, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

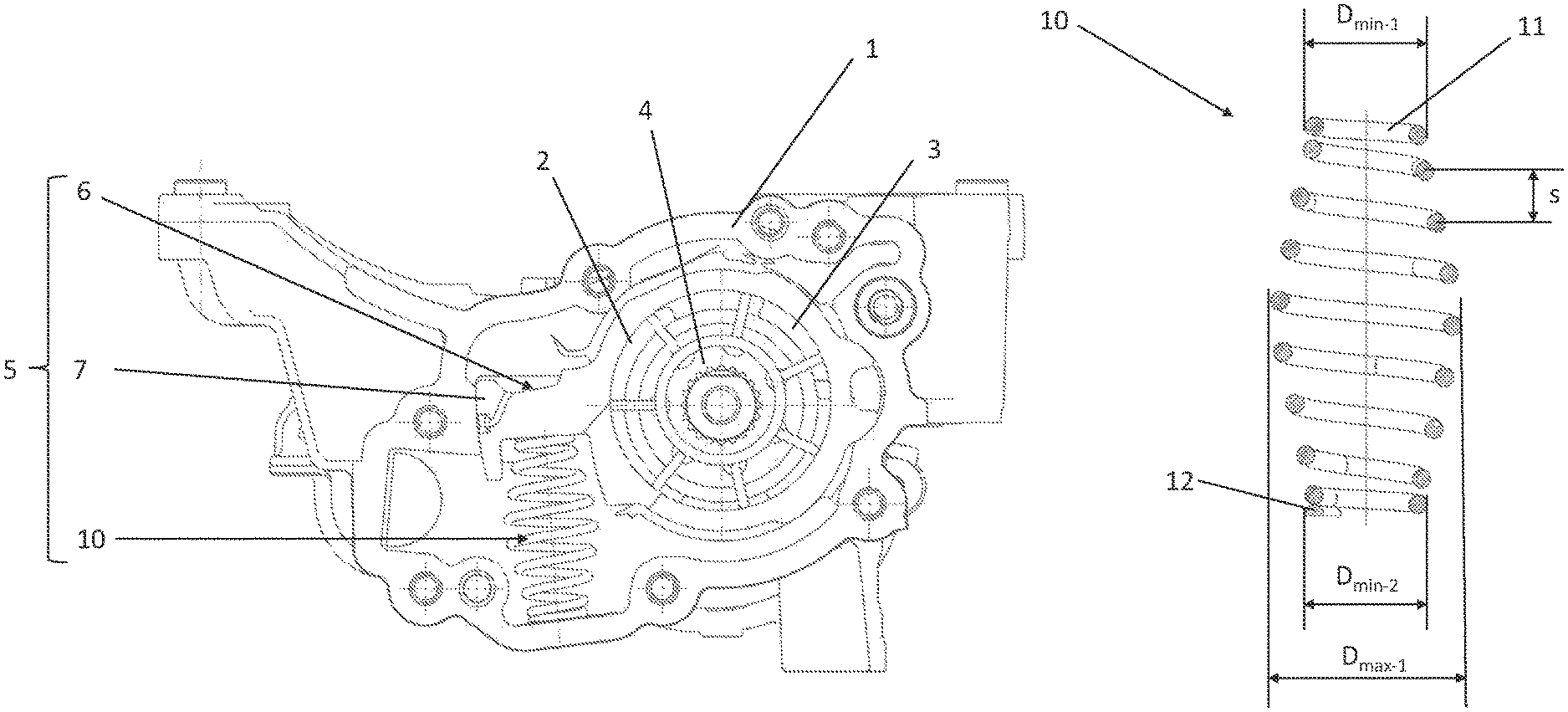

A pump having an adjustable delivery volume, including: a pump housing featuring a delivery chamber which includes a delivery chamber inlet for a fluid and a delivery chamber outlet for the fluid; a delivery member, which can be rotated within the delivery chamber, for delivering the fluid; an adjusting device featuring a setting structure, which is mounted such that it can move back and forth within the pump housing in order to adjust the delivery volume of the pump, and a helical spring for applying a spring force, which acts in a setting direction, to the setting structure, wherein the windings of the helical spring are enclosed by an envelope lying on the outside of the helical spring wherein the cross-sectional area of the envelope as measured transversely with respect to the longitudinal direction of the spring changes progressively in the longitudinal direction of the spring.
