Flow-type field-flow fractionation apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2023
Grant Date -
N/A
app pub date -
Jul 3, 2019
filing date -
Jul 26, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

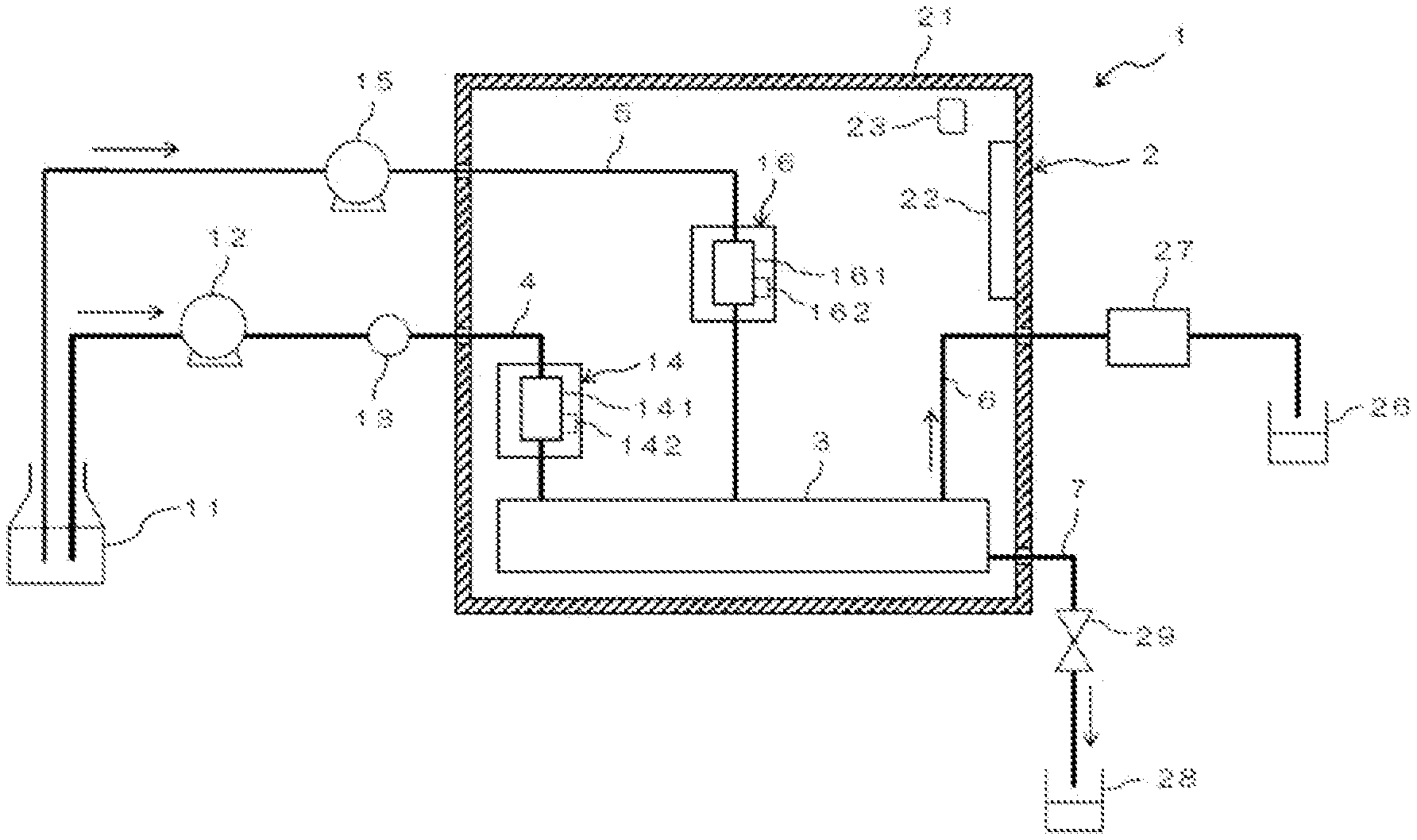

A flow-type field-flow fractionation apparatus 1 includes a first heater 14 and a second heater 16. The first heater 14 heats a carrier fluid between a first pump 12 and a separation cell 3. The second heater 16 heats a focus fluid between a second pump 15 and the separation cell 3. Thus, the carrier fluid heated by the first heater 14 is sent by the first pump 12 and flows into the separation cell 3, and the focus fluid heated by the second heater 16 is sent by the second pump 15 and flows into the separation cell 3. This can stabilize temperatures of the carrier fluid and the focus fluid flowing into the separation cell 3. Then, when an analysis is performed using the flow-type field-flow fractionation apparatus 1, the analysis can be performed with high reproducibility.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B03B Class
- 69 Applications Filed
- 44 Patents Issued To-Date
- 63.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B03B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 28, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 28, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 28, 2034 |
