Lead wire straightening device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2023
Grant Date -
N/A
app pub date -
Apr 27, 2017
filing date -
Apr 27, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

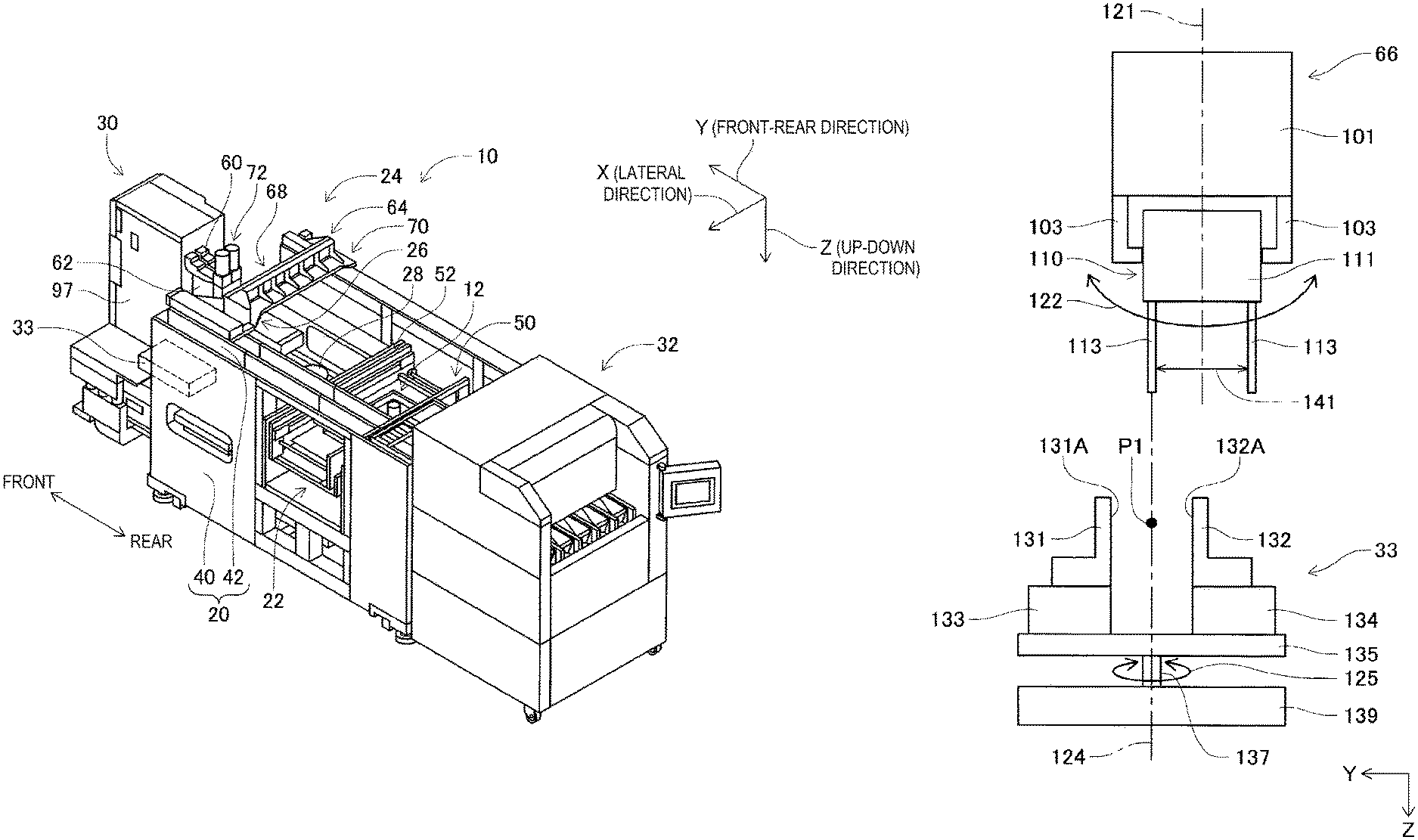

A lead wire straightening device including a control device that disposes a lead wire of a lead component that is held by a holding section between a first claw section and a second claw section. The control device causes an opening/closing driving section of a straightening unit to clamp and straighten the lead wire by the first and second claw sections. After the lead wire is clamped, the control device causes a driving section to rotate at least one of the holding section and the straightening unit to thereby change positions of the first and second claw sections relative to the lead wire. Then, after changing the positions of the first and second claw sections relative to the lead wire, the control device causes the first and second claw sections to clamp the lead wire again to straighten the lead wire.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B21F Class
- 102 Applications Filed
- 72 Patents Issued To-Date
- 70.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21F Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 21, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 21, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2034 |
