Hydroelectricity production facility using changes in water column density to induce vertical flow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2023
Grant Date -
Aug 11, 2022
app pub date -
Feb 9, 2022
filing date -
Feb 9, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

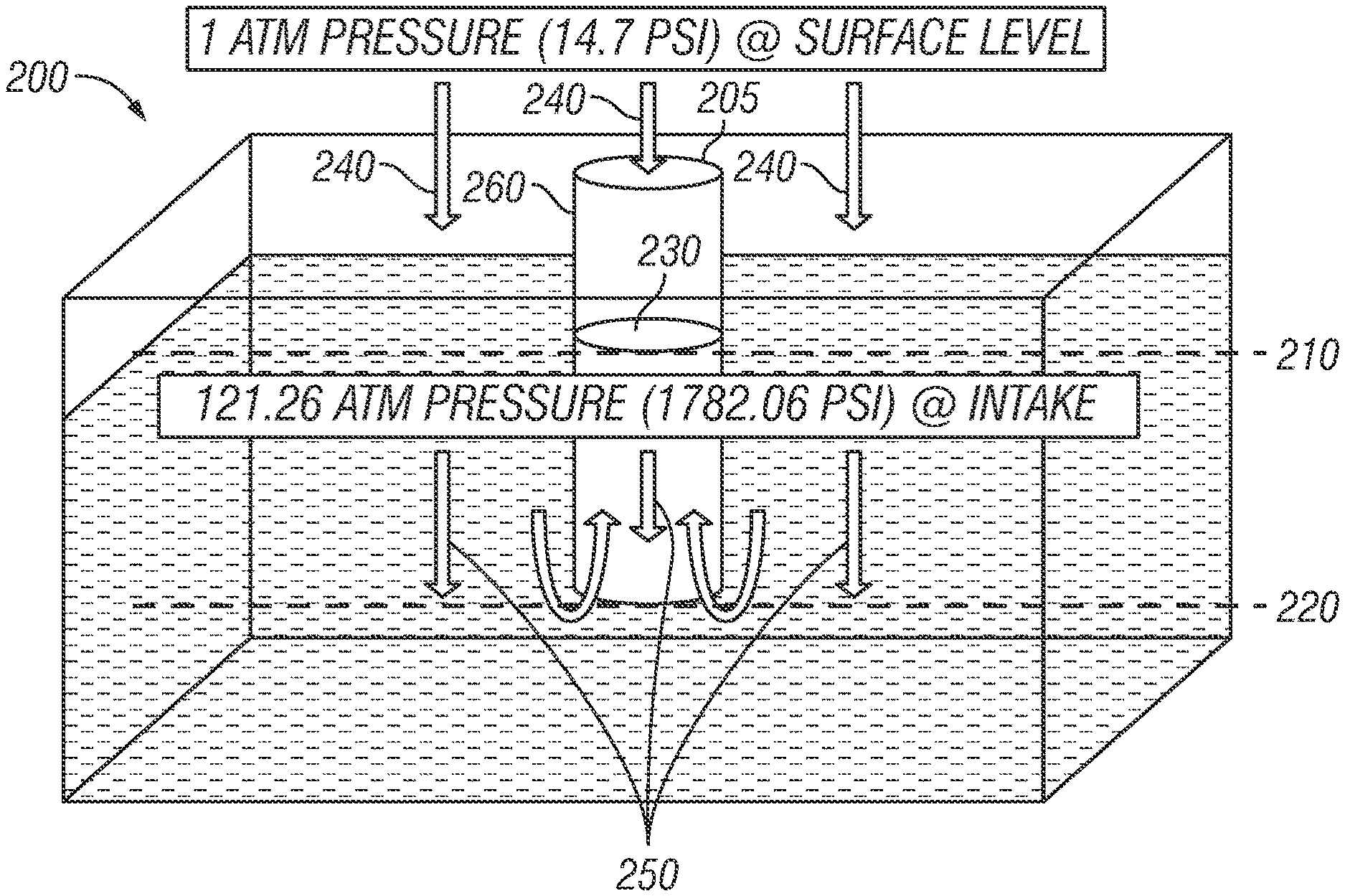

The present invention relates generally to facilities and systems capable of initiating and maintaining vertical flow, upward, within an extended-length water column by inducing changes in density throughout the column. Specifically, the induced (vertical) flow of water within an extended water column that is the present invention is accomplished through fluid aeration, with ambient air, which is directed toward producing ascending water flow rates sufficient to generate hydraulic pressure and hydraulic powered energy, through generated radial force in hydraulic turbines. It is another goal of this invention to utilize air infused water, derived from high-density and low depths, to create said vertical flow and induce turbine actuation through said unaltered, recyclable mediums—air and water—resulting in electrical power generation and desalination.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- F03B Class
- 216 Applications Filed
- 111 Patents Issued To-Date
- 51.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F03B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 21, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 21, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2034 |
