Apparatus and method for controlling side mirror system for vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 2023
Grant Date -
May 30, 2019
app pub date -
Nov 21, 2018
filing date -
Nov 24, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

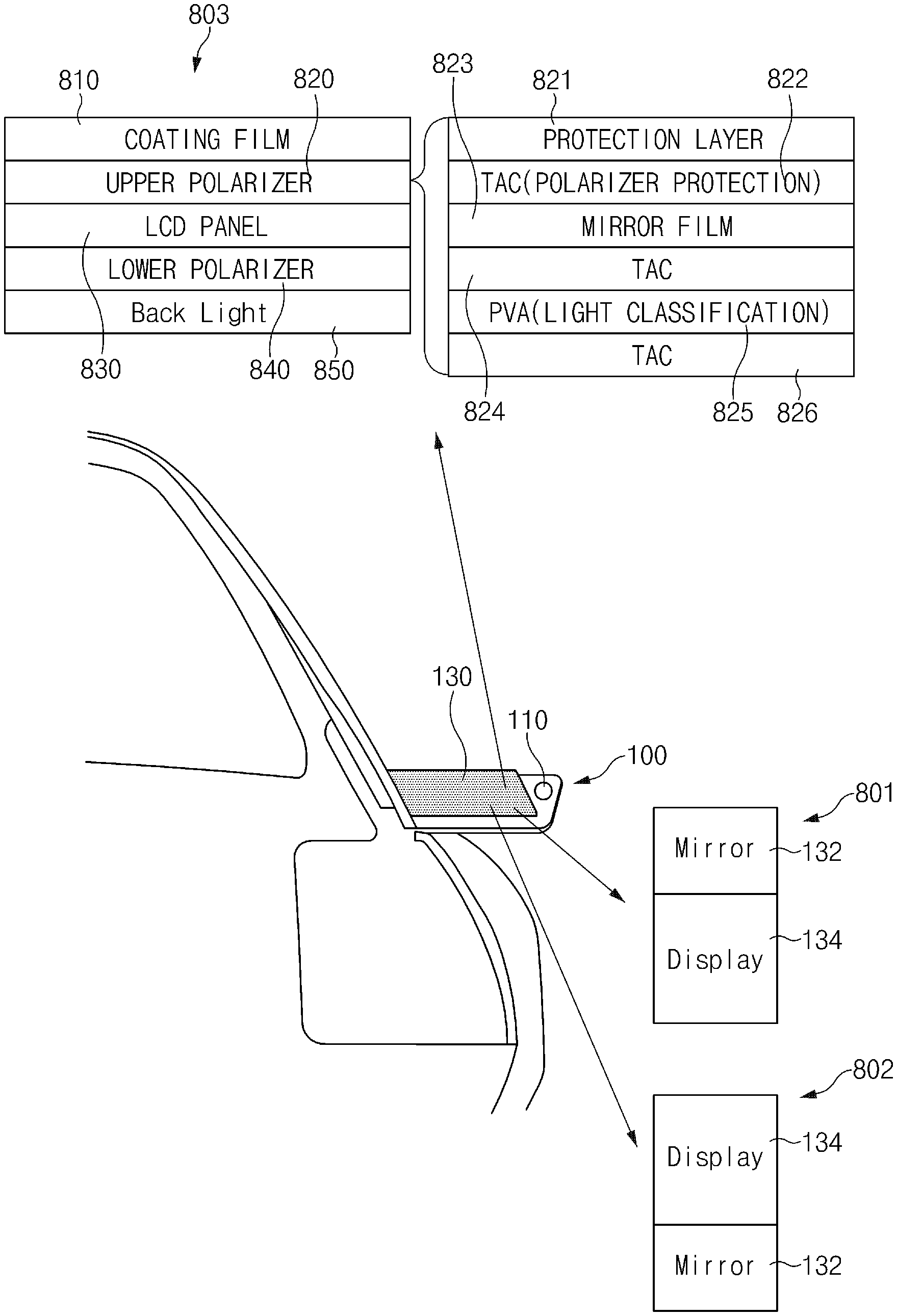

A side mirror system for a vehicle is provided. The side mirror system includes a camera disposed outside a vehicle and capturing a peripheral area of the vehicle, an electronic side mirror including a mirror panel and a display panel, a moving device moving the electronic side mirror to an inside or an outside of the vehicle, and at least one control circuit electrically connected to the camera, the electronic side mirror, and the moving device, wherein the at least one control circuit controls the electronic side mirror such that the electronic side mirror outputs an image obtained by the camera through the display panel or the peripheral area of the vehicle is reflected by the mirror panel and controls the moving device such that the electronic side mirror moves from the outside of the vehicle to the inside of the vehicle, when a specified condition is satisfied.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 14, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 14, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 14, 2034 |
