Pressure relief arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2023
Grant Date -
N/A
app pub date -
May 25, 2021
filing date -
Jun 10, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

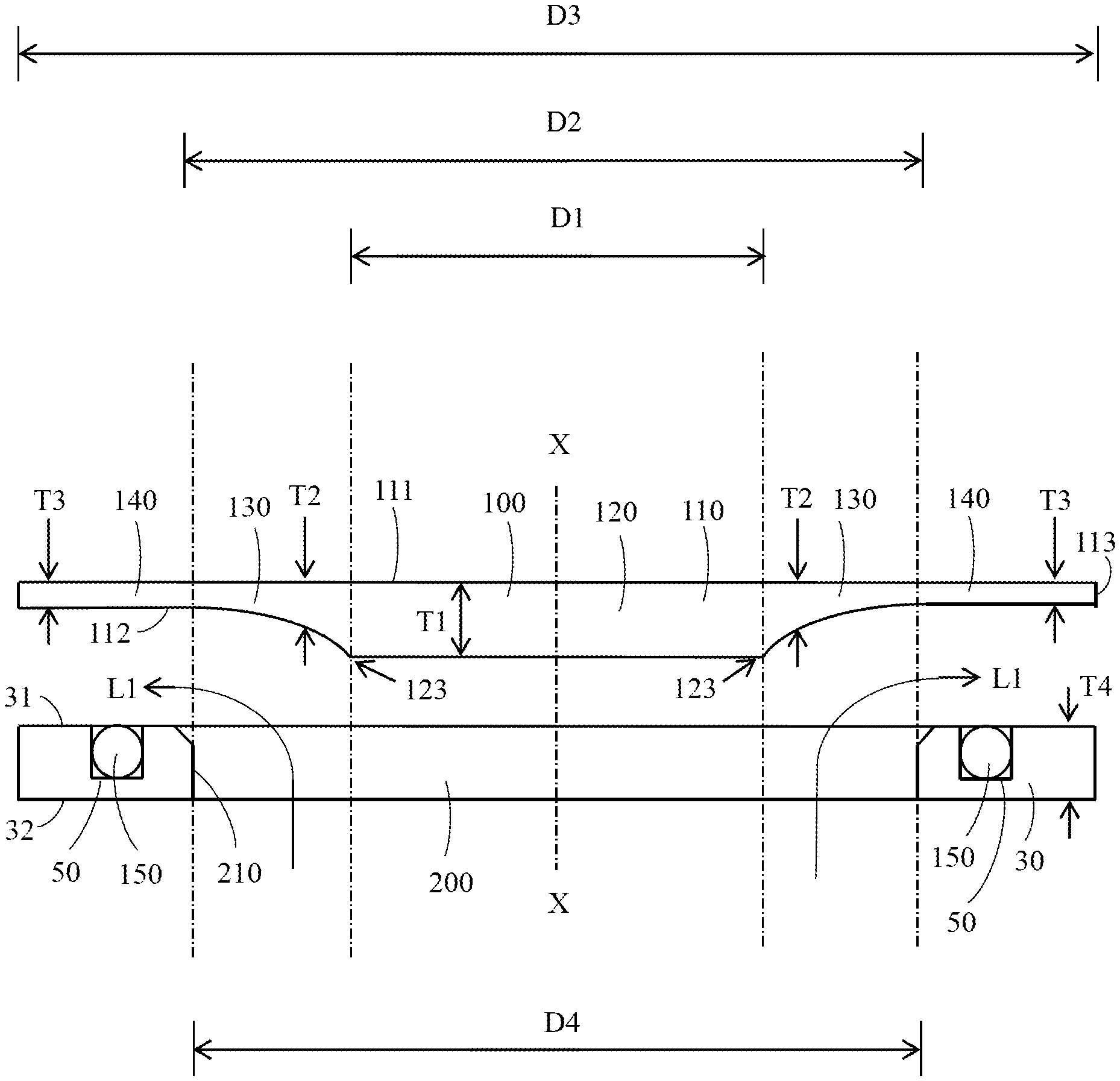

The arrangement includes a pressure relief hatch for closing an opening in a wall in an electric cabinet, which. includes a body having an outer surface, an opposite inner surface, an outer perimeter, and a thickness. The body includes a centre portion with a first thickness, an intermediate portion with a second thickness, and an outer portion with a third thickness. The first thickness is greater than the third thickness and the second thickness decreases in a radially outward direction from the first thickness to the third thickness. A spring keeps the pressure relief hatch in a closed position in the opening during normal operation of the electric cabinet.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 7, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 7, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 7, 2034 |
