Ignition overcurrent protection device, starting power equipment and ignition overcurrent protection method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2023
Grant Date -
N/A
app pub date -
Feb 25, 2021
filing date -
Aug 20, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

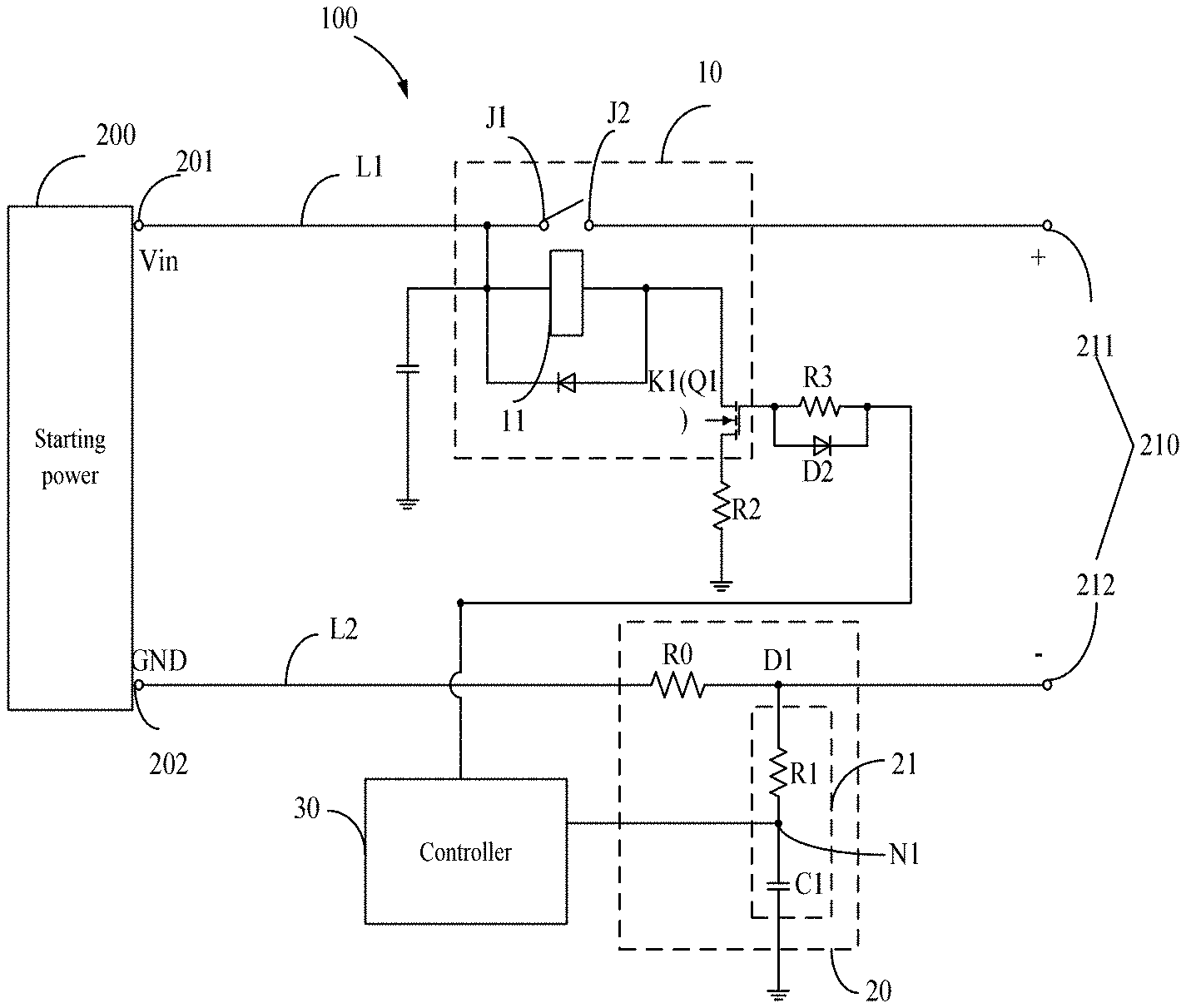

This present disclosure discloses an ignition overcurrent protection device, which includes a switch, a current detection circuit, and a controller. The switch is electrically coupled between a starting power and a power-on connector; the power-on connector is configured for connecting to the automotive power. The current detection circuit is configured for detecting a current value flowing between the starting power and the power-on connector. The controller is coupled to the switch and the current detection circuit. The controller is configured to determine a current range where the current value is located, and determine a preset time threshold corresponding to the current range, and control the switch to be turned off when a duration of the current value reaches the preset time threshold. The present disclosure also provides a starting power equipment and ignition overcurrent protection.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 7, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 7, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 7, 2034 |
