Continuous sieving apparatuses for pupae separation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2023
Grant Date -
Oct 21, 2021
app pub date -
Feb 10, 2021
filing date -
Apr 16, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

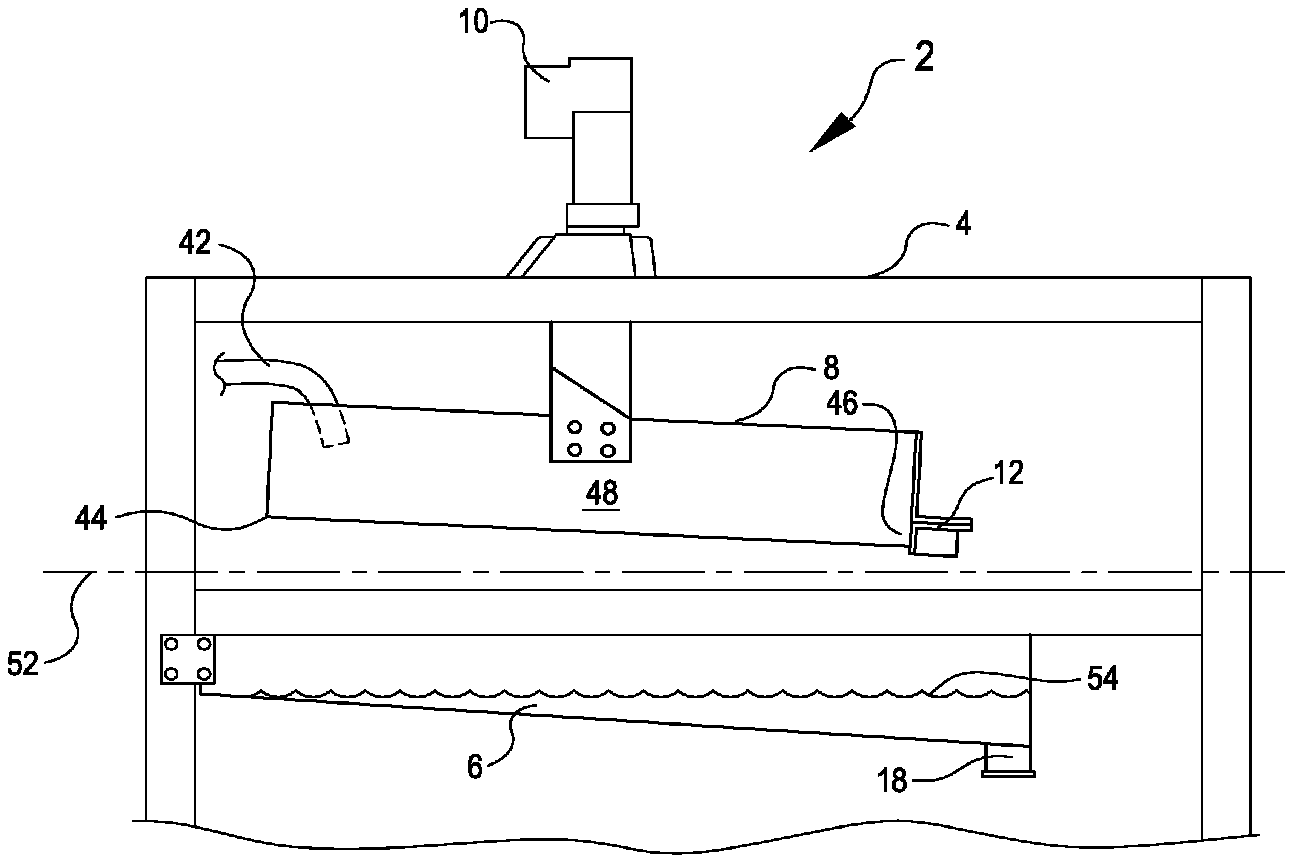

A continuous sieving apparatus is described. The continuous sieving apparatus includes an inclined sieve surface attached to a wall. The inclined sieve surface is inclined with respect to a horizontal axis for pupae to continuously flow across down the incline. A set of openings is formed in the sieve surface so as to define a set of pathways extending through the sieve surface. The set of opening are defined by a length dimension that is greater than a width dimension. When the inclined sieve surface is submerged in a liquid, a first pupa having a first cephalothorax width that is less than the width dimension is free to move through any one of the set of openings, and a second pupa having a second cephalothorax width that is greater than the width dimension is prevented from moving through the set of openings.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A01K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 7, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 7, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 7, 2034 |
