Machining system for aircraft structural components
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2023
Grant Date -
Mar 25, 2021
app pub date -
Apr 27, 2018
filing date -
Jul 24, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

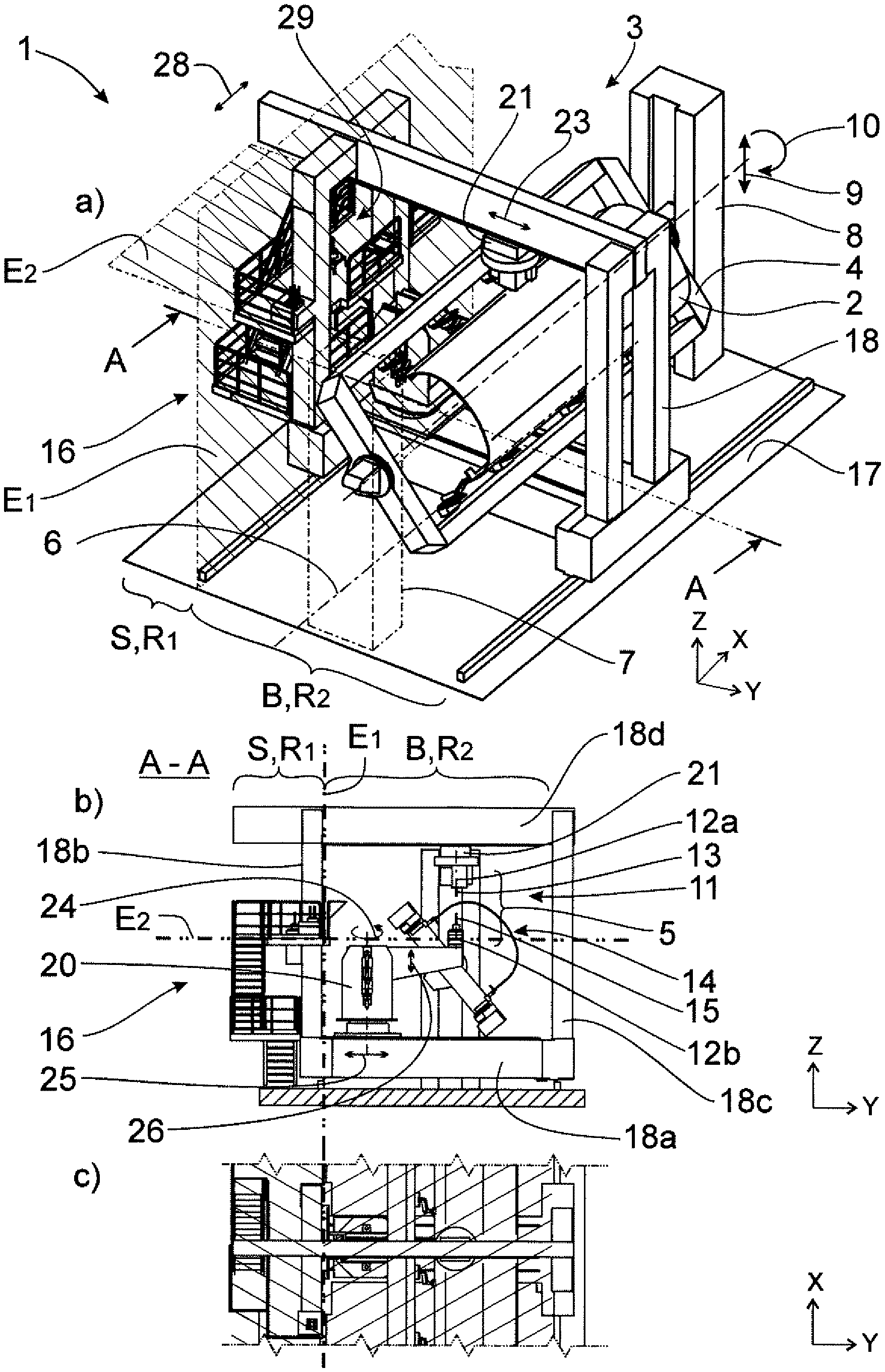

The disclosure relates to a processing installation for aircraft structural components having a processing station comprising a clamping frame for receiving the structural component, wherein the clamping frame extends along a station longitudinal axis which extends in a longitudinal direction and a processing unit which has an upper tool unit having an upper tool and a lower tool unit, wherein the processing installation has a processing region which is formed by a laterally delimited, first spatial portion in which the clamping frame and the processing unit are arranged during processing, wherein the processing installation has a service region for carrying out service operations, wherein the first spatial portion is separated from the second spatial portion in a transverse direction, wherein a service platform is arranged in the service region and can be positioned in a service plane which is orthogonal to the vertical direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B23Q Class
- 722 Applications Filed
- 513 Patents Issued To-Date
- 71.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23Q Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 31, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 31, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2034 |
