Ignition coil for internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2023
Grant Date -
Sep 1, 2022
app pub date -
May 18, 2022
filing date -
Mar 26, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

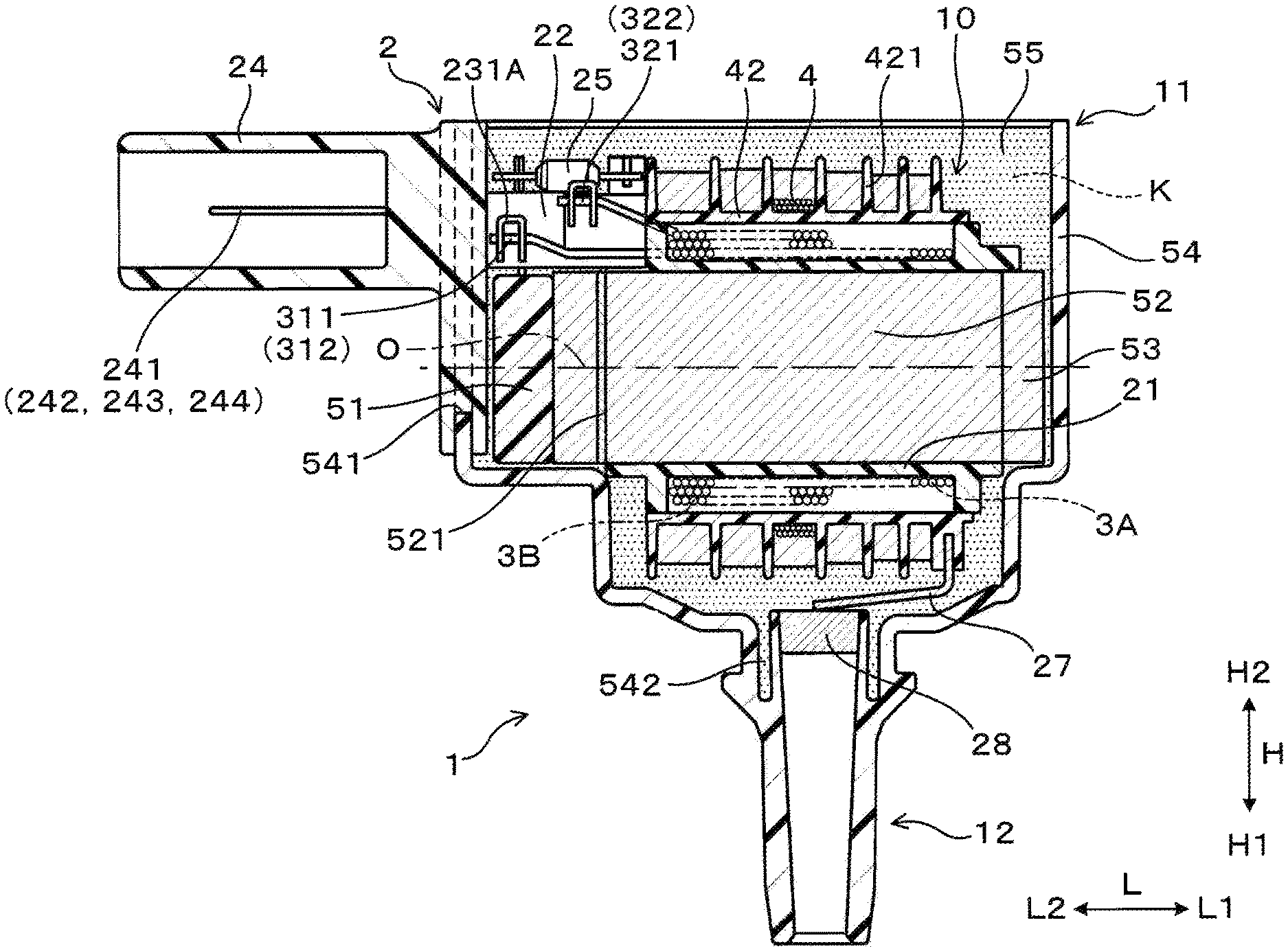

An ignition coil for an internal combustion engine includes a primary bobbin including a winding cylinder part and a connection part between the winding cylinder part and a connector part, a primary coil including a primary main coil and a primary sub coil, and a secondary coil. When one of the primary main coil and the primary sub coil that includes an innermost coil part around the winding cylinder part is defined as a firstly-wound coil and the other is defined as a secondly-wound coil, firstly-wound ends, which are ends of the firstly-wound coil, and secondly-wound ends, which are ends of the secondly-wound coil, are attached to the connection part, and a shortest distance from a central axis of the winding cylinder part to each of the firstly-wound ends is smaller than a shortest distance from the central axis of the winding cylinder part to each of the secondly-wound ends.
