Lightweight inorganic membrane module

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 11541344
APP PUB NO 20200171422A1
SERIAL NO

16701279

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

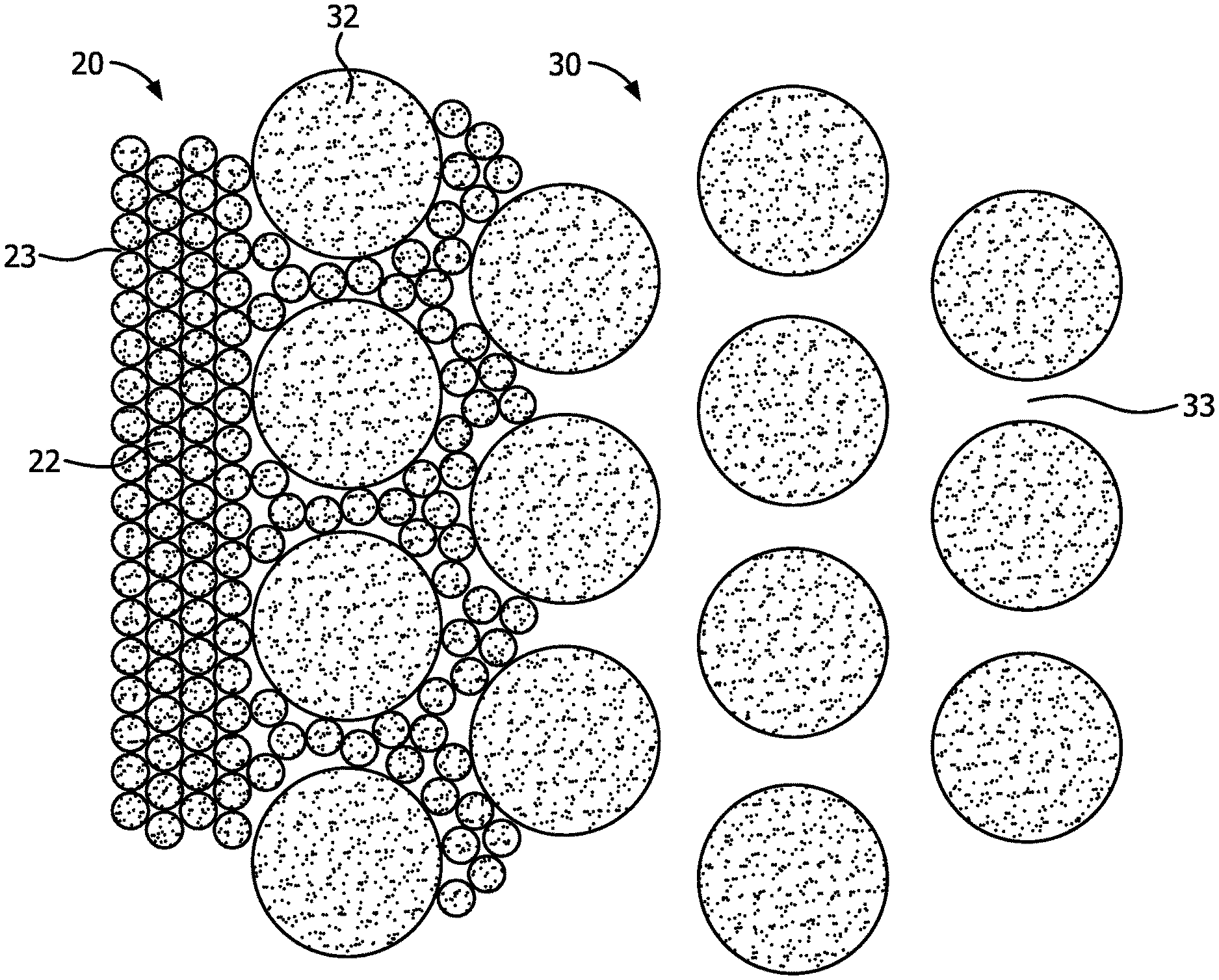

An apparatus and system for separating a liquid from a mixed gas stream includes a porous graphite foam support comprising graphite foam with pores having a first pore size and a membrane support surface. A porous condensation membrane layer is provided on the membrane support surface, and interlocked with the pores of the graphite foam. The condensation membrane layer includes capillary condensation pores having a second pore size that is less than the first pore size. A mixed gas stream passageway is in fluid communication with the condensation membrane layer. A liquid collection assembly collects condensed liquid from the condensation pores and the graphite foam support pores. A gas inlet is provided for flowing the mixed gas stream into the mixed gas stream passageway. A gas outlet is provided for exhausting gas from the mixed gas stream passageway. A method for separating a liquid from a mixed gas stream is also disclosed.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
UT-BATTELLE LLC5002 MS-6265 ONE BETHEL VALLEY ROAD OAK RIDGE TN 37831-6265

International Classification(s)

loading....
  • 2019 Application Filing Year
  • E03B Class
  • 163 Applications Filed
  • 102 Patents Issued To-Date
  • 62.58 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Bischoff, Brian L Knoxville, US 12 112
DeBusk, Melanie Moses Knoxville, US 4 25
Klett, James William Knoxville, US 5 11

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • E03B Class
  • 0 % this patent is cited more than
  • 2 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges1692401 - 100102030405060708090100110120130140150160170180

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
3.5 Year Payment $1600.00 $800.00 $400.00 Jul 3, 2026
7.5 Year Payment $3600.00 $1800.00 $900.00 Jul 3, 2030
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jul 3, 2034
