Non-electric explosive device and method of severing a tubular
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 20, 2022
Grant Date -
N/A
app pub date -
May 24, 2021
filing date -
May 24, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

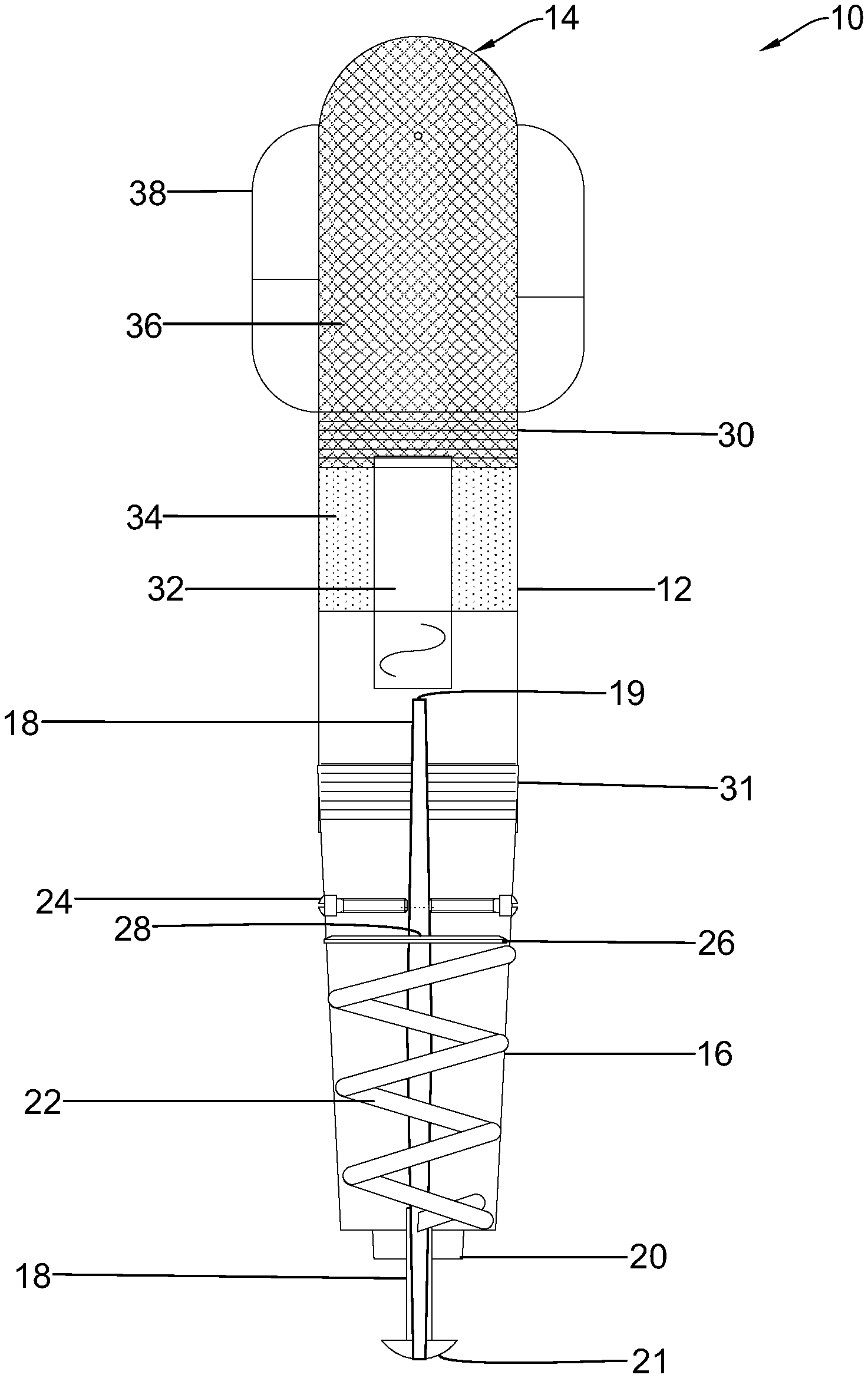

A non-electric explosive device includes a primary body containing cutting material and including a primary charge positioned in the cutting material; an explosive body at a first axial end of the primary body and including explosive material; and a firing head at a second axial end of the primary body, the firing head including a firing pin secured at least partially inside the firing head via securing device, the firing pin comprising an activating end proximate the primary charge and a blunt end protruding from a distal end of the firing head. A force applied to the blunt end of the firing pin causes the firing pin to retract toward the primary charge and break the securing device so that the activating end of the retracting firing pin impacts the primary charge which ignites the explosive material that causes the cutting material in the primary body to travel radially outward.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 20, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 20, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 20, 2034 |
