Surveying apparatus for surveying an object
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2022
Grant Date -
Apr 23, 2020
app pub date -
Sep 11, 2019
filing date -
Oct 17, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

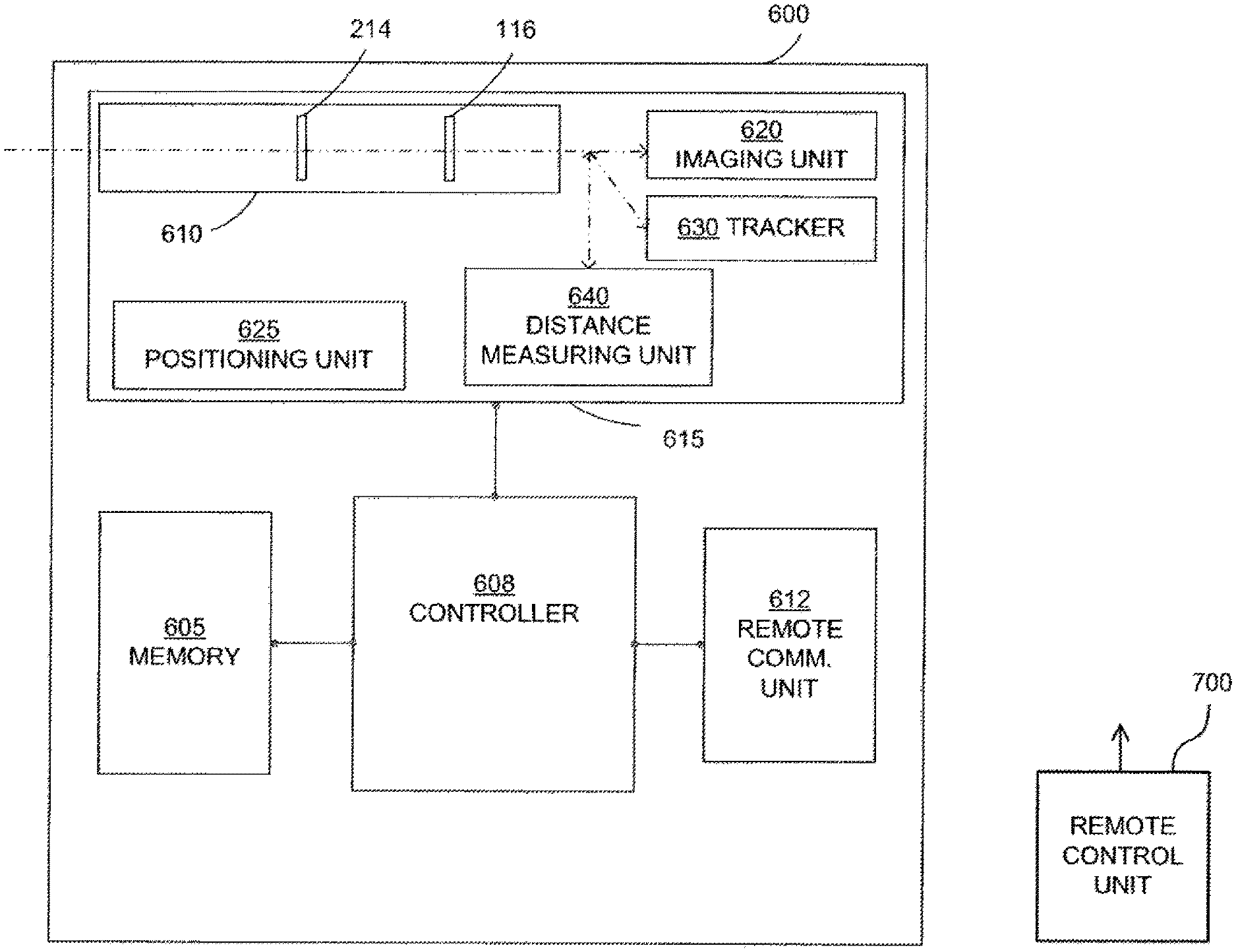

The present invention relates to a surveying apparatus for surveying an object as well as a surveying system comprising the surveying apparatus having a simple and compact optical setup. The surveying apparatus comprises a lens arrangement including at least one movably arranged focus lens element for focusing to sight an object; an imaging unit configured to obtain an image of at least a part of the object; a distance measuring unit configured to measure a distance to the object along the optical axis of the distance measuring unit; and a beam splitter/combiner configured to combine a part of the optical imaging path of the imaging unit and a part of the optical distance measuring path of the distance measuring unit so that the optical axis of the imaging unit and the optical axis of the distance measuring unit are at least coaxially arranged with the optical axis of the lens arrangement between the lens arrangement and the beam splitter/combiner.
