Apparatus, method for operating an apparatus having a mobile part movable on a movement plane, and use thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 6, 2022
Grant Date -
N/A
app pub date -
Jan 29, 2020
filing date -
Feb 12, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

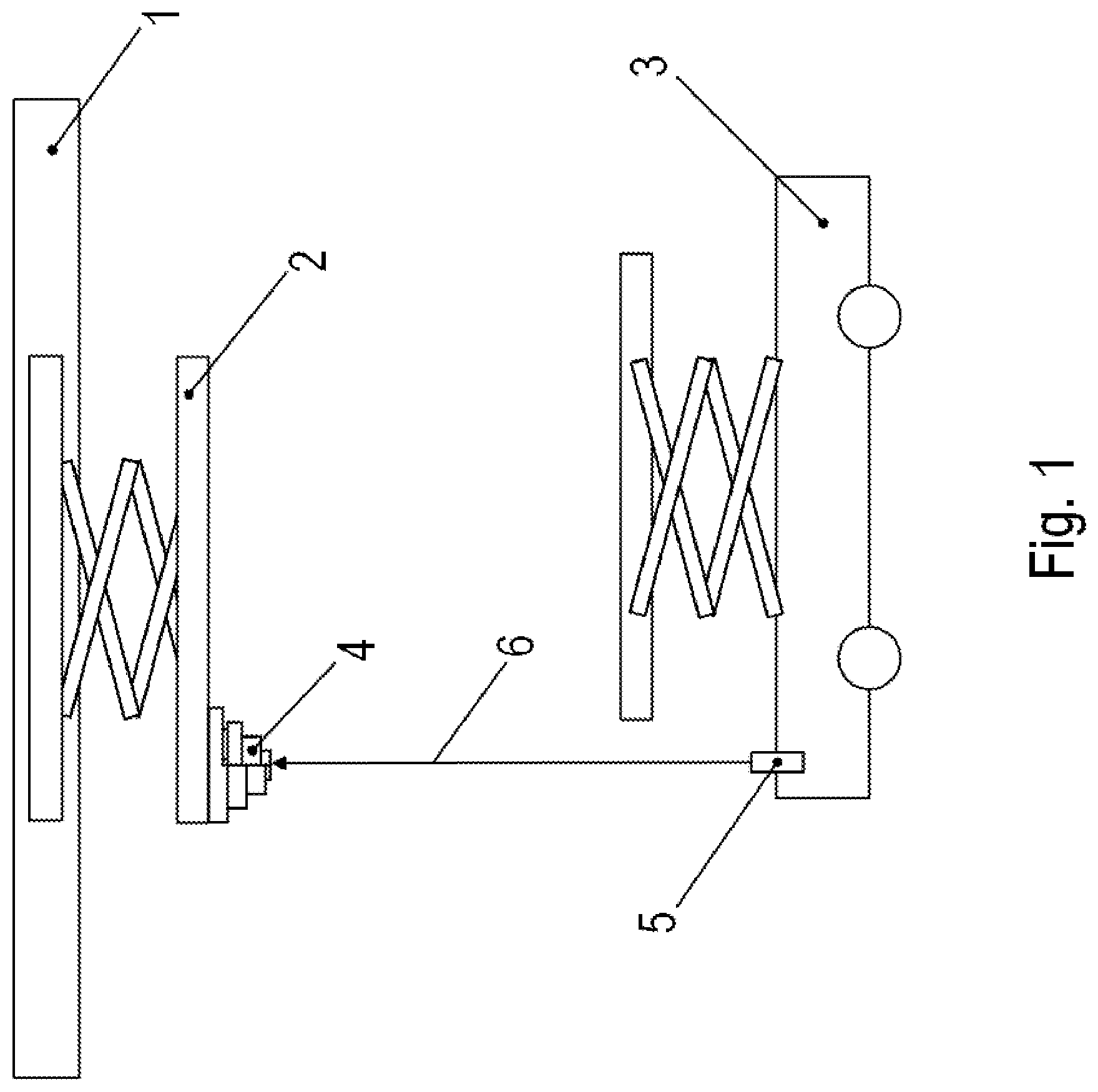

In an apparatus and method for operating an apparatus having a mobile part which is movable on a movement plane and has a measuring unit, and a measuring body which is set apart from the movement plane and from the plane parallel to the movement plane that includes the measuring unit, for example, and is situated as far as possible from the movement plane, the measuring unit is adapted to determine the distance between the measuring body and the measuring unit in a normal direction to the movement plane, and the measuring body is shaped such that in the projection of the measuring body perpendicular onto the plane, e.g., the projection surface, an individual distance value is bijectively allocated to the, or to the plurality of, partial surface regions of the projection surface, which particularly do not overlap one another.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B61K Class
- 45 Applications Filed
- 32 Patents Issued To-Date
- 71.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61K Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 6, 2034 |
