Projectile launching device and related methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 6, 2022
Grant Date -
N/A
app pub date -
Nov 19, 2021
filing date -
Nov 19, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

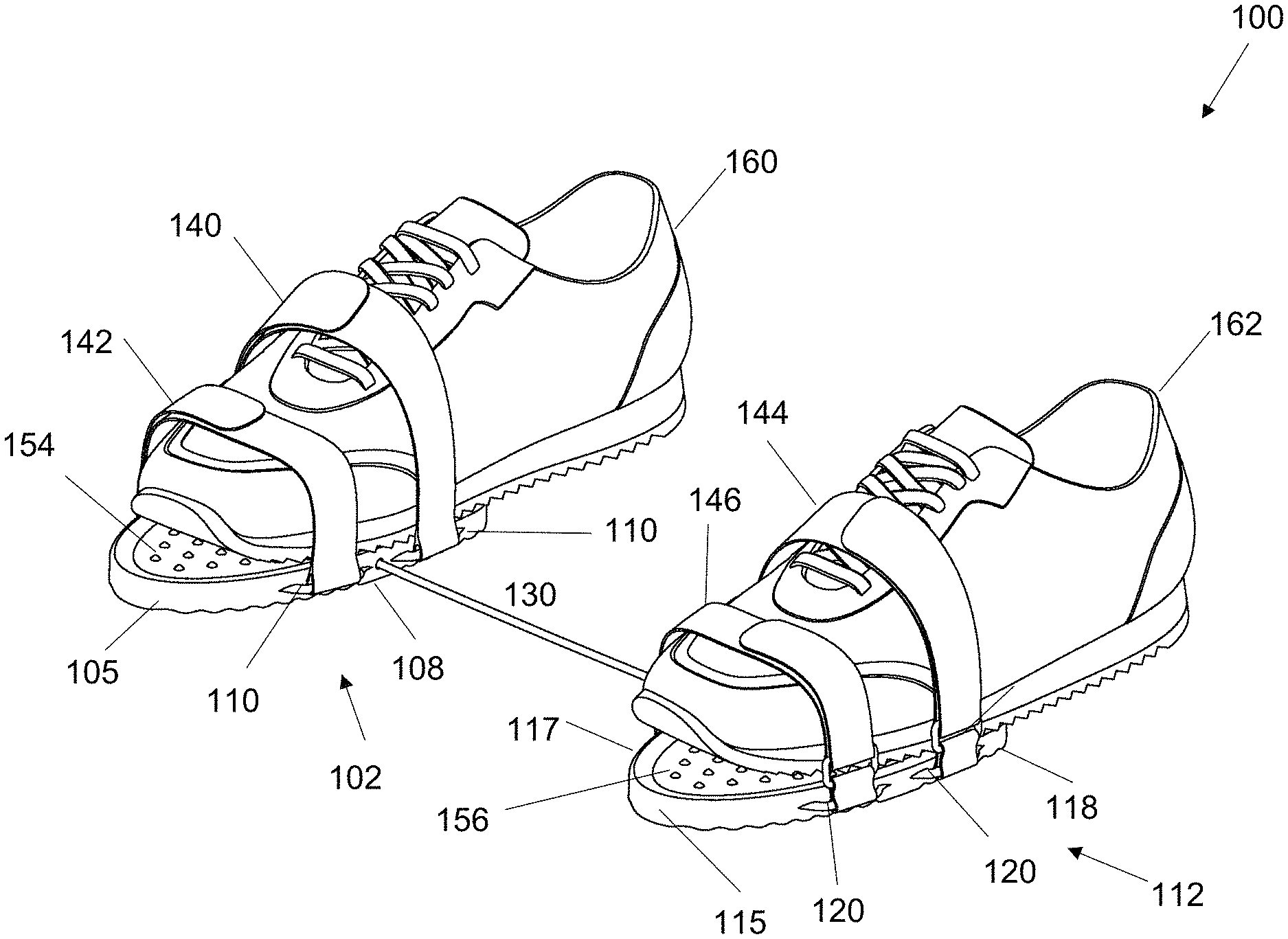

Devices, systems and methods are described for launching a projectile. Preferred devices comprise two separate platforms that are connected by an elastic cable. Each of the platforms can be secured to one foot or shoe of a user by a strap or other fastener. Once secured, a force can be applied to a projectile that is connected to the elastic cable to thereby stretch the cable in a first direction. Once the force is removed, at least some of the elastic force of the cable can be transferred to the projectile causing the projectile to be propelled in a direction opposite to the first direction.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2021 Application Filing Year
- A63H Class
- 356 Applications Filed
- 174 Patents Issued To-Date
- 48.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A63H Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 6, 2034 |
