Internal structure of a primary exhaust duct having a separator of which the geometry varies depending on the temperature
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 6, 2022
Grant Date -
Aug 26, 2021
app pub date -
Feb 22, 2021
filing date -
Feb 24, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

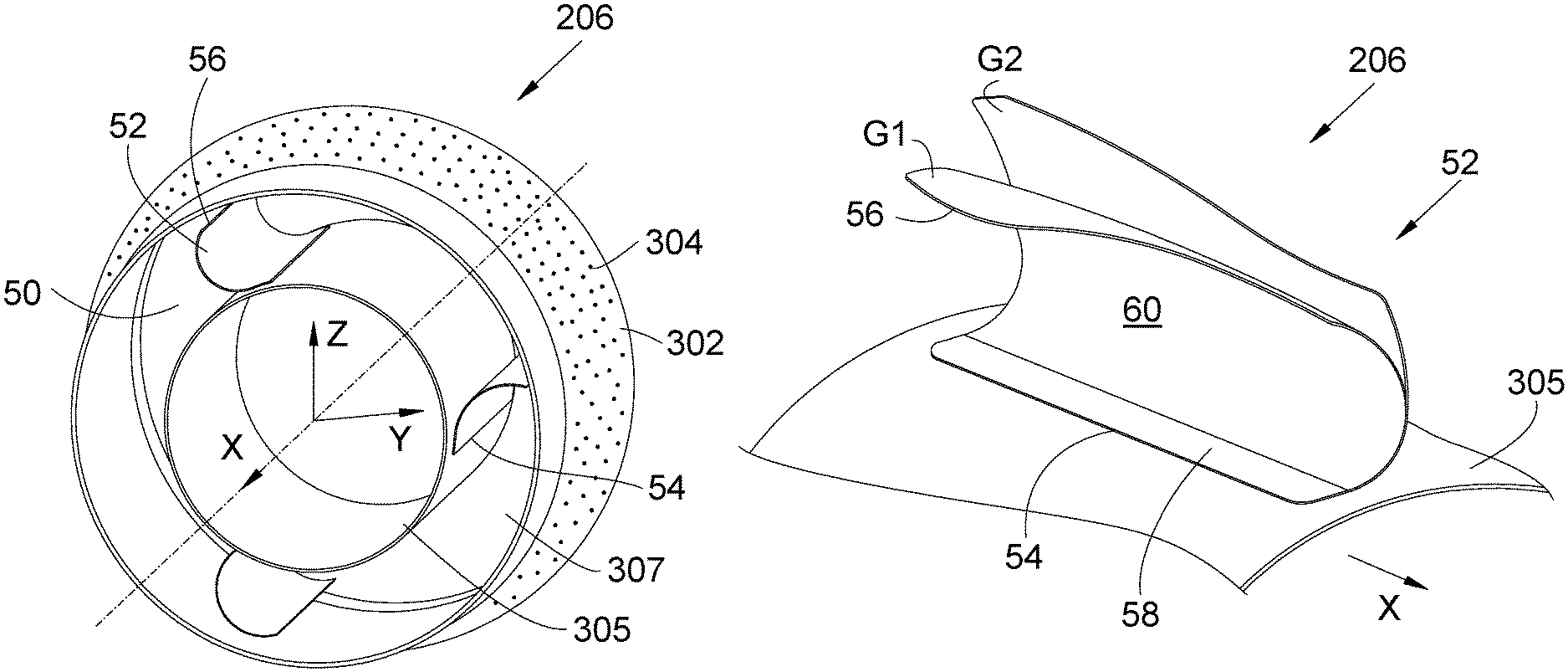

An internal structure of a primary exhaust duct of a turbomachine, which has a primary wall allowing air to pass through orifices and forming an internal surface of the primary exhaust duct, an interior skin arranged inside the primary wall, and at least one separator of which a first edge region is attached to the interior skin and which has two geometries. A change from the first geometry to the second takes place when the temperature of the separator exceeds a first temperature, and the change from the second to the first takes place when the temperature of the separator drops below a second temperature. The coefficient of expansion of the separator is greater than that of the interior skin. The variation in the geometry of the separators depending on the temperature of the engine eases assembly at ambient temperature due to the compression of the separators.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- F02K Class
- 347 Applications Filed
- 209 Patents Issued To-Date
- 60.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02K Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 6, 2034 |
