Mitigating plasma instability
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2022
Grant Date -
N/A
app pub date -
Nov 12, 2020
filing date -
Nov 12, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

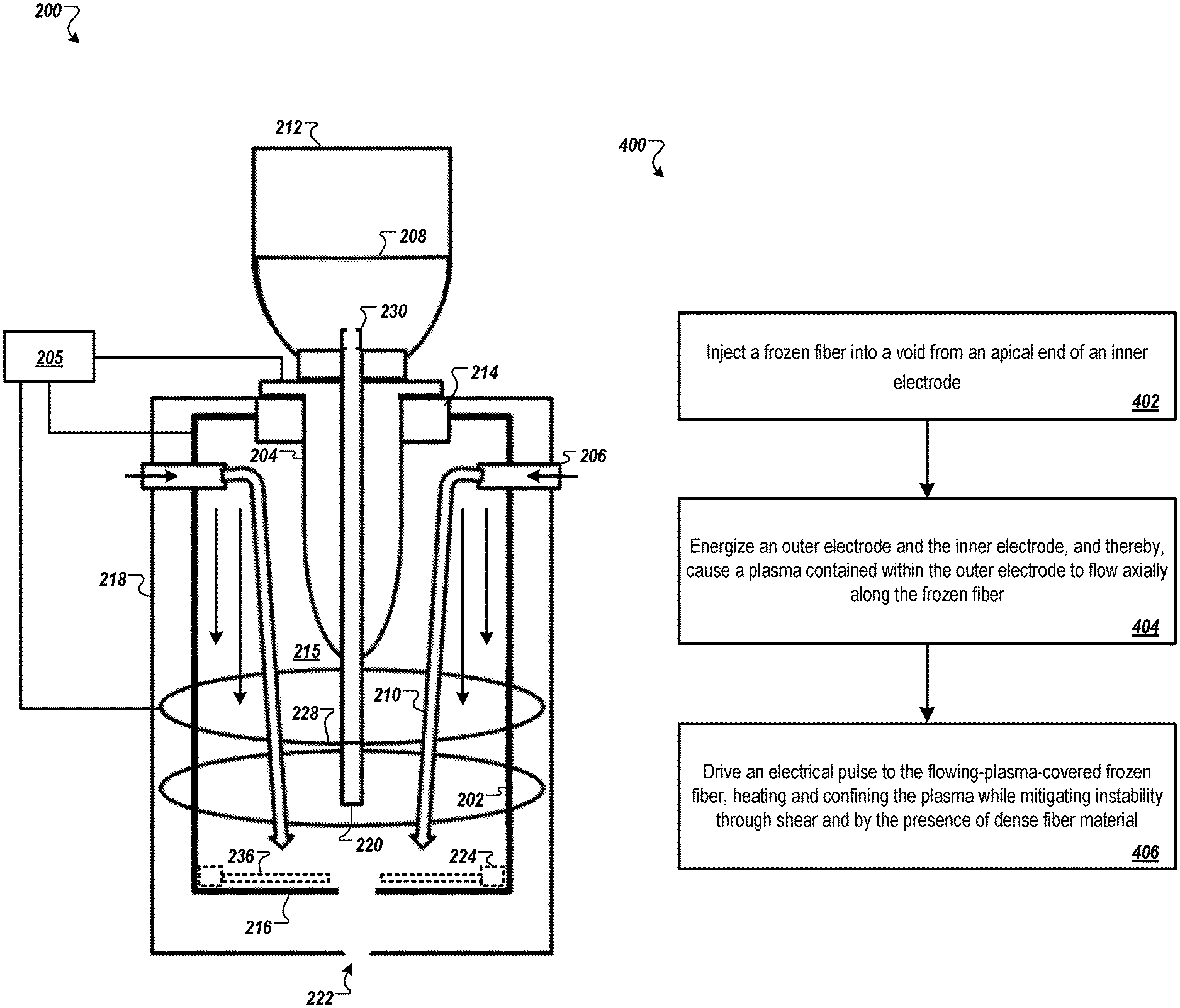

A system for reducing plasma instability is disclosed. The system includes: an outer electrode having a first end and a second end spaced from the first end; and an inner electrode disposed inside of a void defined within the outer electrode and arranged coaxial with the outer electrode. The inner electrode includes: a base end defined by the first end of the outer electrode; and an apical end spaced from the base end. The system includes a fiber injector configured to inject a frozen fiber into the void from the apical end of the inner electrode; an electrode power source configured to energize the outer electrode and the inner electrode, and thereby, cause a plasma contained within the outer electrode to flow axially along the frozen fiber; and a frozen fiber power source configured to drive an electrical pulse to the frozen fiber.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- H05H Class
- 282 Applications Filed
- 147 Patents Issued To-Date
- 52.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H05H Class
- 77.04 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 29, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 29, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2034 |
