System for and method of stabilizing rail track structures using a load transfer apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2022
Grant Date -
Apr 16, 2020
app pub date -
Dec 9, 2019
filing date -
Sep 5, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

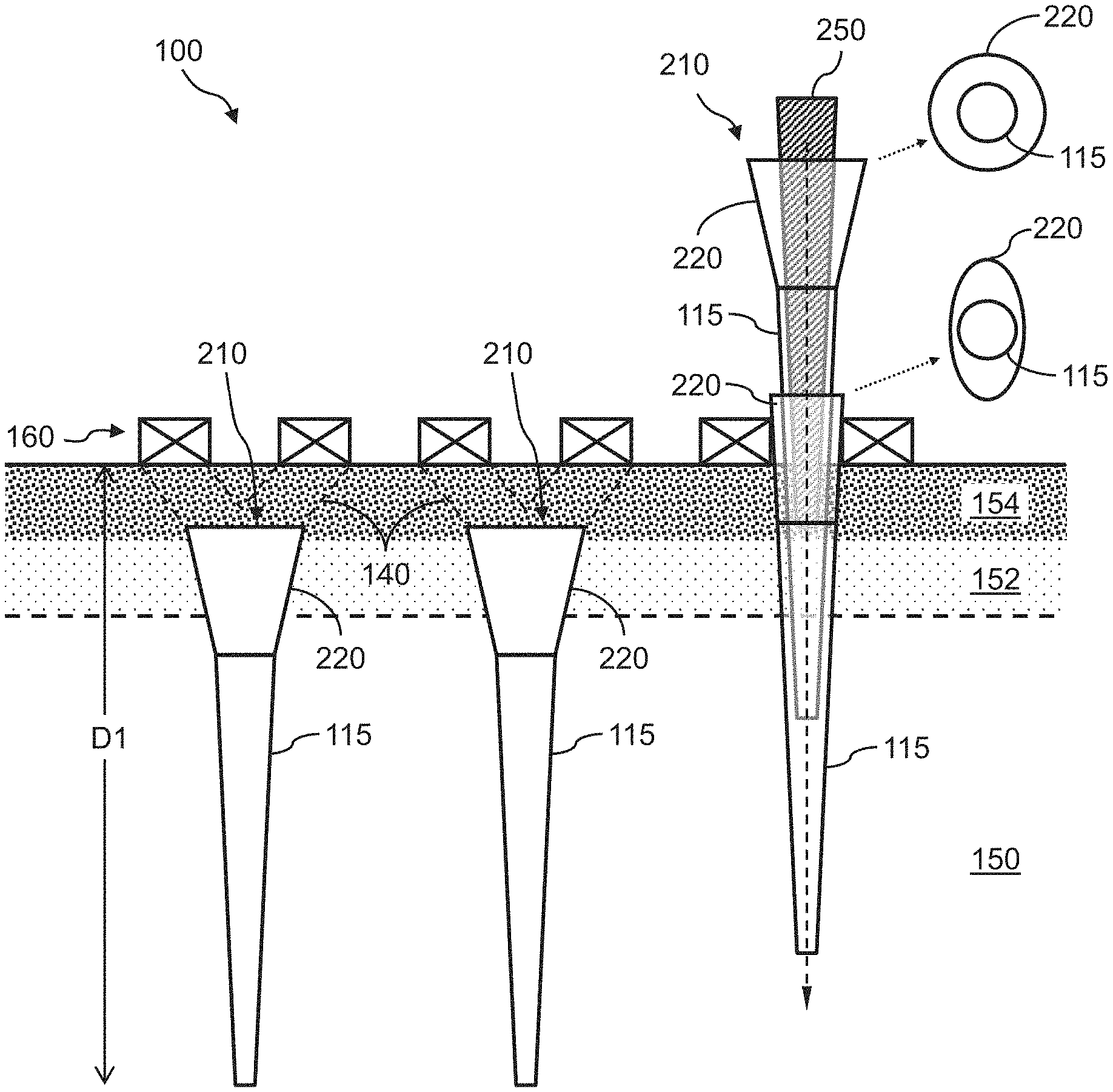

A system for and method of stabilizing rail track structures using a load transfer apparatus is disclosed. The load transfer apparatus includes a vertical load transfer element and a top load transfer element, wherein the top load transfer element is used to transfer applied locomotive and rail car loads to the vertical load transfer element. In one embodiment, the top load transfer element includes helical flights. In another embodiment, the top load transfer element includes a flared top. In yet another embodiment, the top load transfer element includes a load transfer cap. In a further embodiment, the top load transfer element includes two or more support legs each with a top support attached thereto. The railroad stabilization system can comprise any one type or any combinations of types of the aforementioned load transfer apparatuses.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- E01B Class
- 122 Applications Filed
- 70 Patents Issued To-Date
- 57.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E01B Class
- 62.38 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 29, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 29, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2034 |
