Bi-stable quick-release valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2022
Grant Date -
N/A
app pub date -
May 13, 2021
filing date -
May 13, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

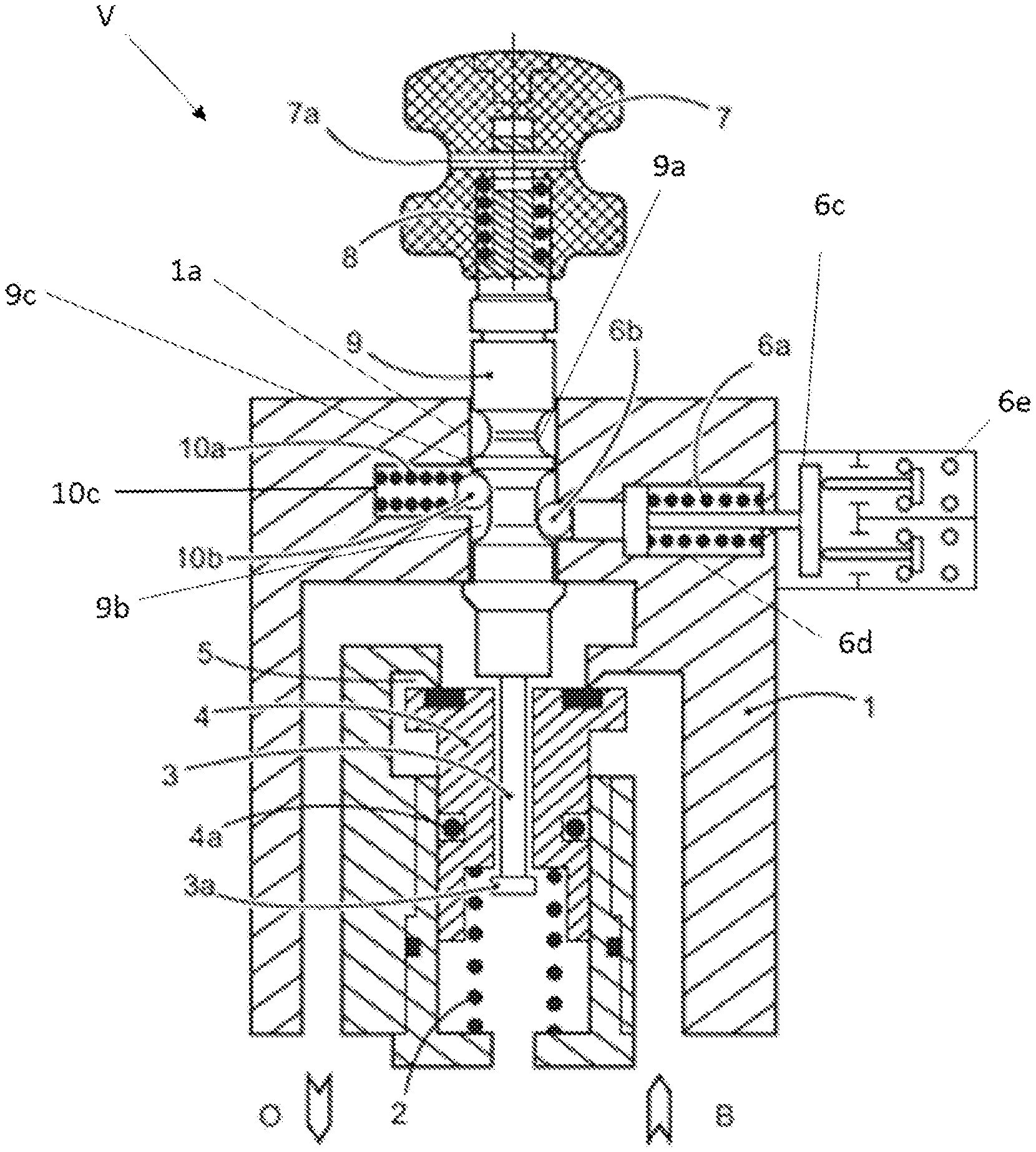

A valve for applying an emergency brake of a rail vehicle includes a valve housing, an actuation member to be activated by a user, an actuation rod connecting the actuation member with a valve head, wherein the valve head is adapted to abut on a valve seat, a guidance for guiding the actuation rod being provided within the valve housing, and a first spring adapted to push the valve head against the valve seat, wherein the actuation rod includes a first groove and a second groove, and wherein a first following member is provided between the actuation rod and the guidance, being adapted to stably rest in the first groove or the second groove.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16K Class
- 84.13 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 15, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 15, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 15, 2034 |
