Coin storage unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 2022
Grant Date -
Mar 18, 2021
app pub date -
Mar 15, 2019
filing date -
Mar 19, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

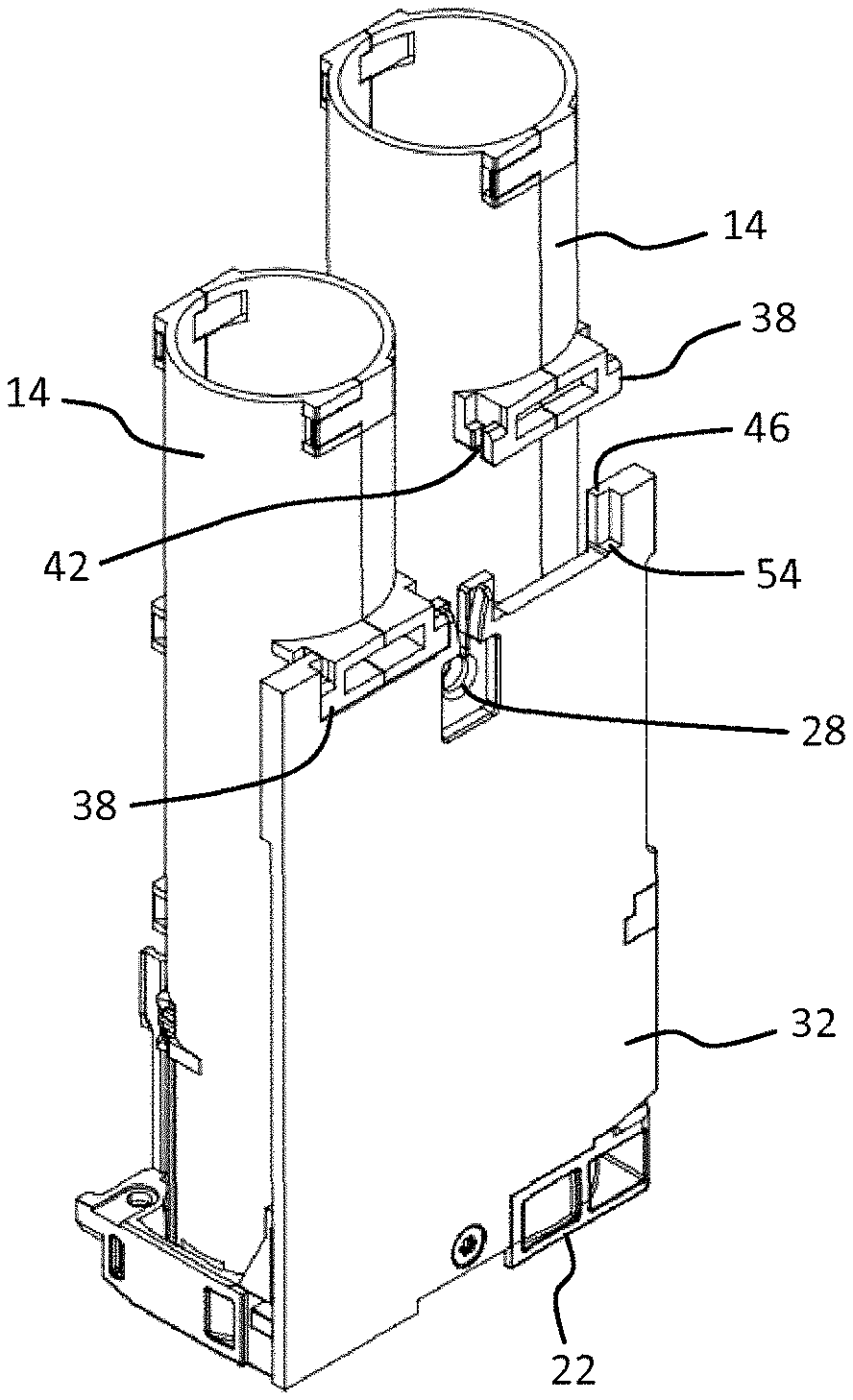

The invention relates to a coin storage unit comprising a housing and multiple coin tubes arranged interchangeably in the housing, wherein locking means are provided for the coin tubes, which are actuatable between a locking position locking the coin tubes against removal from the housing and an unlocking position releasing the coin tubes for removal from the housing, wherein the locking means are arranged between each two adjacent coin tubes in the housing and lock the adjacent coin tubes against removal from the housing in the locking position, and wherein the locking means can only assume the locking position in the state of the adjacent coin tubes inserted completely into the housing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- G07D Class
- 188 Applications Filed
- 134 Patents Issued To-Date
- 71.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07D Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 8, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 8, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 8, 2034 |
