Device and method for producing a multicolor yarn
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2022
Grant Date -
N/A
app pub date -
Jan 11, 2018
filing date -
Jan 12, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

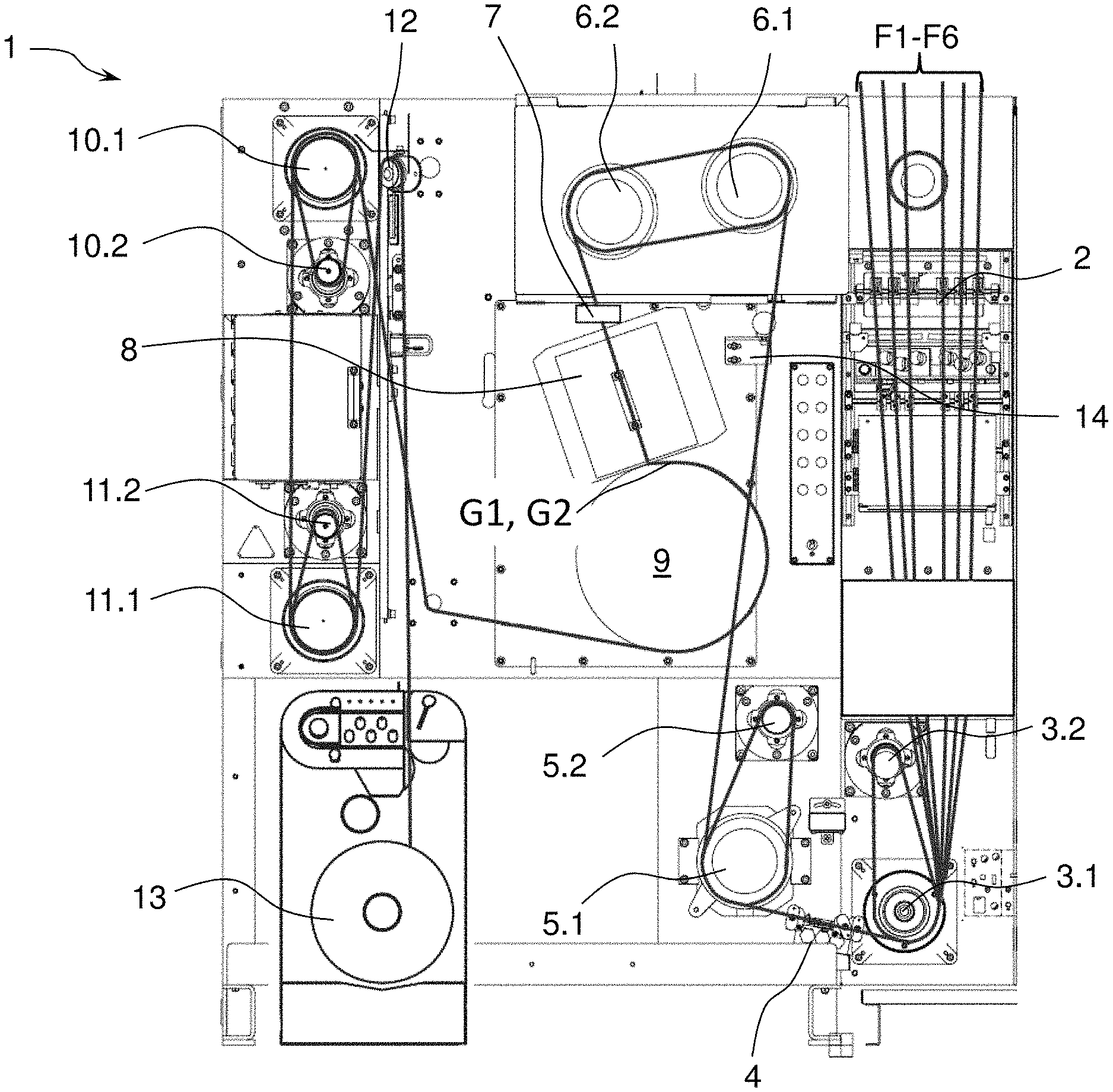

A draw device into which at least two filaments are guided for producing a multi-coloured yarn from differently coloured filaments which consist of a plurality of endless filaments includes a pair of intake rollers for receiving the at least two filaments. Two pairs of drafting system rollers follow the intake rollers to draw the at least two filaments. A texturizing device comprising a texturizing nozzle with a cooling drum is disposed downstream of the two pairs of drafting system rollers to texturize the at least two filaments, wherein at least one yarn is formed from the filaments in the texturizing nozzle. At least one further nozzle is disposed exclusively upstream of the texturizing device in which each filament is separately interlaced. The filaments are drawn on at least one of the two pairs of drafting system rollers at a speed of at least 1,700 m/min.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- D02J Class
- 47 Applications Filed
- 35 Patents Issued To-Date
- 74.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D02J Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 25, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 25, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 25, 2034 |
