Axial turbine with two supply levels
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2022
Grant Date -
N/A
app pub date -
Dec 20, 2019
filing date -
Dec 28, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

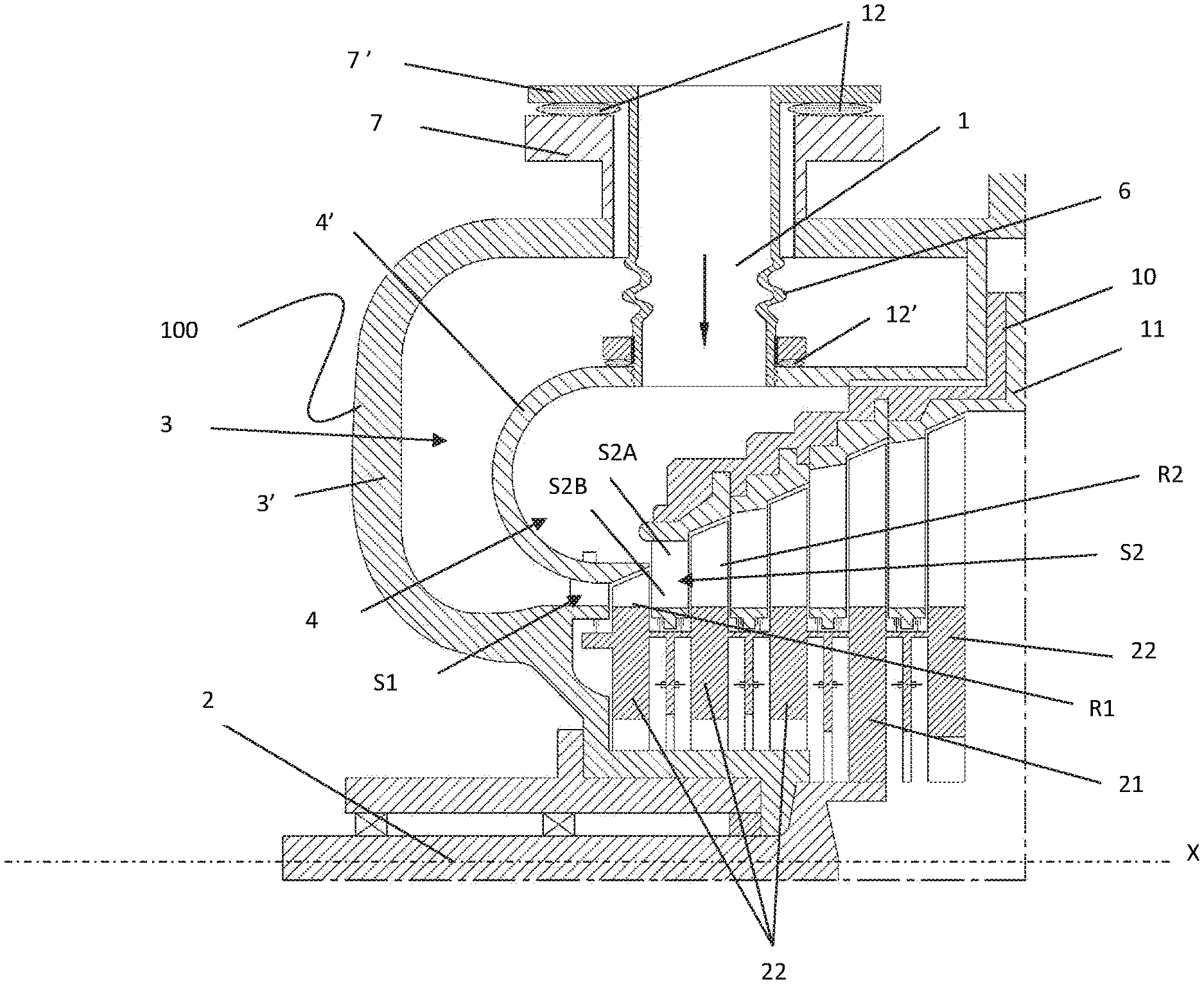

An axial turbine (100) with two supply levels for the expansion phase of a working fluid in a thermodynamic vapor cycle or in an organic Rankine cycle comprising a shaft (2), a plurality of rotor blade arrays (R1-Rn) and corresponding support disks (21, 22), a plurality of stator blade arrays (S1-Sn), further comprising a first inlet opening (5) and a second inlet opening (7′). The second volute (4) is positioned inside the first volute (3), the working fluid of the second supply level reaching upstream of a stator blade (S2,Sn) that is are immediately upstream of one of the rotor blade arrays that extends radially into both of the first and second supply levels.
