Mounting assembly for movable fairing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2022
Grant Date -
Mar 4, 2021
app pub date -
Aug 28, 2019
filing date -
Aug 28, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

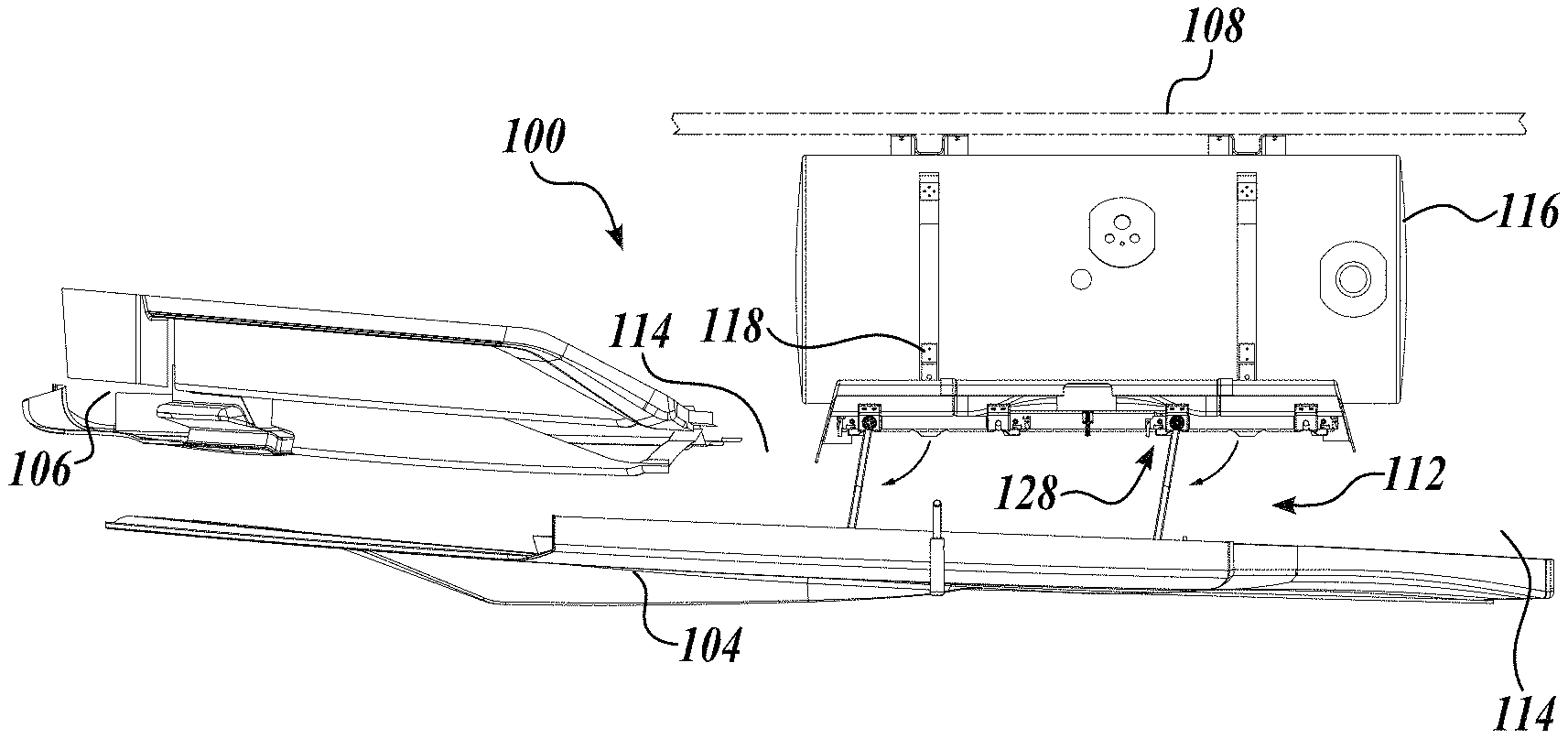

The disclosed technology relates to a moveable panel, such as a fairing, of a vehicle, such as a semi-truck. For a number of reasons, it may be desirable to gain access to the area behind the fairing, for example, to access batteries, air/gas tanks, auxiliary power units, and/or other components that are mounted to the vehicle frame. In order to move the fairing with respect to the vehicle frame, one or more examples of a mounting system are provided that enables the fairing to pivot/swing away from the vehicle frame in a first direction (e.g., forward toward the front wheel). In some embodiments, the fairing may also pivot/swing away from the frame in a second direction (e.g., rearward toward the rear wheels) opposite the first direction. This multiple pivoting/swinging movement of the fairing enables access to different locations behind the fairing.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2019 Application Filing Year
- B23Q Class
- 660 Applications Filed
- 454 Patents Issued To-Date
- 68.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23Q Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 11, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 11, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 11, 2034 |
