Bending die
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2022
Grant Date -
Nov 5, 2020
app pub date -
Sep 25, 2018
filing date -
Mar 1, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

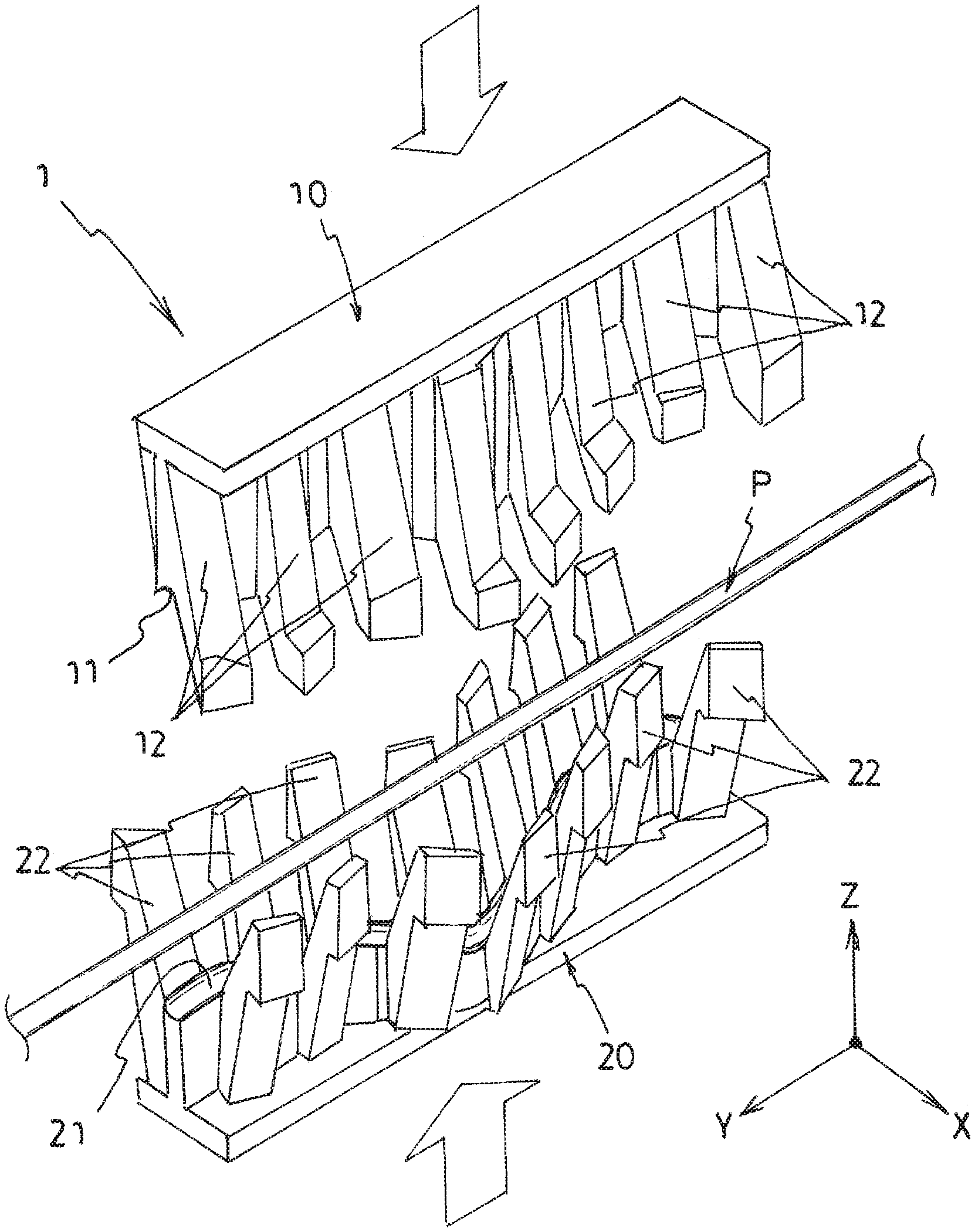

An object of the present invention is to provide a bending die that has a simple configuration and is capable of bending a rod-shaped body in a three-dimensional XYZ direction quickly and reliably, the bending die comprising a pair of forming dies clamped in a Z direction, wherein the forming dies have, respectively, rod-shaped body-forming recess portions, and rod-shaped body guide portions for guiding a rod-shaped body to the rod-shaped body-forming recess portions, the rod-shaped body-forming recess portions are each formed into a shape with a semicircular cross section that defines, between the forming dies when clamping the forming dies, a long, cylindrical cavity for forming the rod-shaped body bent in a three-dimensional XYZ direction, and the rod-shaped body guide portions are each formed into a V-shape that spreads outward from both sides of each of the rod-shaped body-forming recess portions having a semicircular cross section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B29C Class
- 6442 Applications Filed
- 4276 Patents Issued To-Date
- 66.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 11, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 11, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 11, 2034 |
