Movement amplifying actuation device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2022
Grant Date -
N/A
app pub date -
Jul 27, 2018
filing date -
Jul 27, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

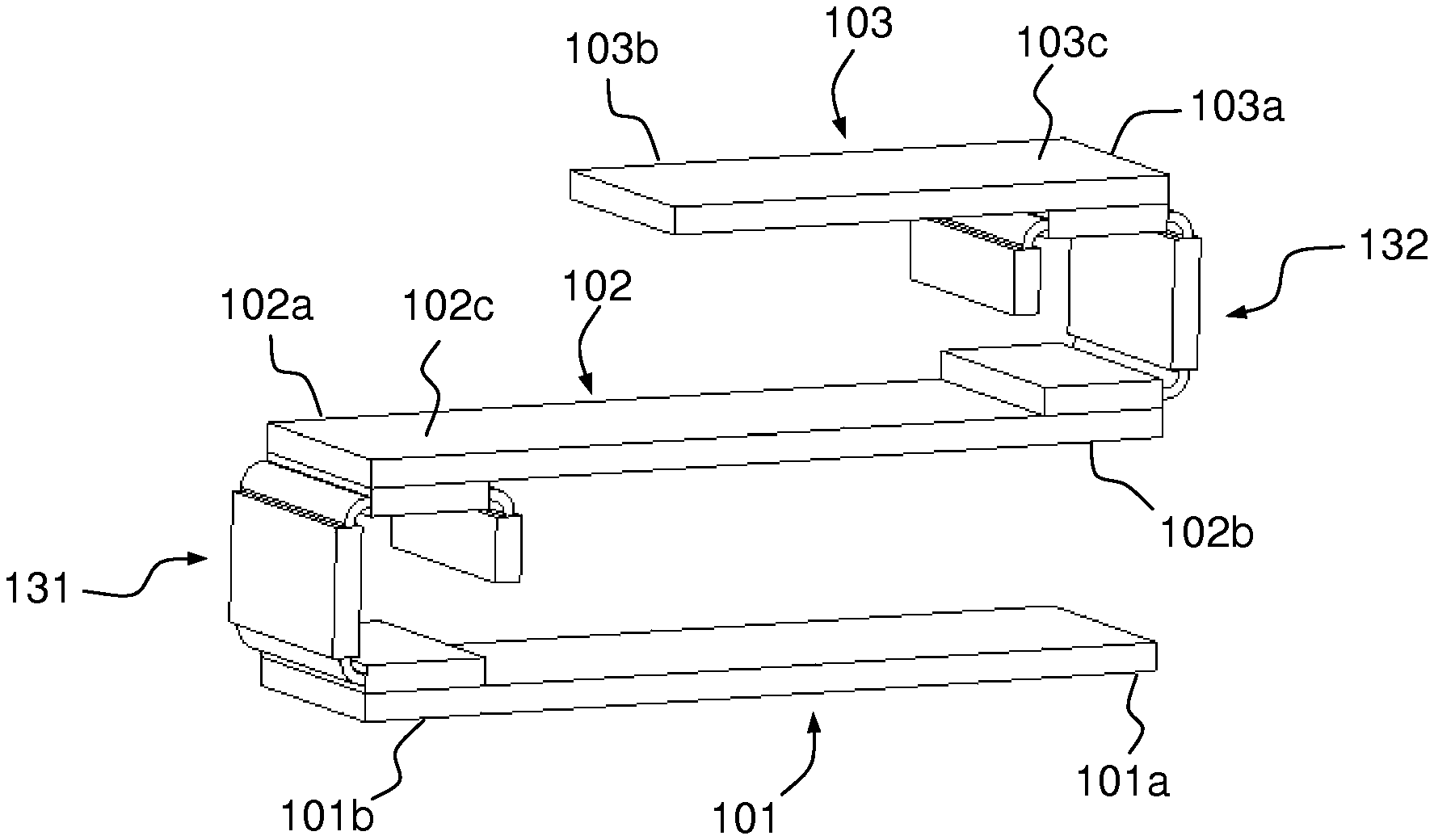

A movement amplifying actuation device may include two piezoelectric beams, one beam being attached at a fixed point, and a hinge connecting a first beam and a second beam between them. Each hinge may include a first flexible portion connected to the first beam, a second flexible portion connected to the second beam, a first rigid portion connecting the first and second flexible portions, a second rigid portion capable of being positioned against a fixed point, and a third flexible portion connecting the second beam to the second rigid portion at a pivot point of the second beam such that the assembly formed by the second rigid portion and the second beam forms a lever around the pivot point. The flexible and rigid portions may form a single piece.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- H02N Class
- 373 Applications Filed
- 256 Patents Issued To-Date
- 68.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02N Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 4, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 4, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2034 |
