Series and/or parallel connected alpha, beta, and gamma voltaic cell devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2022
Grant Date -
Jul 29, 2021
app pub date -
Apr 12, 2021
filing date -
May 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

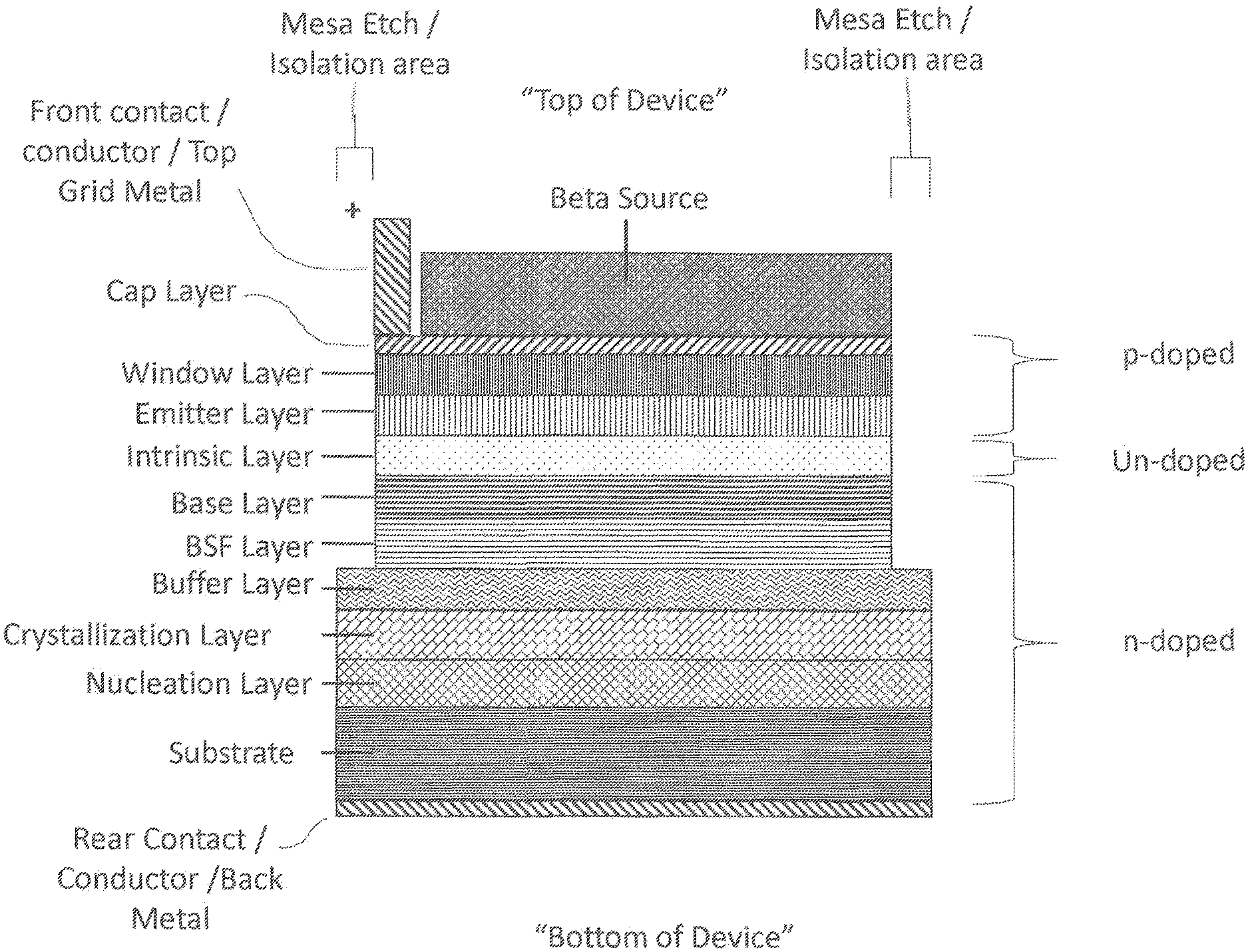

A device for producing electricity. The device includes a substrate having spaced apart first and second surfaces and doped a first dopant type, first semiconductor material layers disposed atop the first substrate surface and doped the first dopant type, and second semiconductor material layers disposed atop the first semiconductor material layers and doped a second dopant type. A first contact is in electrical contact with the second substrate surface or in electrical contact with one of the first semiconductor material layers. A beta particle source emits beta particles that penetrate into the semiconductor material layers; the beta particle source is proximate the uppermost layer of the second plurality of semiconductor material layers. A second contact is in electrical contact with one of the second plurality of semiconductor material layers. In one embodiment, bi-polar contacts (the first and second contacts) are co-located on each major face of the device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- H01L Class
- 28775 Applications Filed
- 15216 Patents Issued To-Date
- 52.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 4, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 4, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2034 |
