Steering wheel core metal

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 11459012
APP PUB NO 20210371002A1
SERIAL NO

17327822

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

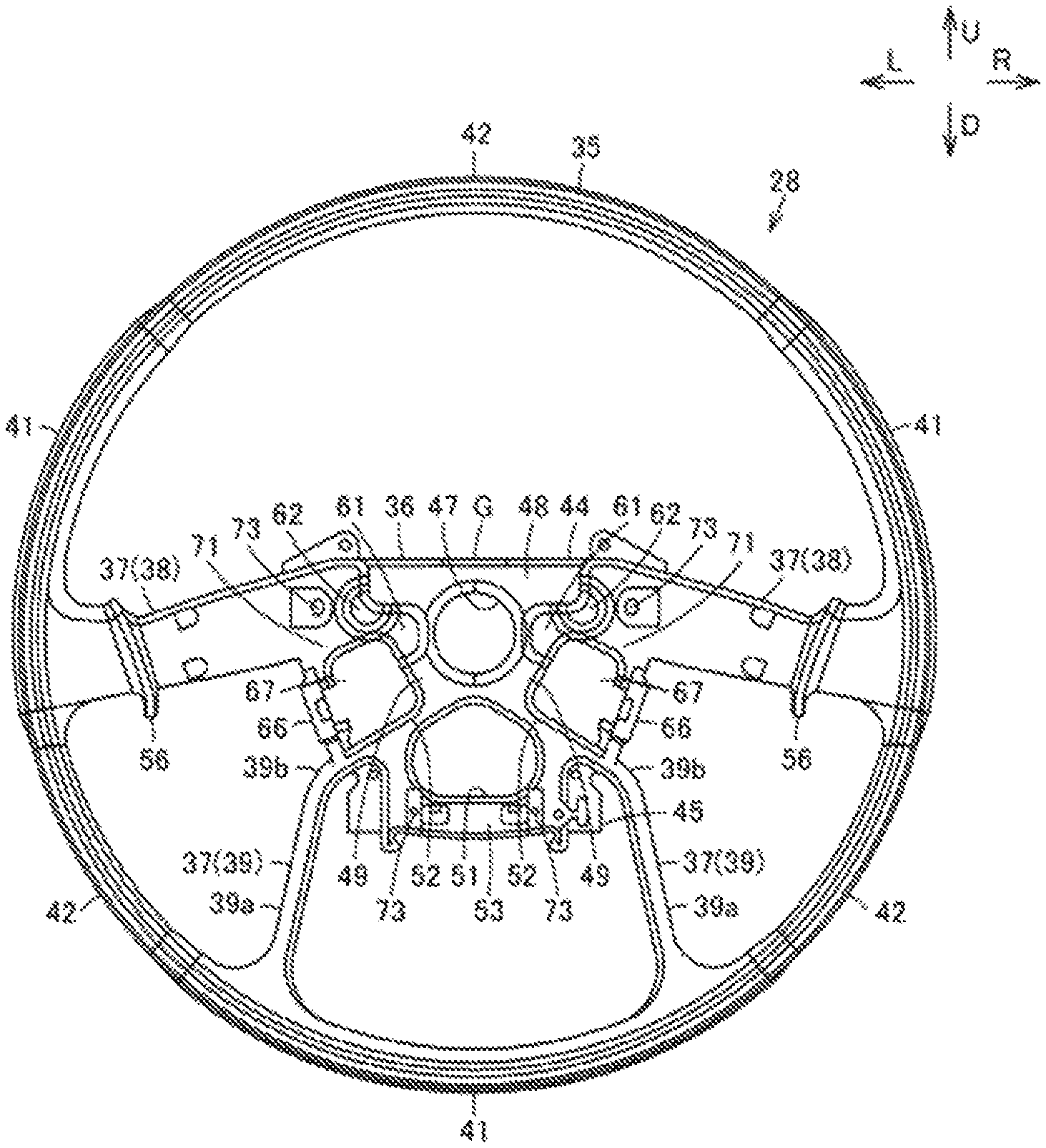

There is provided a core of a steering wheel to which a module can be stably fixed while manufacturing cost is suppressed. Core (28) includes boss core portion (36) at which a gate of a mold is set and which is connected to a steering shaft. Core (28) includes a rim core portion that is positioned around boss core portion (36). Core (28) includes a plurality of spoke core portions (37) that connect boss core portion (36) to the rim core portion. Core (28) includes connecting portion (66) that includes fixing portion (66e) to which a module is fixed and connects spoke core portions (37) positioned on upper and lower sides in a neutral state of the steering wheel. Core (28) includes expansion portion (71) of which a width gradually increases downward toward upper end portion (66a) of connecting portion (66) in the neutral state of the steering wheel.
