External fixation alignment gauge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2022
Grant Date -
Nov 12, 2020
app pub date -
Aug 29, 2018
filing date -
Aug 31, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

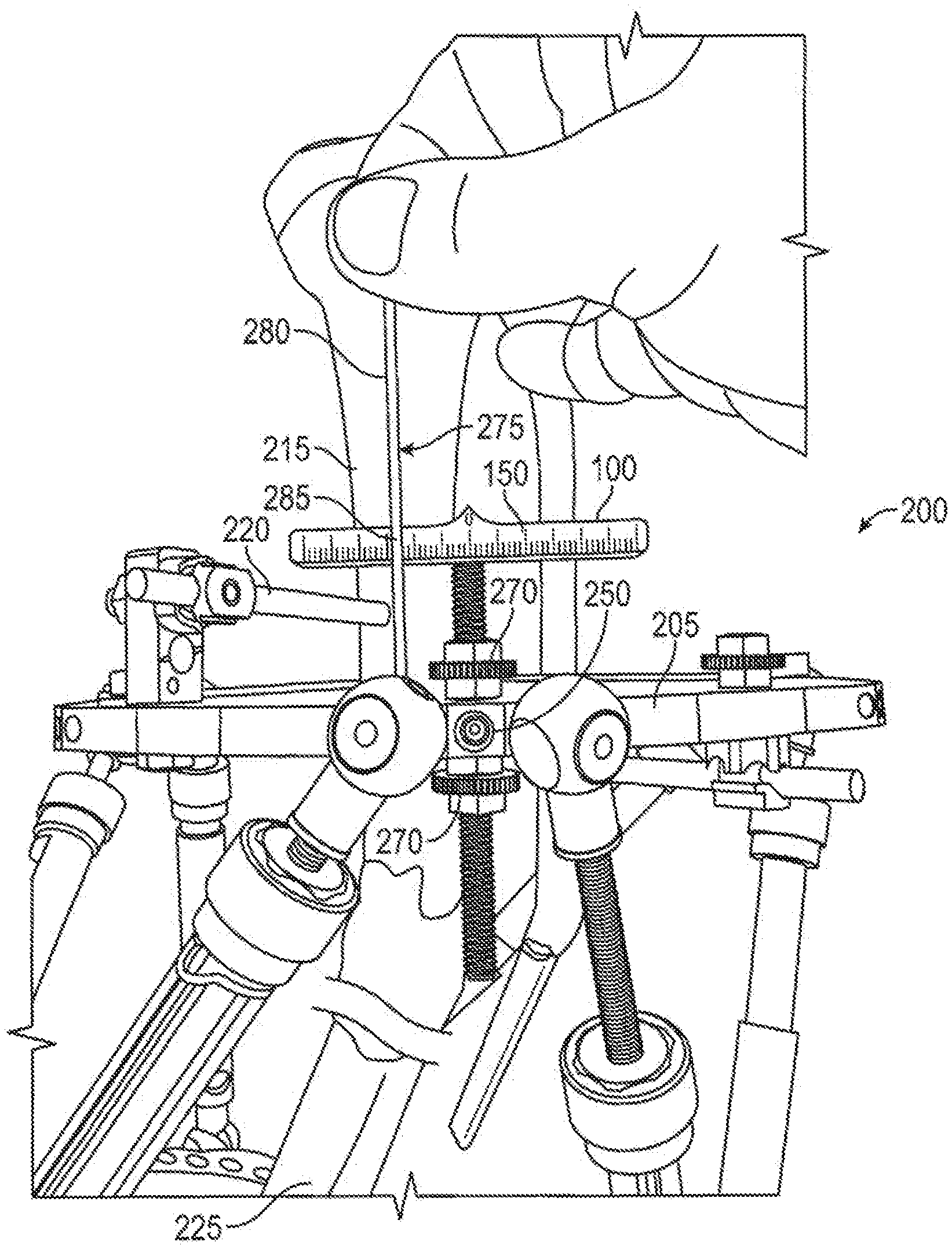

A device for use with orthopedic surgical fixation devices, and more particularly, to an alignment gauge for use with an external fixation system comprising one or more support members (rings, plates, etc.) connected to one or more bone members wherein a plurality of struts of adjustable length support and/or connect the one or more support members. The alignment gauge indicating to a user, such as a surgeon, the degree of translational offset between one bone member and a center point of at least one of the support members in at least one of an anterior-posterior or medial-lateral plane.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 4, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 4, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2034 |
