Film structure, shell, and electronic device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2022
Grant Date -
Dec 24, 2020
app pub date -
Jun 16, 2020
filing date -
Jun 19, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

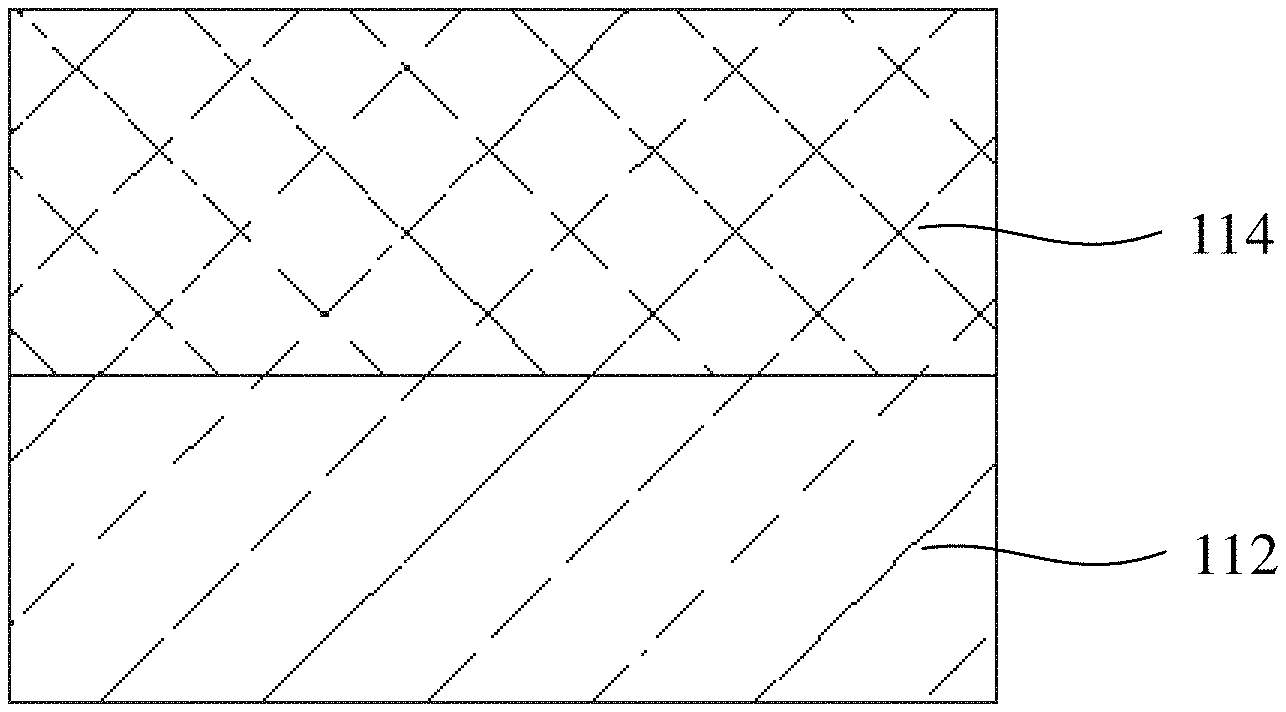

A film structure, a method for manufacturing the film structure, a shell, and an electronic device are disclosed. The film structure includes a first film assembly and a second film assembly. The first film assembly includes a first film and a texture layer stacked sequentially. The second film assembly includes a second film and a ribbon unit disposed on the second film. The second film assembly is laminated on the first film assembly. The ribbon unit is located adjacent to the first film, and an orthographic projection of the ribbon unit projected on a plane on which the texture layer is located falls in the texture layer.
