Vehicle drive system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2022
Grant Date -
May 21, 2020
app pub date -
Nov 13, 2019
filing date -
Nov 16, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

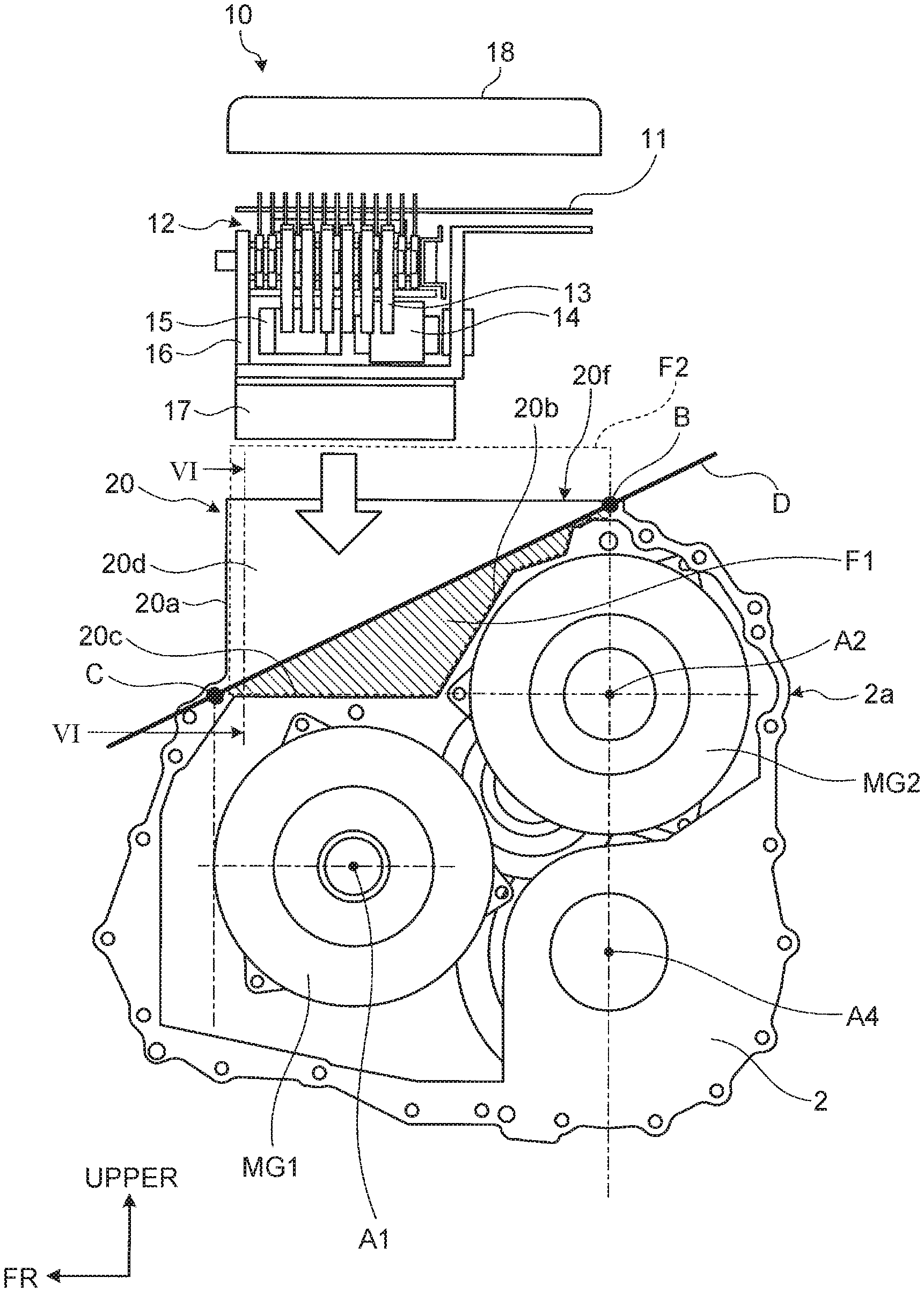

A vehicle drive system includes: a case accommodating a first rotary electric machine and a second rotary electric machine that are arranged to have respective rotational axes parallel to each other and to be radially adjacent to each other; and a power control device configured to control the first rotary electric machine and the second rotary electric machine. The case includes a peripheral wall portion surrounding the first rotary electric machine and the second rotary electric machine, and the power control device is mounted in a mounting section provided on an outer peripheral surface of the peripheral wall portion. A lower part of the power control device is located in a space surrounded by a line connecting a first cross point, and a second cross point, the first rotary electric machine and the second rotary electric machine.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP7155925 | Nov 16, 2018 |
| KR | B1 | KR102289539 | Nov 13, 2019 |
| EP | B1 | EP3653418 | Nov 14, 2019 |
| CN | B | CN111196140 | Nov 14, 2019 |
