Optical cored wire immersion nozzle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2022
Grant Date -
Jul 4, 2019
app pub date -
Aug 24, 2017
filing date -
Sep 1, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

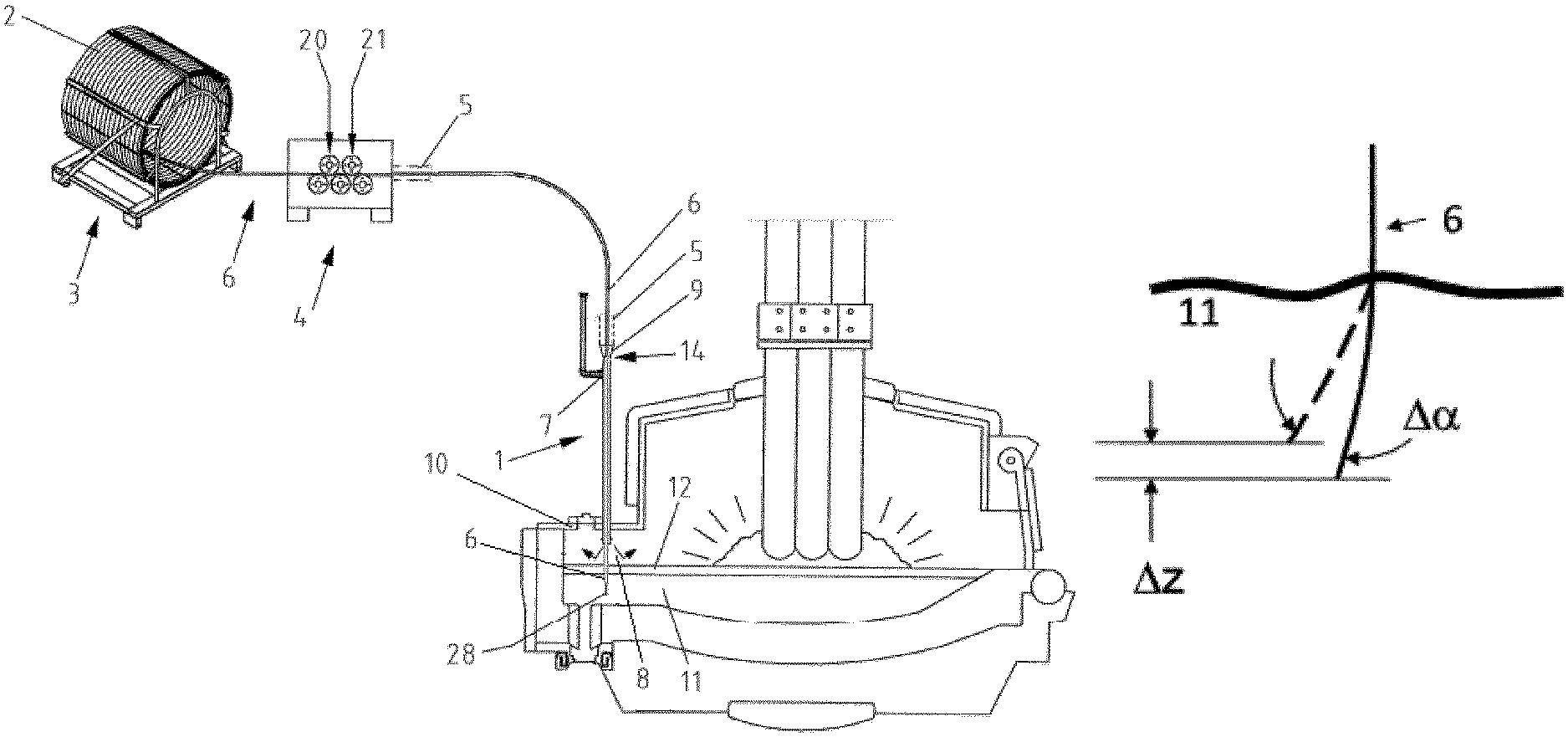

The invention concerns a method for feeding an optical cored wire into a molten metal bath and an immersion system and an immersion nozzle to carry out the method. The optical cored wire (6) is decoiled, a feeding and straightening device (4) with a plurality of rollers (20, 21) conducts feeding of the optical cored wire (6) in a feeding direction towards the metal bath (11) as well as a first straightening of the optical cored wire (6), and subsequently a separated further plurality of non-motor driven nozzle straighteners (13) arranged between the feeding and straightening device (4) and the metal bath (11) conducts a second straightening of the optical cored wire (6). Very high precision of temperature measurement can thereby be achieved.
First Claim
Other Claims data not available
Family
International Classification(s)
- C22B:PRODUCTION OR REFINING OF METALS
- G01K:MEASURING TEMPERATURE; MEASURING QUANTITY OF HEAT;....
- G01J:MEASUREMENT OF INTENSITY, VELOCITY, SPECTRAL CONTE....
- G01N:INVESTIGATING OR ANALYSING MATERIALS BY DETERMININ....
- F27D:DETAILS OR ACCESSORIES OF FURNACES, KILNS, OVENS, ....
- B21F:WORKING OR PROCESSING OF WIRE
- C21C:PROCESSING OF PIG-IRON, e.g. REFINING, MANUFACTURE....
- 2017 Application Filing Year
- C22B Class
- 283 Applications Filed
- 184 Patents Issued To-Date
- 65.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C22B Class
- 81.85 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 13, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 13, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 13, 2034 |
