Secondary flow rectifier with integrated pipe
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 6, 2022
Grant Date -
N/A
app pub date -
Mar 12, 2020
filing date -
Mar 15, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

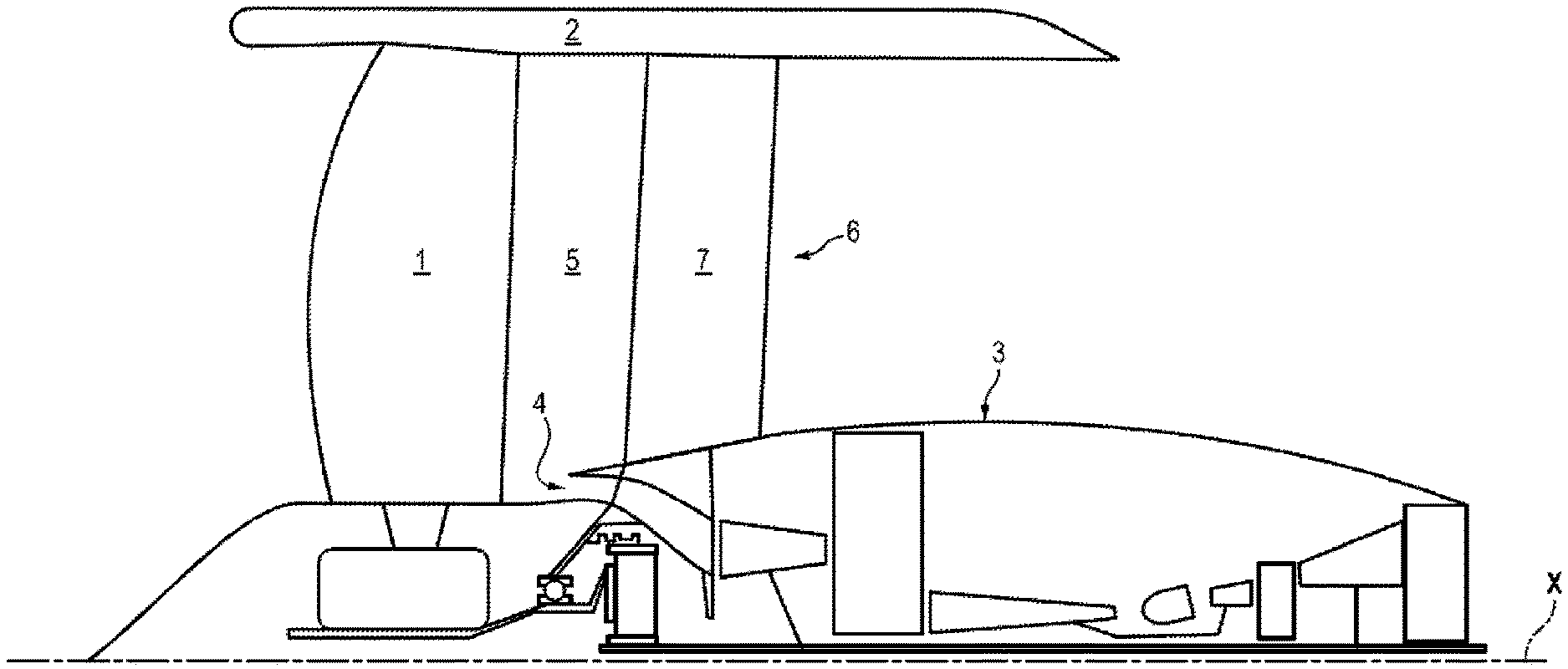

The invention relates to an assembly for a turbomachine extending along an axis (X) and comprising: —a ferrule (32) designed to define a fan duct (5) of a gas stream of the turbomachine, —a fan casing (2) radially surrounding the ferrule (32) and defining with the ferrule (32) the fan duct (5), —a rectifier (6) comprising a plurality of vanes (7) comprising a first vane (7a) and a second vane (7b) adjacent to the first vane (7a), the vanes defining between them a converging flow channel (13) designed to direct and accelerate the stream by means of an inlet section (14a) included in a plane non-perpendicular to the axis of the turbomachine and an outlet section included in a plane (14b) perpendicular to the axis (X) of the turbomachine, the first vane (7a) and the second vane (7b) each having an unducted downstream portion which forms a trailing edge.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- F03B Class
- 197 Applications Filed
- 122 Patents Issued To-Date
- 61.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F03B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 6, 2034 |
