Acoustic zoned system for turbofan engine exhaust application
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 30, 2022
Grant Date -
N/A
app pub date -
Apr 30, 2021
filing date -
Apr 30, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

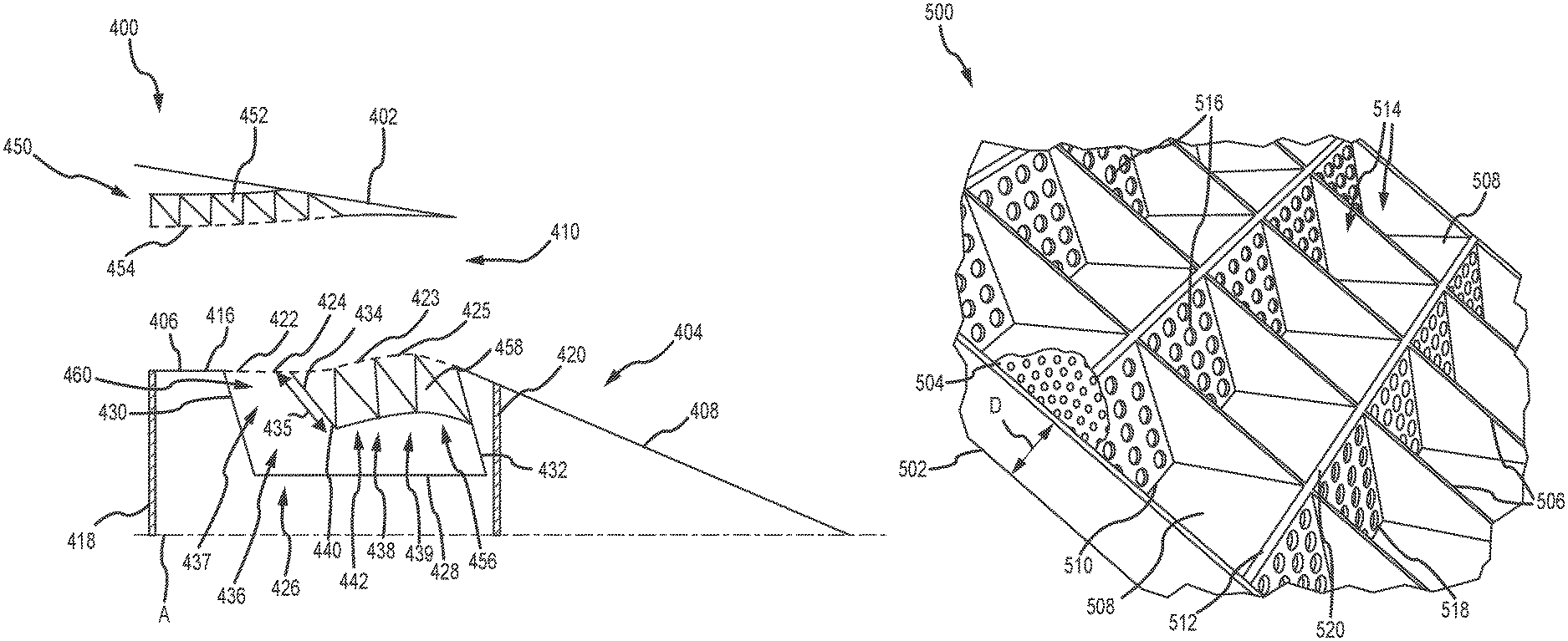

A center plug for attenuating noise in a gas turbine engine includes an inner skin, the inner skin having a substantially cylindrical shape and extending along an axial centerline; a forward bulkhead disposed proximate a forward end of the inner skin, the forward bulkhead connected to and extending radially outward from the inner skin; an aft bulkhead disposed proximate an aft end of the inner skin, the aft bulkhead connected to and extending radially outward from the inner skin; and an intermediate bulkhead, the intermediate bulkhead positioned intermediate the forward bulkhead and the aft bulkhead, the intermediate bulkhead spaced a distance from the inner skin and extending radially outward from the inner skin, the distance defining a radially inner portion of the intermediate bulkhead and an annular opening.
