Lightweight enhanced ballistic armor system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2022
Grant Date -
Dec 3, 2015
app pub date -
Mar 18, 2015
filing date -
Jun 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

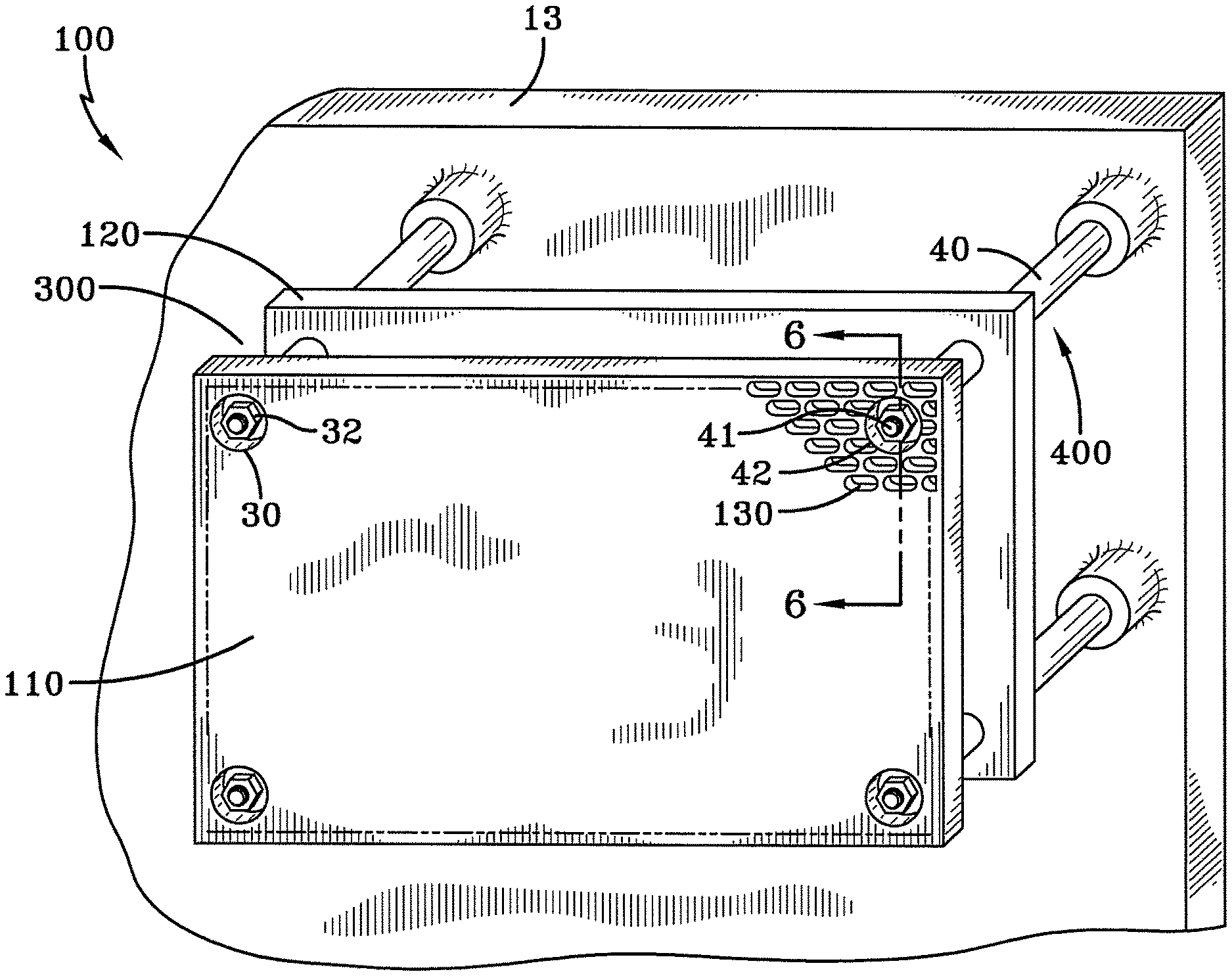

A lightweight ballistic armor system comprising at least one metal strike face plate, a laminate composite backing material secured to the at least one metal strike face plate and an optional air space provided between the metal strike face plate and the laminate composite backing material. The metal strike face plate or plates has a predetermined defined thickness and has a plurality of slotted holes set at an angle relative to the vertical orientation or axis of the metal strike face plate, or which are straight. The plurality of slotted holes is sufficiently small to prevent the passage of a projectile or fragment therethrough. The laminate composite backing material comprises at least one material selected from an aramid fiber material, S-glass, E-glass, polypropylene and UHMWPE, and is provided in combination with a polymer-based resin material. The optional air space provided between the metal strike face plate and the composite backing material has a depth in the range between 0-12 inches.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F41H Class
- 277 Applications Filed
- 215 Patents Issued To-Date
- 77.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F41H Class
- 52.50 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 23, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 23, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2034 |
