Combination tool for marking, measuring, and checking level
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2022
Grant Date -
Jul 16, 2020
app pub date -
Jan 10, 2020
filing date -
Jan 14, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

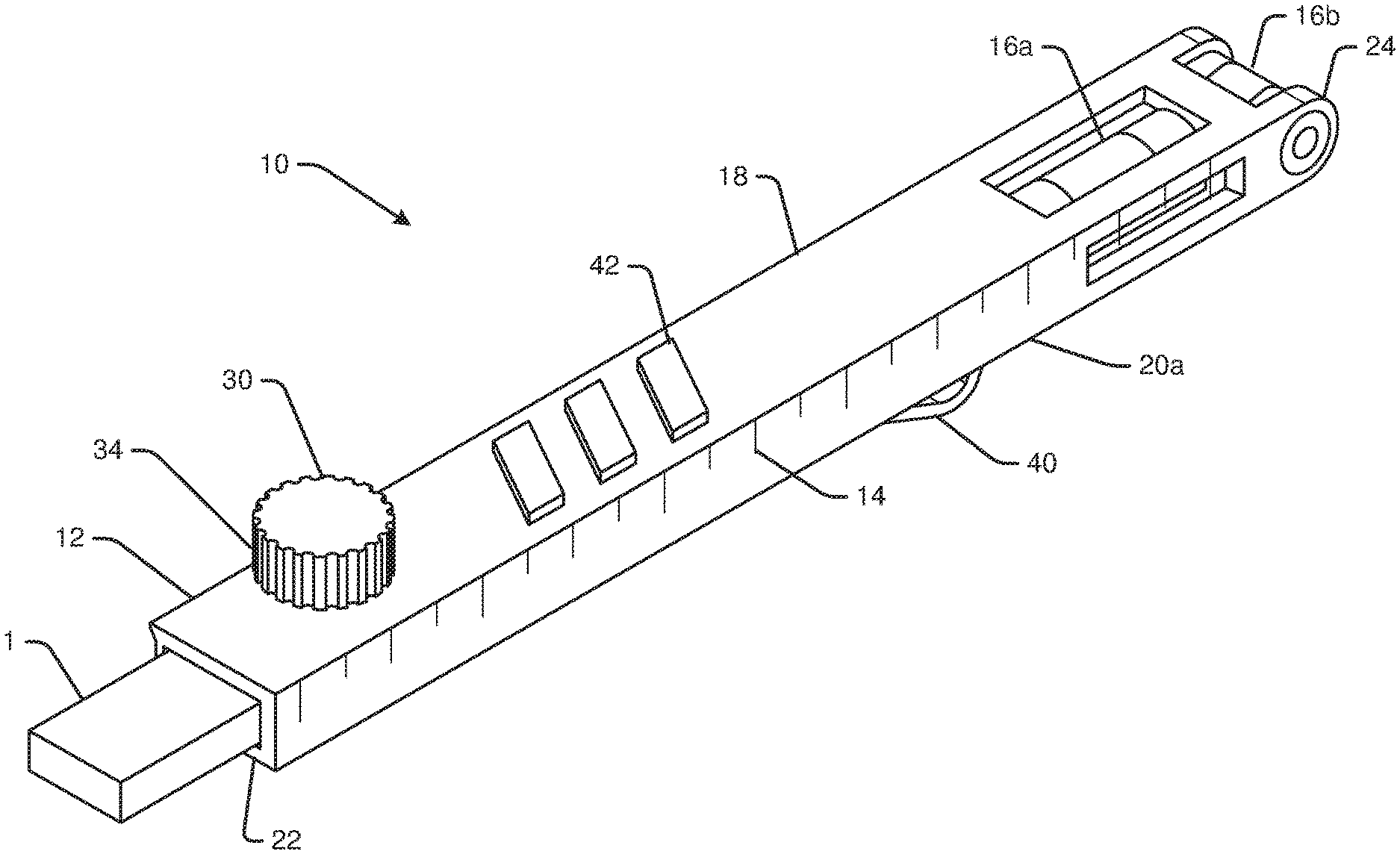

An example combination tool for marking, measuring, and checking level includes a holder for a marking device (e.g., a soapstone). The holder has a body formed by a first side, a second side, a front side, a back side a top side, and a flat bottom side. A securement releasably secures the marking device at least partially within the body. Turning the securement in a first direction tightens the marking device within the body of the holder. Turning the securement in a second direction loosens the marking device in the body of the holder so that the marking device slides in and out through an opening formed in the front side of the body to adjust a position of the marking device for use in marking. The example combination tool may also include measuring markings, a level, a clip, and a grip.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B43K Class
- 107 Applications Filed
- 80 Patents Issued To-Date
- 74.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B43K Class
- 78.42 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 16, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 16, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 16, 2034 |
