Detection of a protective conductor failure by means of an active shield
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2022
Grant Date -
Nov 22, 2018
app pub date -
Apr 25, 2018
filing date -
May 19, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

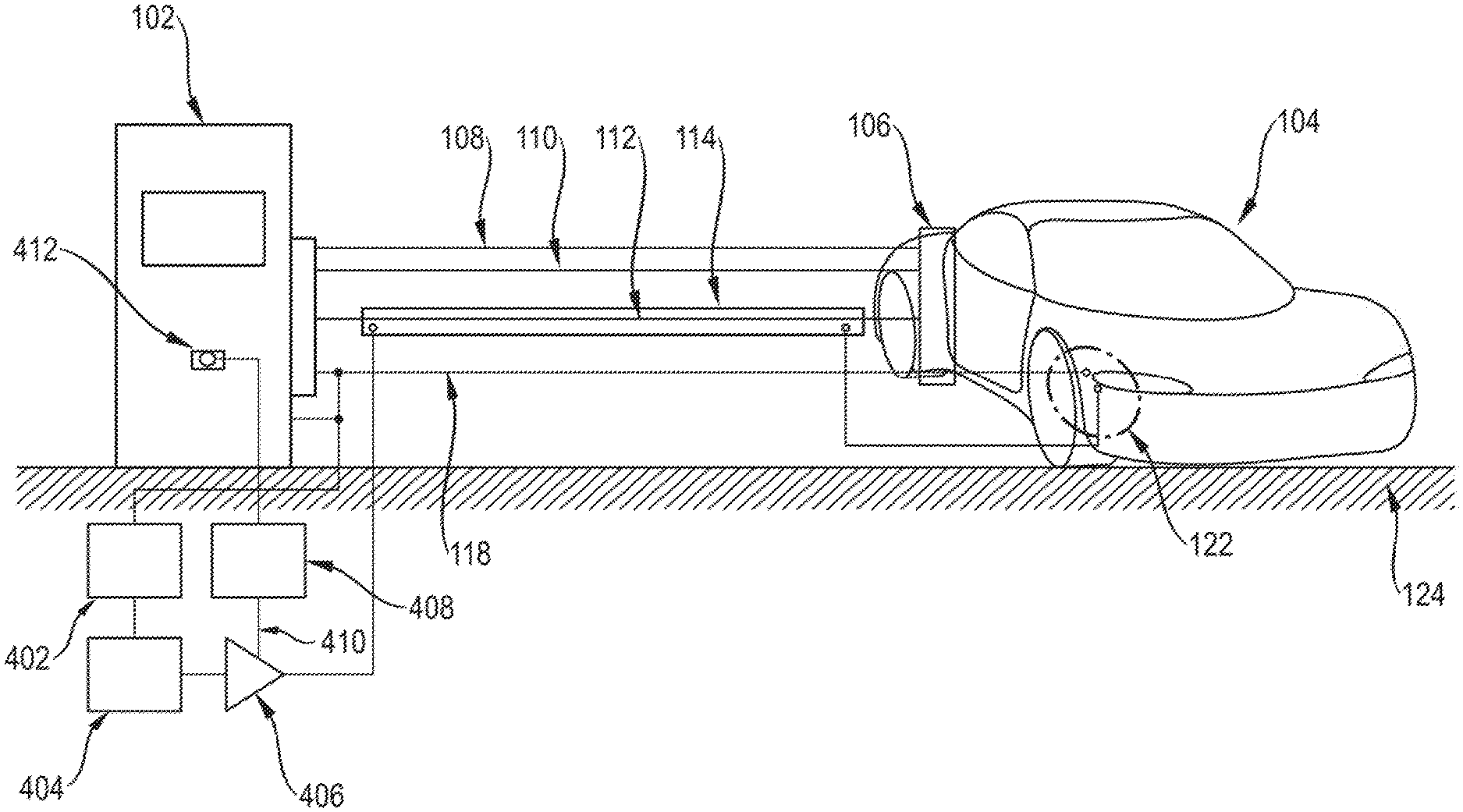

Method for detecting a protective conductor failure inside a cable including a plurality of conductors, in which at least one conductor has a shield and this shield is respectively connected to a potential at a first end and at a second end of the cable, wherein, in order to drive its potential to a predefined potential value, the shield is actively electrically supplied at at least one end of the cable. In this case, the cable may be a charging cable which is connected, by the first end, to a charging pole and is connected, by the second end, to a battery configured to be installed in an electric vehicle, and the shield is actively supplied at the first end of the cable which is connected to the charging pole.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01R Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 2, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 2, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2034 |
