Method for managing the operation of an object that is able to contactlessly communicate with a reader
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2022
Grant Date -
Oct 24, 2019
app pub date -
Jun 28, 2019
filing date -
Sep 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

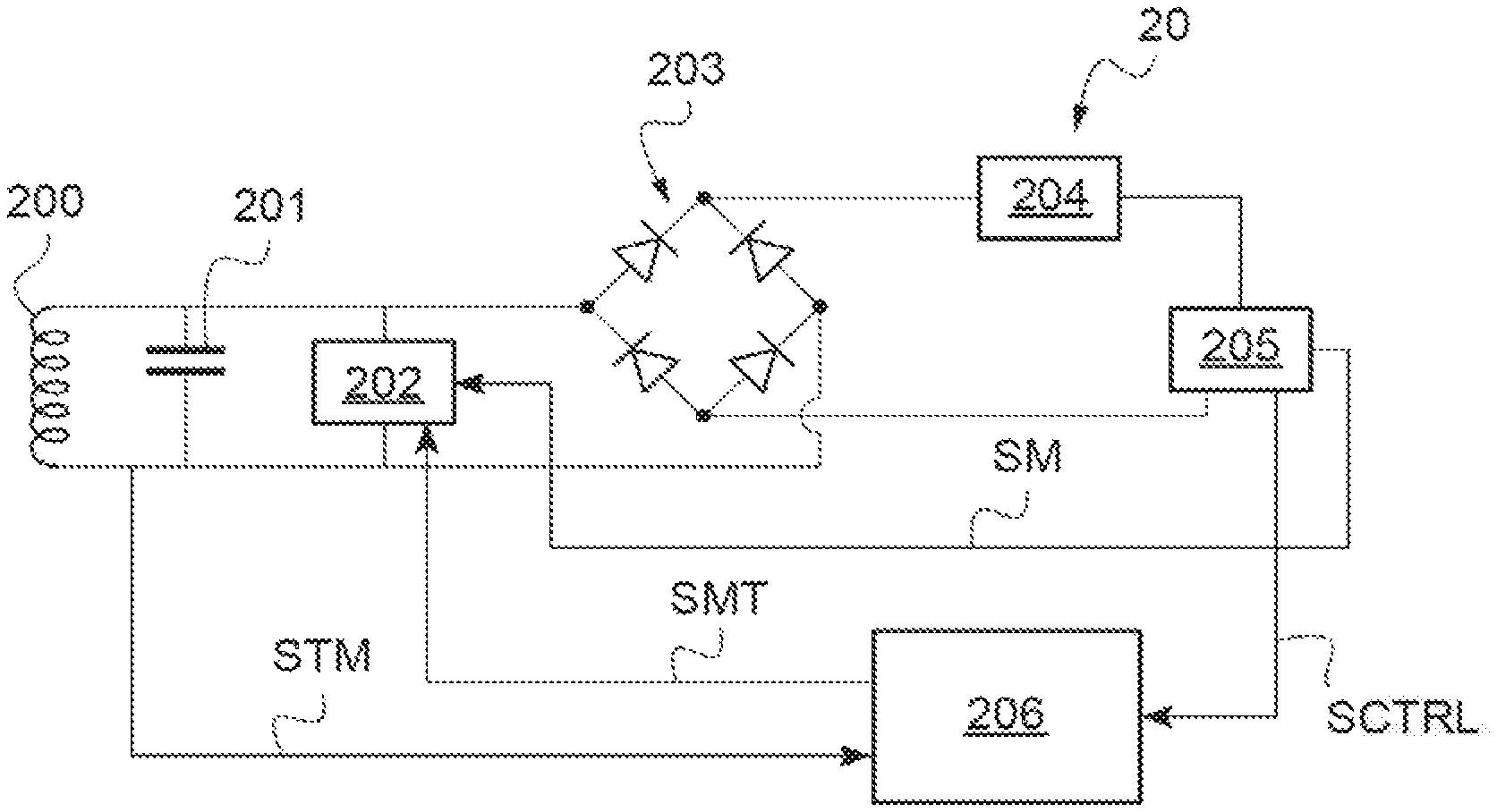

A device for managing operation of an object capable of contactless communication with a reader magnetically coupled to the object includes a modulator configured to modulate an impedance of a load connected across terminals of an antenna of the object during a transmission phase during which information is transmitted from the object to the reader. The device further includes a monitor configured to carry out a monitoring phase, prior to the transmission phase. The monitoring phase includes a test modulation of the impedance of the load, a monitoring of a level of amplitude modulation of a modulated test signal present at the antenna of the object and resulting from the test modulation, and a capacitive modification of the impedance of the load if this level is lower than a threshold.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- H04B Class
- 10231 Applications Filed
- 7872 Patents Issued To-Date
- 76.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 2, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 2, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2034 |
