Method, apparatus and system for attaching a label on a product
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2022
Grant Date -
Aug 27, 2020
app pub date -
Feb 21, 2020
filing date -
Feb 22, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract
The present disclosure relates to a method of attaching a shrinkable label on at least one product wherein the shrinkable label comprises a film comprising heat shrinkable material and photothermic material, the method comprising:

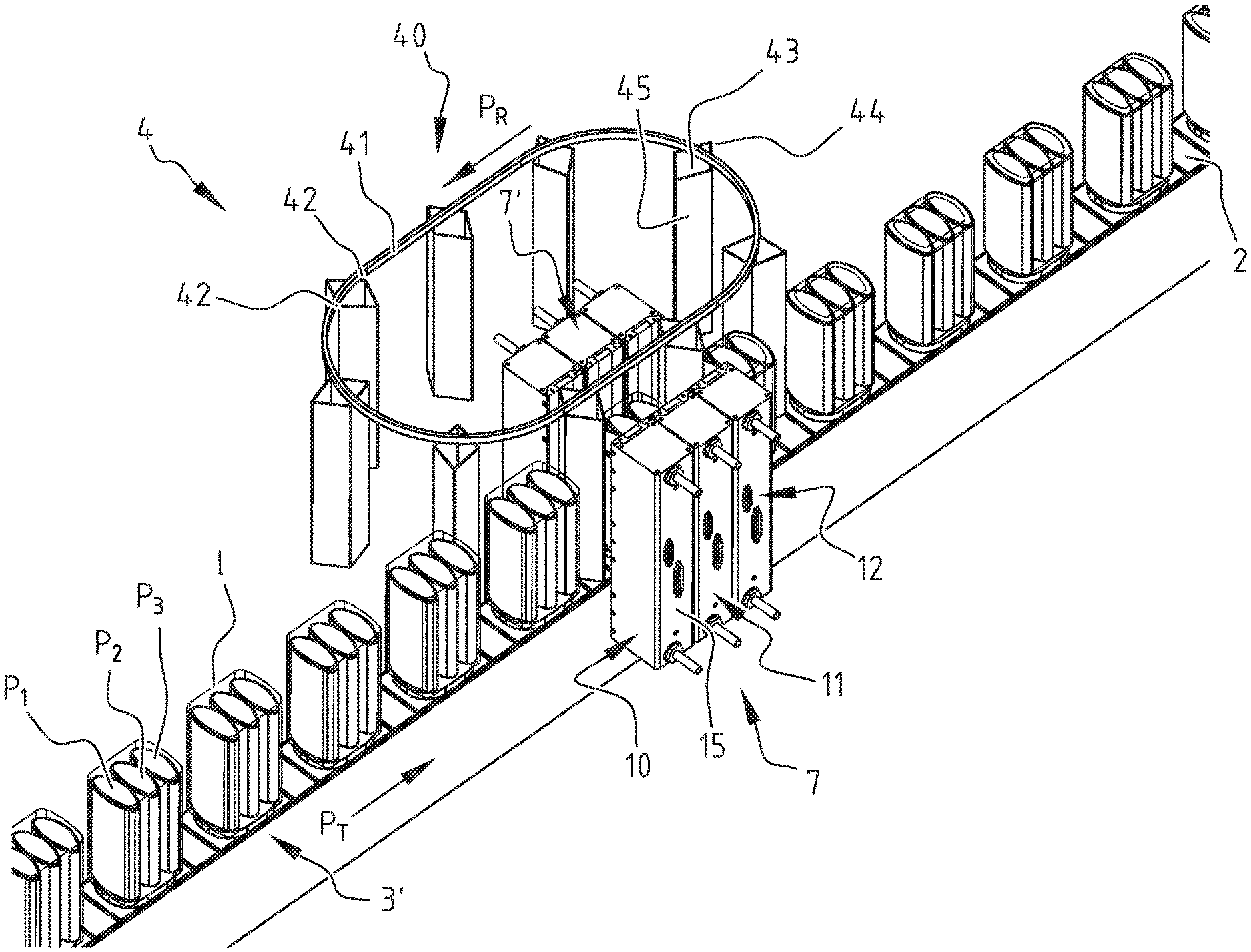

- transporting a plurality of products on a product conveyor through an irradiation volume defined by a plurality of UV light emitters arranged sideways of the product conveyor;arranging at least one reflector between consecutive products on the product conveyor while the at least one product is being transported;controlling the UV light emitters to emit UV-light towards the shrinkable label arranged around the at least one product in the irradiation volume and towards the at least one reflector arranged between consecutive products in order for the photothermic material of the shrinkable label to heat up causing the heat shrinkable material to shrink around the at least one product.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2020 Application Filing Year
- B65C Class
- 104 Applications Filed
- 62 Patents Issued To-Date
- 59.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65C Class
- 78.18 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 2, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 2, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2034 |
