Reverse osmosis treatment system for recovering energy generated both at brine and permeate sides during sea water desalination
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 26, 2022
Grant Date -
Nov 7, 2019
app pub date -
May 28, 2019
filing date -
Dec 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

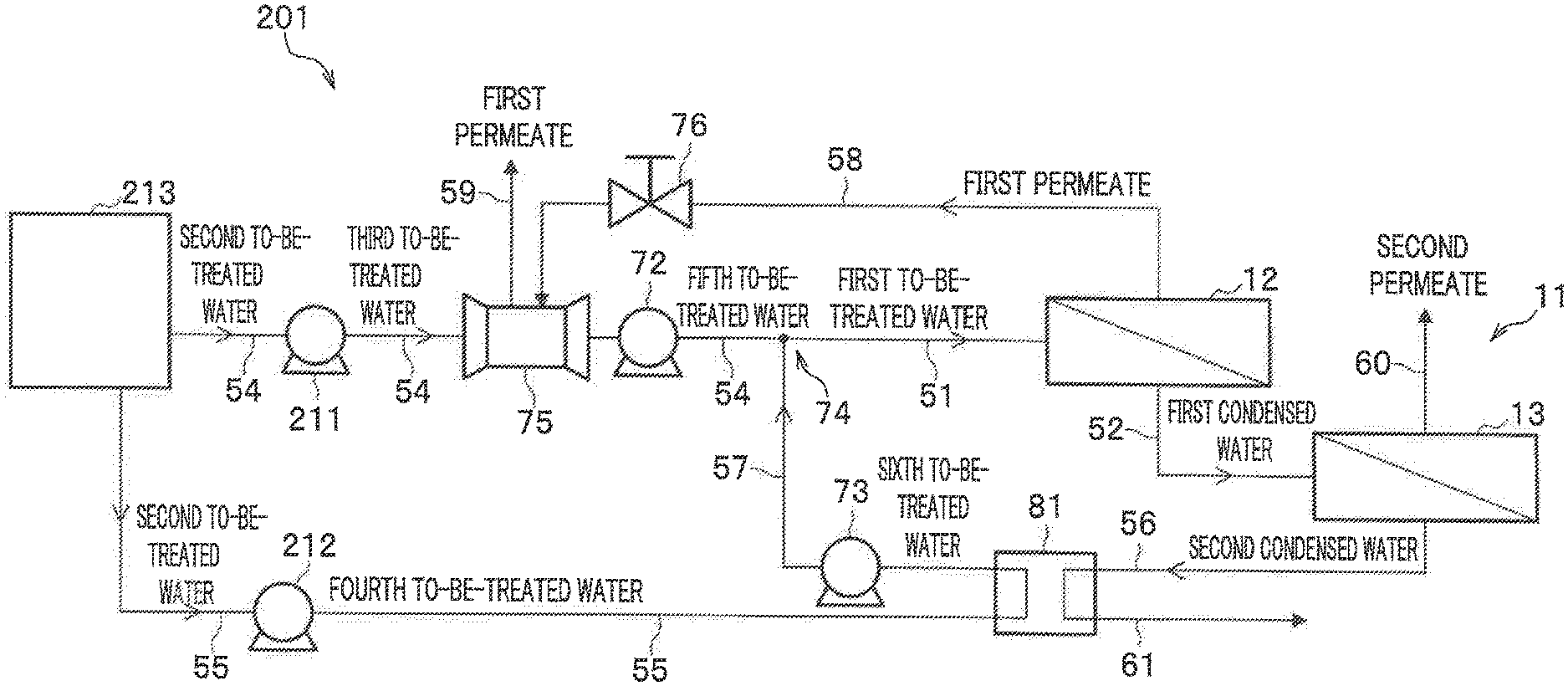

Provided is a reverse osmosis treatment system capable of simultaneously and efficiently recovering energy generated both at brine and permeate sides. The system comprises a branched portion configured to divide second to-be-treated water into third and fourth to-be-treated water; a high-pressure pump configured to pressurize the third to-be-treated water thereby to feed fifth to-be-treated water having a higher pressure than the to-be-treated water before divided; a displacement type of first energy recovery device configured to exchange pressures between the fourth to-be-treated water and brine thus separated by a reverse osmosis treatment device, thereby to produce sixth to-be-treated water having a higher pressure than the fourth one; and a second energy recovery device configured to raise a pressure of the third to-be-treated water located at a downstream side of the branched portion with a pressure of first permeate thus separated by the reverse osmosis treatment device.
First Claim
Other Claims data not available
Family
International Classification(s)
- F01L:CYCLICALLY OPERATING VALVES FOR MACHINES OR ENGINE....
- F04B:POSITIVE-DISPLACEMENT MACHINES FOR LIQUIDS; PUMPS
- F03B:MACHINES OR ENGINES FOR LIQUIDS
- F04F:PUMPING OF FLUID BY DIRECT CONTACT OF ANOTHER FLUI....
- F01D:NON-POSITIVE-DISPLACEMENT MACHINES OR ENGINES, e.g....
- C02F:TREATMENT OF WATER, WASTE WATER, SEWAGE, OR SLUDGE....
- B01D:SEPARATION
- 2019 Application Filing Year
- F01L Class
- 342 Applications Filed
- 268 Patents Issued To-Date
- 78.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01L Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 26, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 26, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 26, 2034 |
