Method and system for determining in real time bearing capacity of foundation tamped by high-speed hydraulic tamper
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 12, 2022
Grant Date -
Feb 4, 2021
app pub date -
Nov 19, 2019
filing date -
Nov 20, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

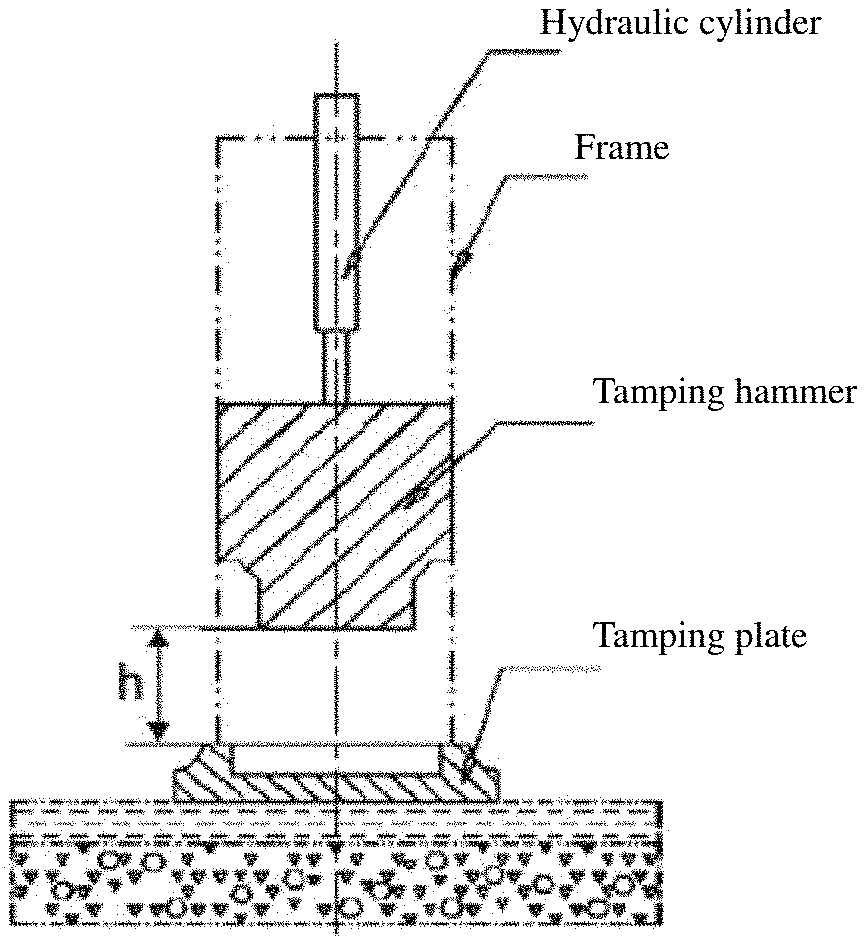

A method and system determines in real time the bearing capacity of a foundation tamped by a high-speed hydraulic tamper. Four wireless acceleration sensors are arranged uniformly along tamping plate edges, sensor position tamping points are determined; the soil is tamped, the plate peak acceleration slows, tends to, and reaches stabilization in a range, a relationship curve between the tamping number and plate peak acceleration is determined; different loads are applied to the foundation to obtain corresponding settlements, coordinate axes are established, points are drawn according to each test data group and sequentially connected with a smooth curve to obtain a settlement-load curve, and the curve is fitted; a tamping number and foundation bearing capacity relationship is obtained; the two relationship curves are combined to obtain a relationship curve, and the foundation bearing capacity magnitude at a certain moment during the tamping operation is determined by using the acceleration index.
First Claim
Other Claims data not available
