Multi-unit coin ejection apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 5, 2022
Grant Date -
Aug 20, 2020
app pub date -
Feb 19, 2020
filing date -
Feb 20, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

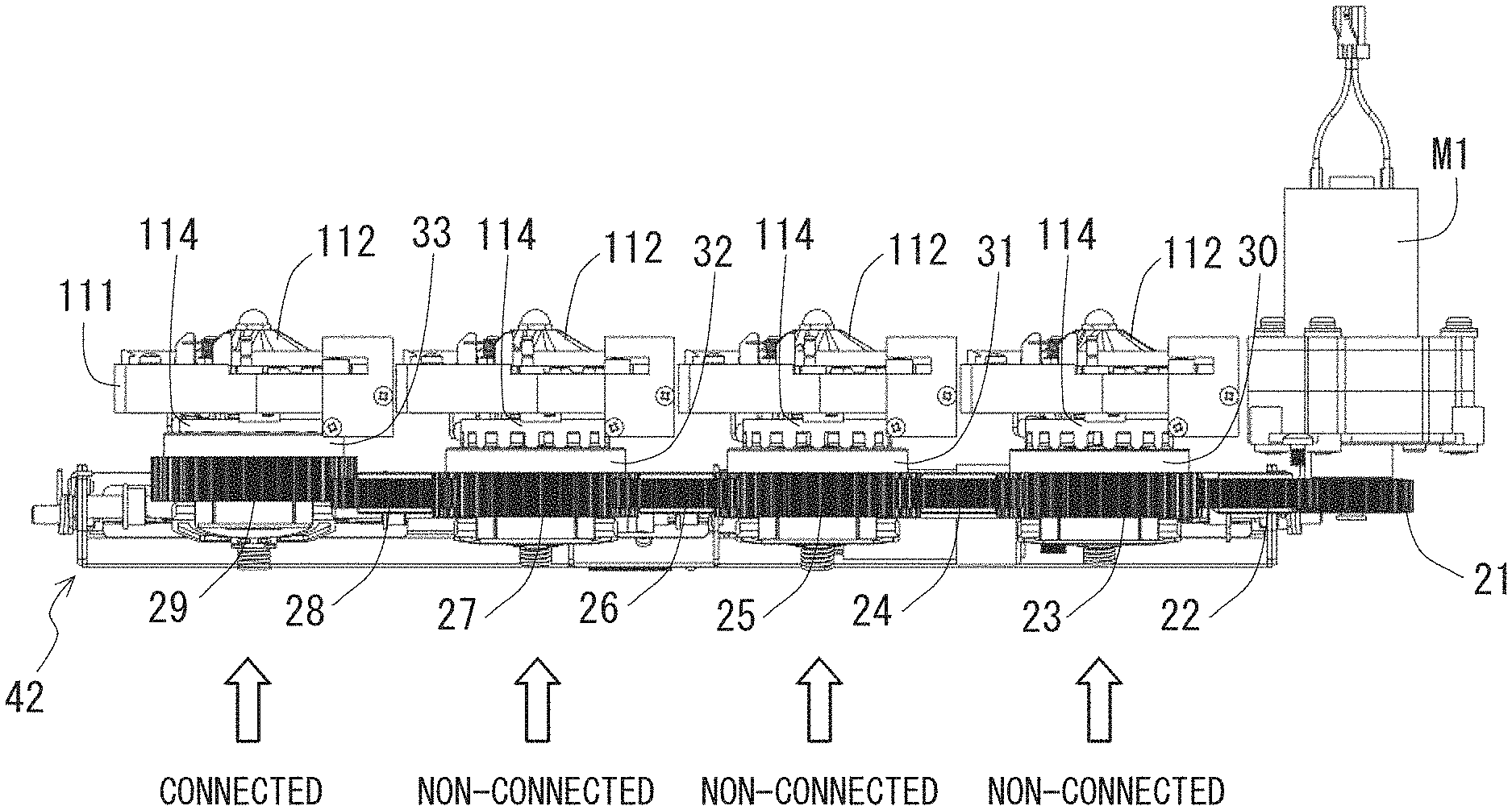

A multi-unit coin ejection apparatus that drives selectively coin ejection units using a single motor is provided, which eliminates a selectively coin-emitting mechanism such as a shutter provided in each coin ejection unit. Coin ejection units are selectively driven by switching a destination of a driving force of a first motor using a switching unit. The switching unit has first coupling gears respectively provided for the coin ejection units, second coupling gears engageable with the corresponding first coupling gears, and a coupling gear displacement mechanism configured to displace the second coupling gears between a connection position and a non-connection position. The coupling gear displacement mechanism is operated in response to an instruction such that a designated one of the second coupling gears is disposed at the connection position and a remainder of the second coupling gears is/are disposed at the non-connection position in accordance with the instruction.
