Ice maker with specific coupling of a driving unit with a storage container, and household cooling appliance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 5, 2022
Grant Date -
Jul 8, 2021
app pub date -
Jan 3, 2020
filing date -
Jan 3, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance

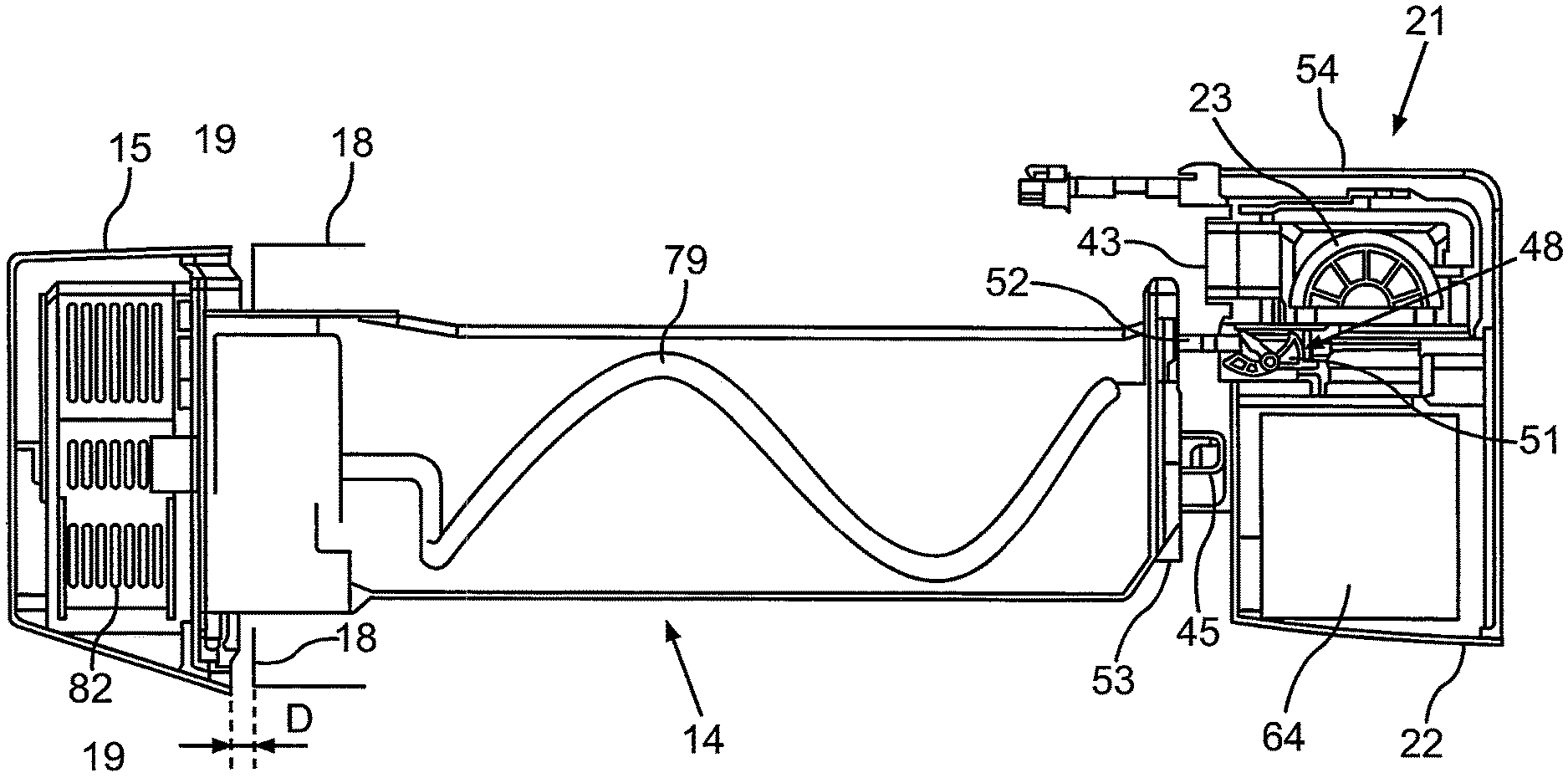

Abstract
An ice maker for mounting into a household cooling appliance, comprising: a storage container for ice comprising a rear wall and an opening, which is accessible from the top, a coupling extension, which is arranged on the rear wall and extends towards the rear, a driving unit comprising a drive housing and a closing aid arranged in the drive housing for locking of the storage container in a closed end position, wherein the drive housing comprises a front wall, at which an insertion opening of the closing aid is arranged so that upon inserting of the coupling extension into the insertion opening the coupling extension couples with the closing aid and by the closing aid viewed in the depth direction of the ice maker said coupling extension is pulled into the locking position towards the rear.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- F25C Class
- 154 Applications Filed
- 106 Patents Issued To-Date
- 68.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25C Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 5, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 5, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 5, 2034 |
