Lever actuated latch assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 5, 2022
Grant Date -
Oct 17, 2019
app pub date -
Apr 12, 2018
filing date -
Apr 12, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

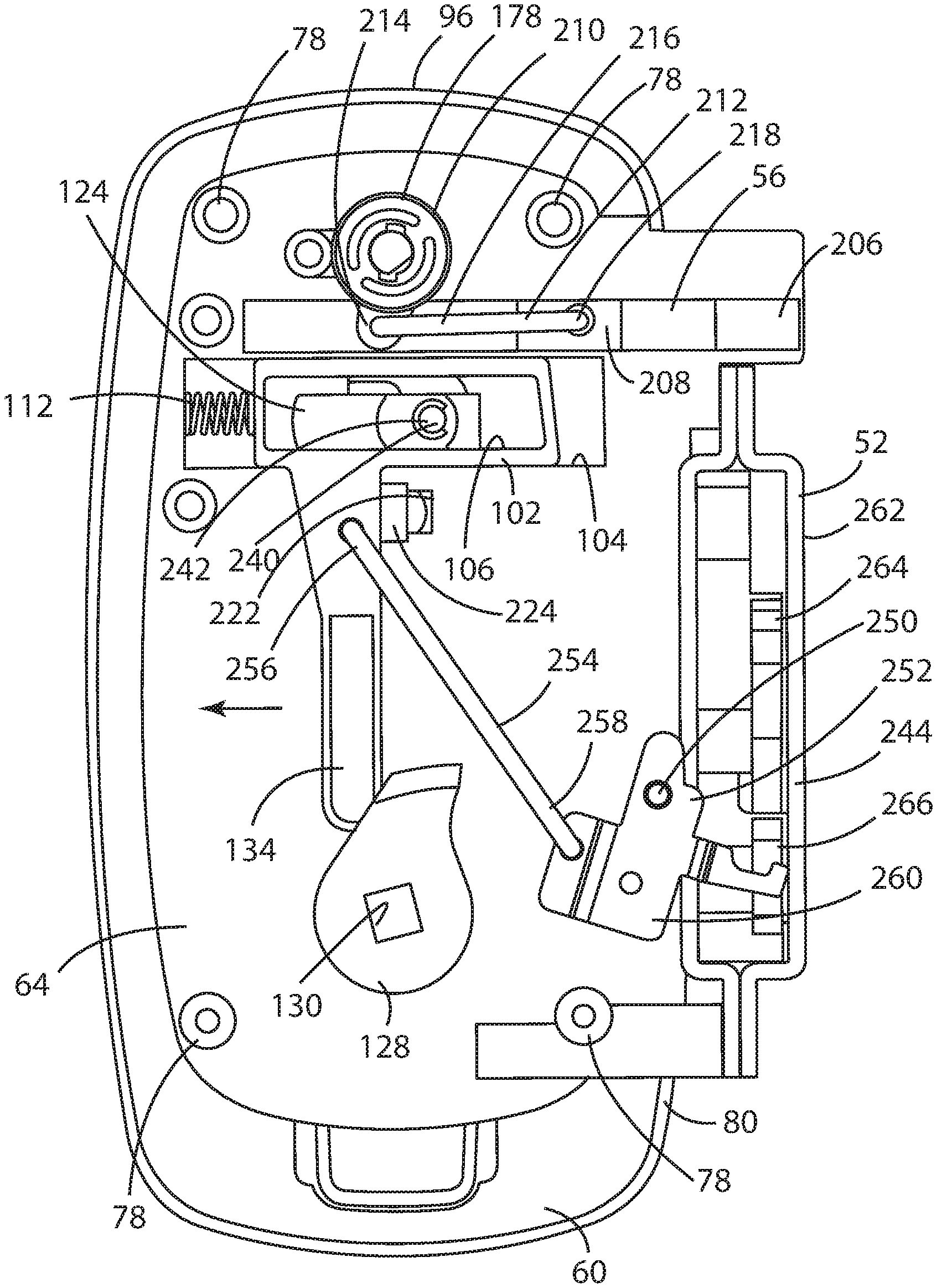

A latch assembly comprises an outside housing, a door latch, an external lever handle, a plunger, a resilient member, and a handle cam. The handle cam comprises a cam surface juxtaposed against and in sliding relation with a plunger cam surface. The plunger is maintained in the latched position when the external lever handle is in the retracted position by the resilient member, whereby an entry door cannot be unintentionally shifted from the closed position, and the plunger is displaced from the latched position to the unlatched position when the external lever handle is displaced from the retracted position to the extended position by the cam surface of the handle cam bearing against the plunger cam surface, whereby the entry door is free to be shifted from the closed position to the open position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- E05B Class
- 1226 Applications Filed
- 881 Patents Issued To-Date
- 71.86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 5, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 5, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 5, 2034 |
