Control system for internal combustion engine, and internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jun 28, 2022
Grant Date -
Oct 15, 2020
app pub date -
Apr 7, 2020
filing date -
Apr 7, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

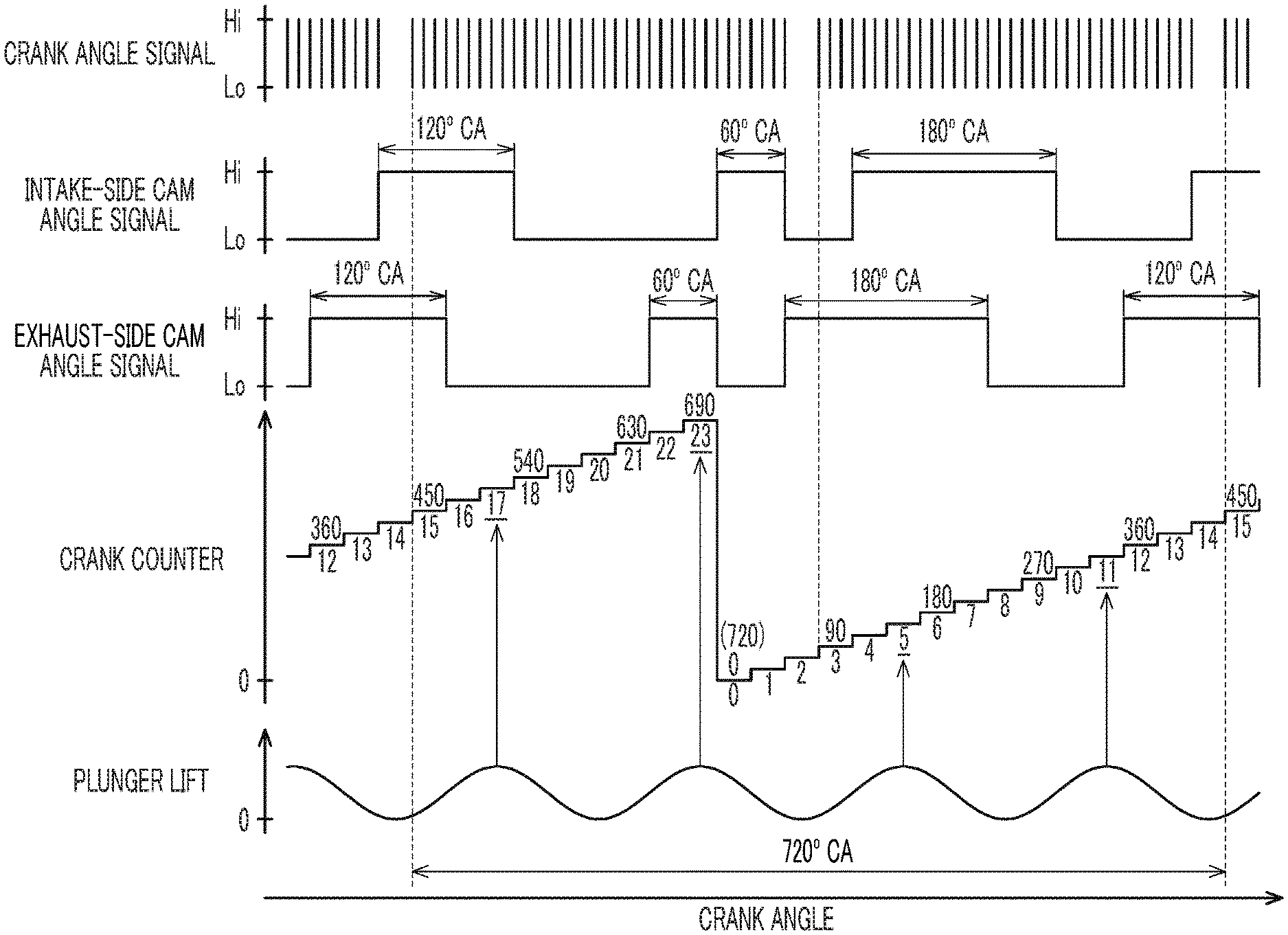

A control system includes a controller. The controller counts the number of driving times of the high pressure fuel pump, which is the number of the reciprocating motions of the plunger based on a crank counter that is counted up at every predetermined crank angle. The controller stores a map in which a top dead center of the plunger is associated with a crank counter value, and store a crank counter value while an engine is stopped as a stop-time counter value. The controller calculates, referring to the map, the number of the crank counter values corresponding to the top dead center of the plunger between a crank counter value and the stop-time counter value, and set a calculated number as the number of driving times.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 66.05 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 28, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 28, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 28, 2033 |
